23
CHANGE OF DIRECTION
Position F: 90° RIGHT TURN
OPERATOR CONTROLS
MOVEMENT AND DRIVING.

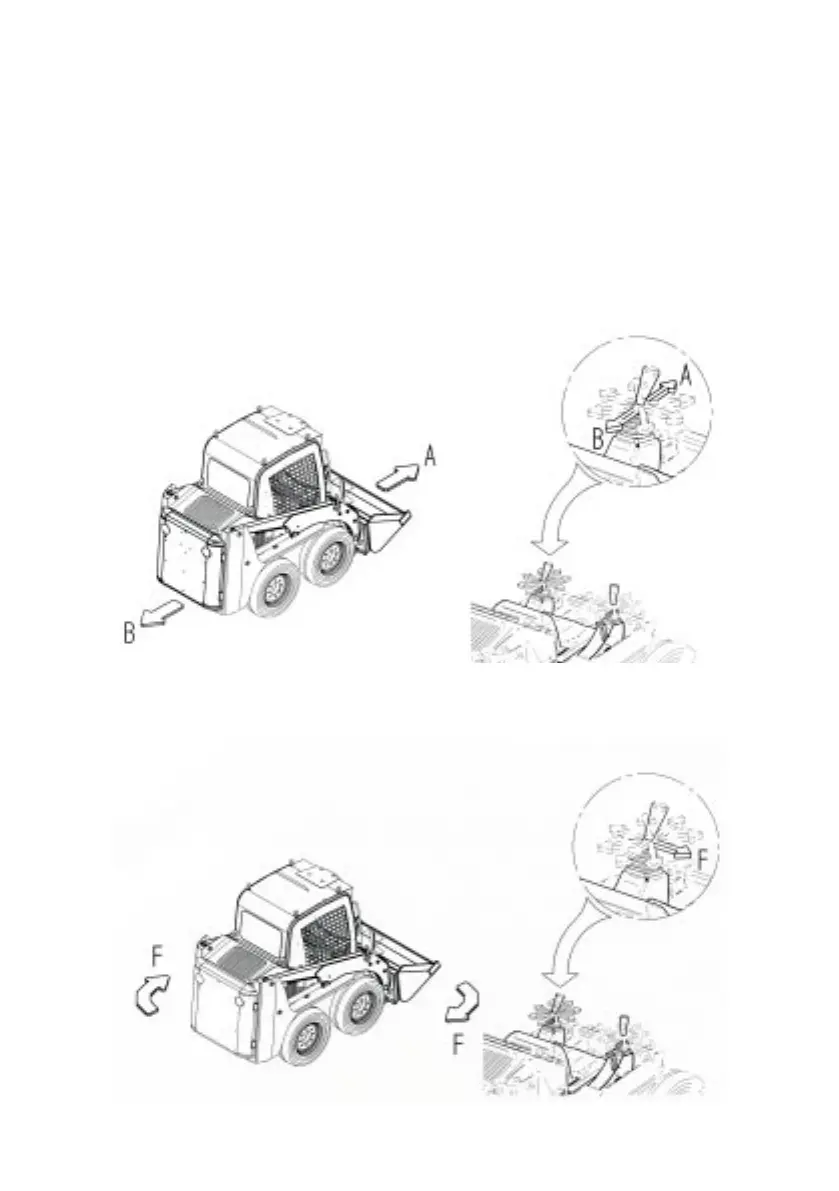

Traversing of the machine is controlled by the left joy-stick. The various joy-stick positions,
depending on the manoeuvre to be carried out, are represented below.
STRAIGHT LINE MOVEMENT
Position A: FORWARD movement
Position B: REVERSE movement (an acoustic safety device is activated)
