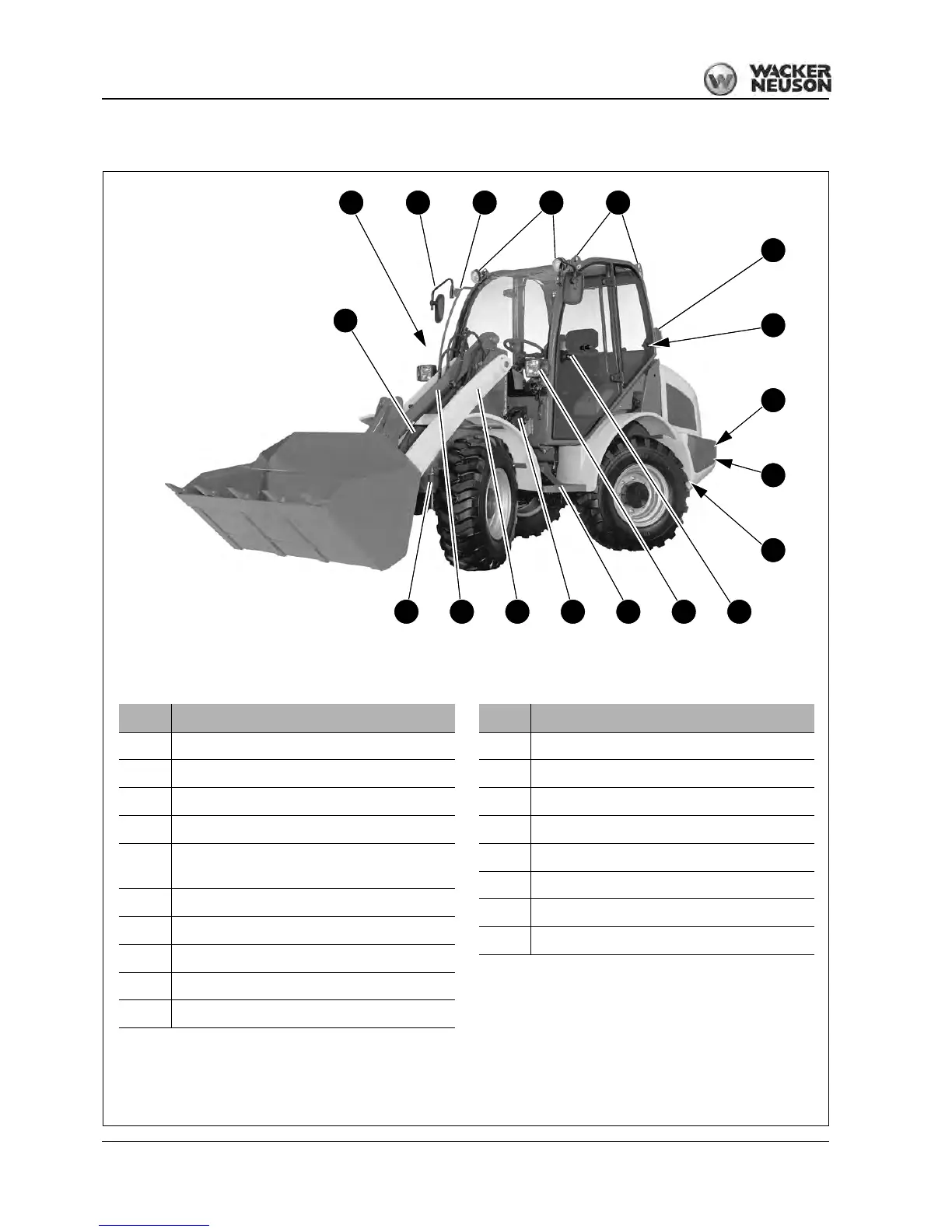

Fig. 1: Machine outside views
Pos.
Description
1
Service flap (fuses, relays, recirculated air filter)
2
Rearview mirror
3
Handle
4
Working lights
5
Eye hook for removing the cab only
(may not be used for crane-lifting the machine.)
6
Brake, rear and turn indicator lights
7
Door arrester
8
Towing facility
9
Reflectors
10
Rear eye hook for loading/tying down the machine
11
Door handle
12
Headlight with turn indicator
13
Access
14
Wheel chock
15
Loader unit
16
Tilt cylinder
17
Front eye hook for loading/tying down the machine
18
Lift cylinder
Pos.
Description
521 3 4
9
10
8
151617 111213
7
6
18
14
