W 890 Flexio

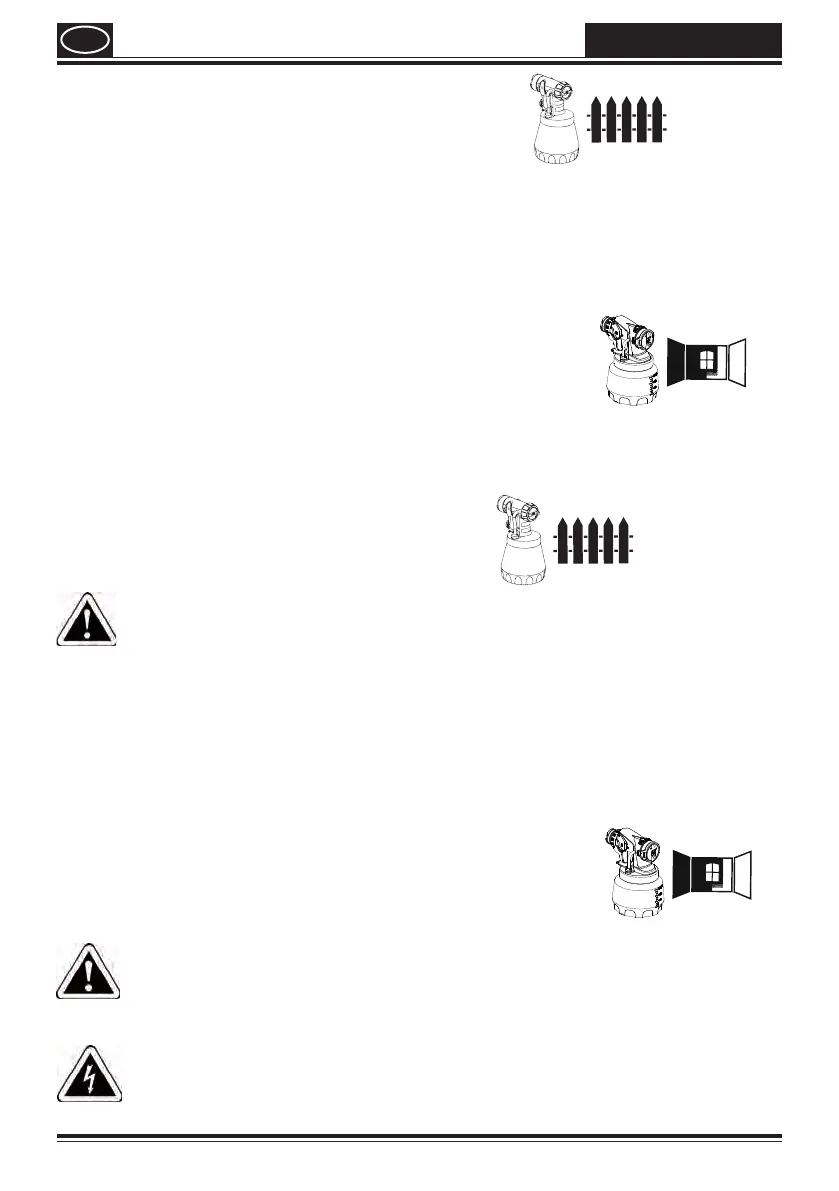

12. Adjusting the Material Volume
(Standard spray attachment)
Set the material volume by turning the regulator on the trigger guard of the spray gun.
(Fig. 7, 3)
lower material volume  turn anti-clockwise (-)
higher material volume  turn clockwise (+)
13. Adjusting the Material Volume
(Wall Extra I-Spray spray attachment)
The volume of material can be set by turning the material volume control (Fig. 8, 1) in
steps from 1 (minimum) to 12 (maximum).
14. Selecting the Spray Setting
(Standard spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 9, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 10 A = vertical at jet  for horizontal surfaces
Fig. 10 B = horizontal at jet  for vertical surfaces
Fig. 10 C = circular jet  for corners, edges and hard-to-reach surfaces
12. Selecting the Spray Setting
(Wall Extra I-Spray spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
2 dierent spray jet shapes can be set by turning the air cap (g. 11, 1)
Tighten the union nut (Fig. 11, 2) fully so that no paint is able to penetrate
the device. Check regularly whether the union nut has worked loose during
operation.
