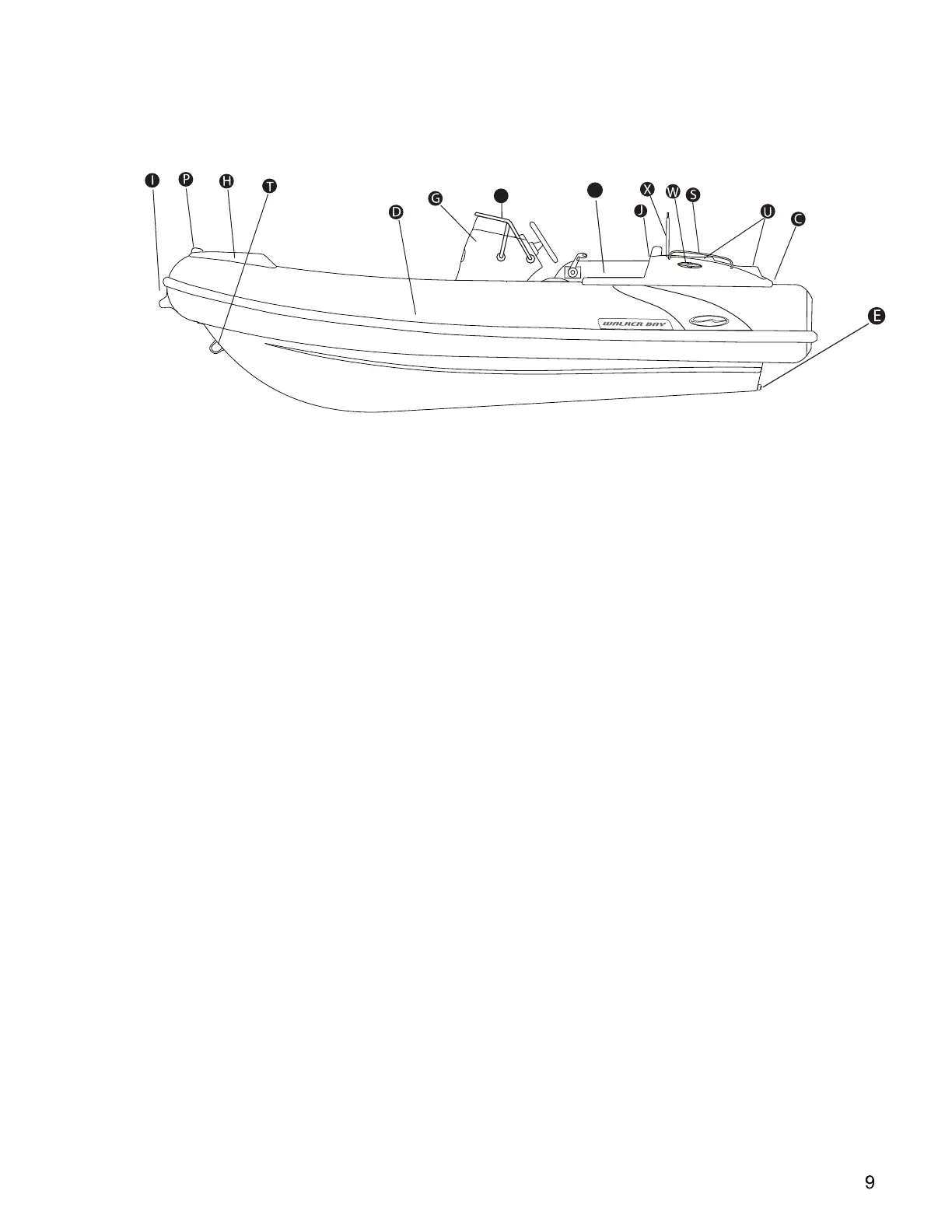

YOUR BOAT - TYPICAL FEATURES AND DECK PLANS
Generation 450 shown.
Actual features and deck plan will vary by model and year of boat and are subject to change witout notice.
*Replace capacity and warning labels if they become damaged, faded or illegible.
For reordering and replacement of labels contact Walker Bay
Customer Service.
®
MATERIALS
Walker Bay
®
uses materials and fabric from the world’s most respected manufacturers. We take extra care in our
construction to create a line of boats you can depend on.
ORCA CSM
®
Walker Bay uses the finest ORCA® CSM material available. Four layers of calendared sheets offer
guaranteed air-tightness and optimal adhesion of rubbers. This combination of materials provides improved resistance
against weathering, chemicals and abrasions. The tubes are bonded using a three-layer gluing process with all seams
internally and externally butted for maximum reliability.
PREMIUM FIBERGLASS - Walker Bay
®
uses top quality FRP (Fiber Reinforced Polymer) to build a hull that is both
stiff and strong in tension and compression, which is important to the performance of the boat. A fine glossy gelcoat
not only creates a glossy, high-lustre, ultra-smooth finish, but provides maximum durability as well.
A - Fuel Tank Cap
B - Deck Floor
C - Transom
D - Rub Rail
E - Drain plug
F - Motor Mount
G - Center Console
H - Step
I - Hauling Handle
J - Davit Lifting Points
*K - Capacity Label
L - Hull ID (CIN) Number
M - Stern Storage Compartment
N - Valves (3-5 depending on model)
O - Handles (not for tying or davits)
P - Navigation Lights (red and green)
Q - Navigation Light Mount (for 360
o
white light)
R - Seats, Cushions and Under-seat Storage Compartments
S - Stainless Steel Hand Rails
T - Bow Eye for Towing
U - Stern Steps
V - Stern Boarding Ladder
W - Pop-up Cleats
X - Retractable Ski Post
Y - Console Handrail
Z - Permanent and Retractable Cup Holders
