Walker T25i User Manual

82
Maintenance Instructions REPLACING/REPAIRING
Hydrostatic Ground Drive Belt
1. To remove the hydrostatic ground drive belt:
a. Raise the spring-loaded belt tightener arm
and idler pulley to relax belt.
b. Slide belt off pulleys, then release the idler.
Transmission
Drive Pulley
Hydrostatic
Ground Drive Belt
Jackshaft
Spring
Idler Pulley
Belt Tightener Arm

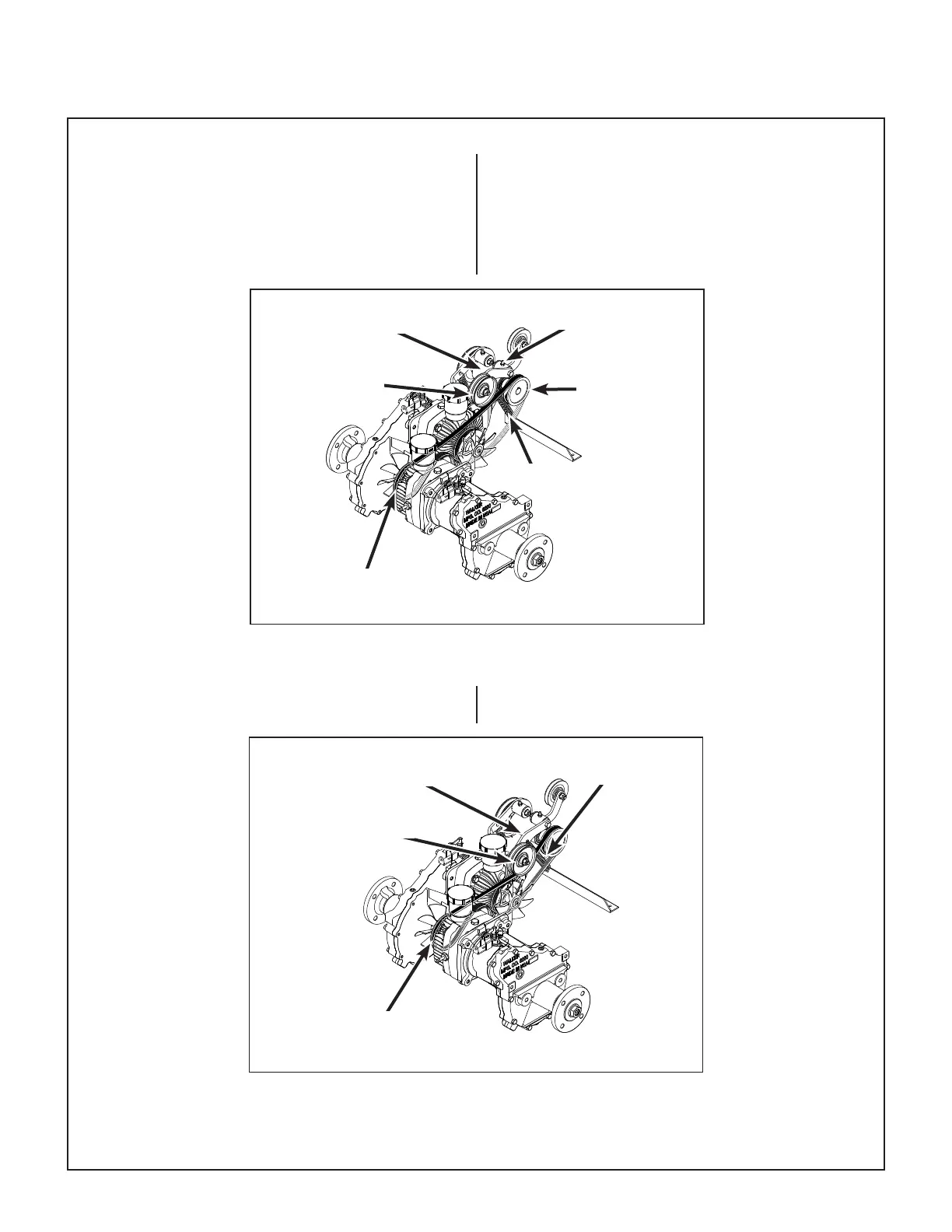

Hydrostatic Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the hydrostatic
ground drive belt.
Hydrostatic Ground Drive Belt Assembly (Engaged)
Hydrostatic
Ground Drive Belt
Belt Tightener Arm
Idler Pulley
Spring
