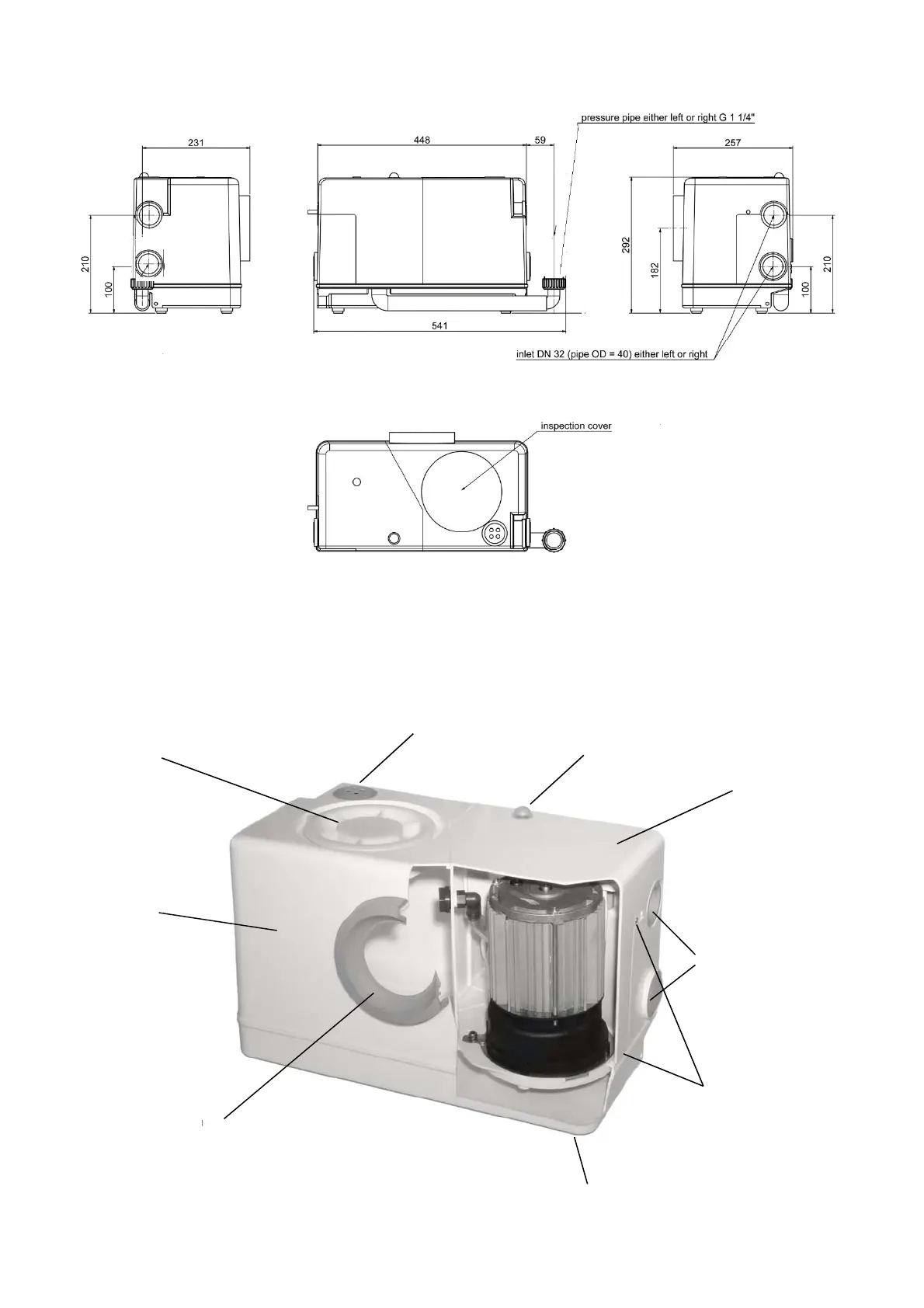

Figure 1: Dimensions
Figure 2: Cut-away view
Cut-away view through the cover showing the dry mounted pump and motor unit, mounted on a sealed gas and water-tight
collection tank, and the pan connection on the side of the tank.
Sealed lid
Dry mounted pump and
motor unit
Toilet pan connection
Gas and watertight
collection tank
Pump cover
Manual Run / Reset
Button
Tank Vent provided with Carbon / Use this port in
case need to vent outside via vent pipe. Do not
use any air admittance valve e.g. Hunter valve
2 off 40mm ports to
connect 40mm waste pipe
from WHB, Shower / Bath,
Sink, etc.
Identical 2 off 40mm Port
are provided on the other
side of the unit
2 off fastening
safety screws. Undo these
to remove pump cover.
Ensure Power supply to
pump is switched off &
plug is removed
