Flow Control Valve:
This dial sets the fl ow control valve that
controls the amount of oil to the boom swing
circuit. Turn the dial clockwise to reduce the
amount of oil fl ow and slow the speed of the
boom swing. Turn the dial counterclockwise
to increase the speed of the boom swing.

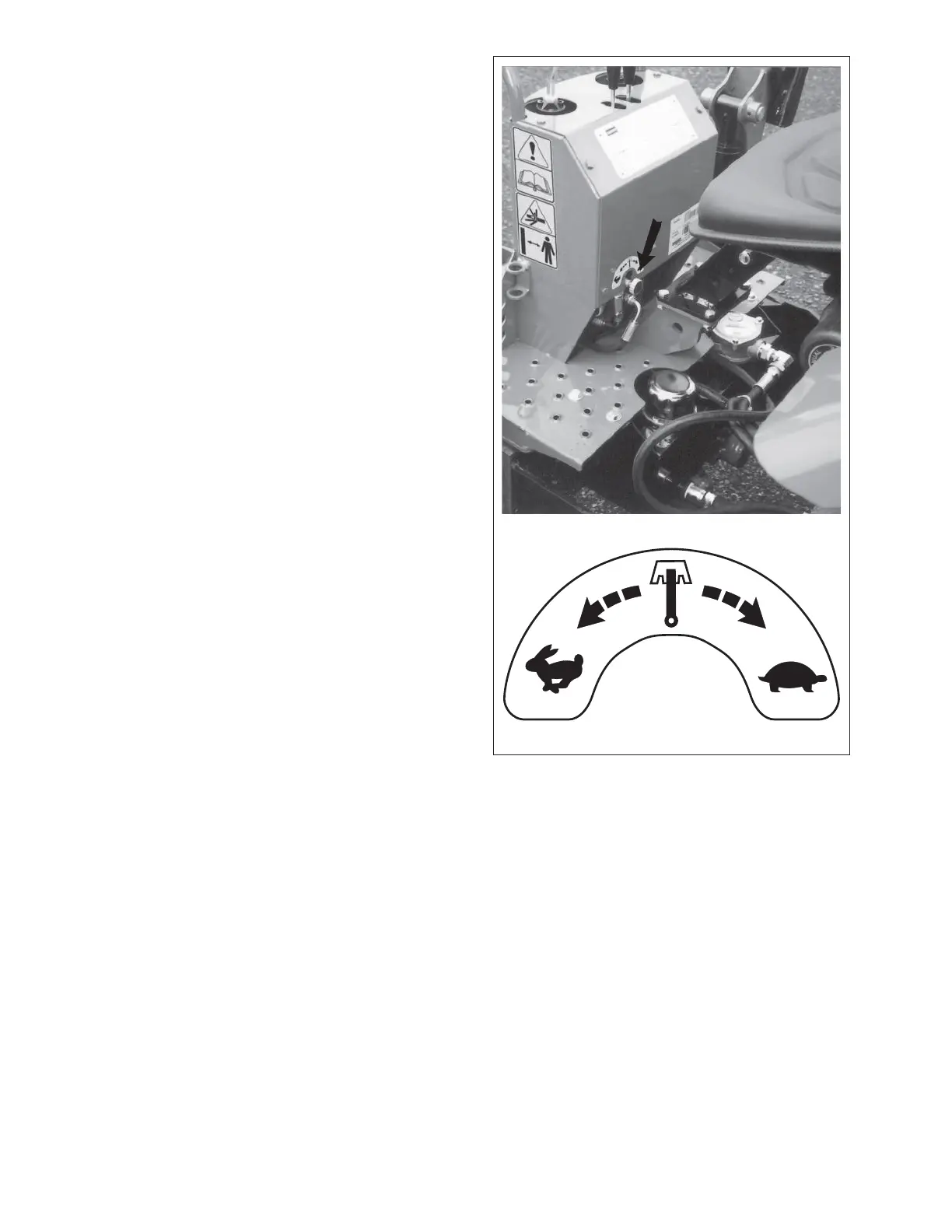

Fig. 5 FLOW CONTROL (Boom Swing Speed)
Flow Control Divider
Flow Control Graphic
