22
6. Remove drawbar anchor bracket.
7. Mount anchor bracket to the tractor draw-
bar.
8. Tighten fasteners to their specified
torque.
9. Check that the center link and support
strut position the frame 13 inches (330mm)
above the ground.
a. Mount backhoe to tractor.
b. Use the adjusting holes in the
center link to provide the required
frame height. Tighten fasteners to their
specifi ed torque.
c. Use the turnbuckle to set the length of
the support strut. Use the jam nut to
lock the turnbuckle.

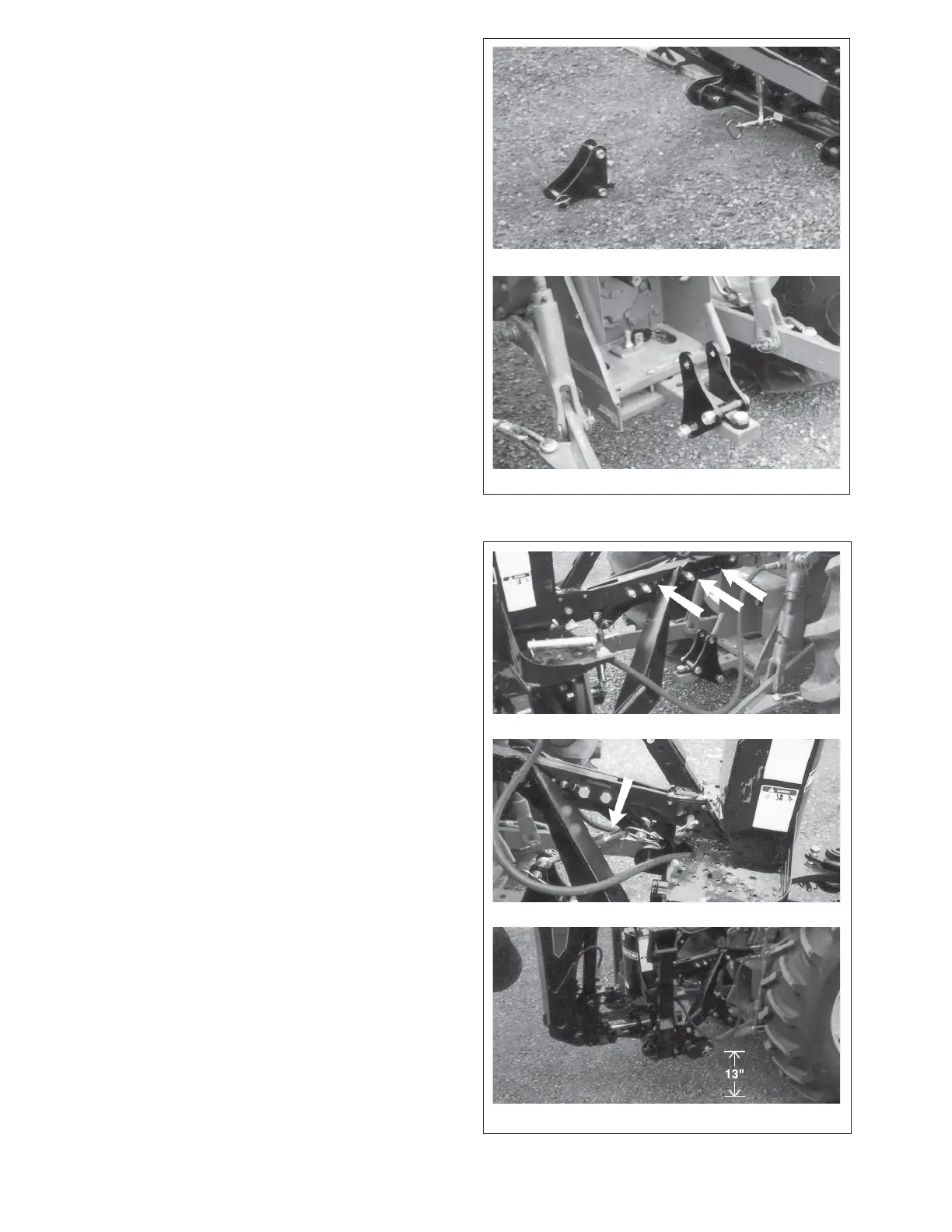

Fig. 7 ANCHOR BRACKET
Bracket
Installed
Adjusting Holes
Turnbuckle
Frame Height
Fig. 8 LENGTHS
