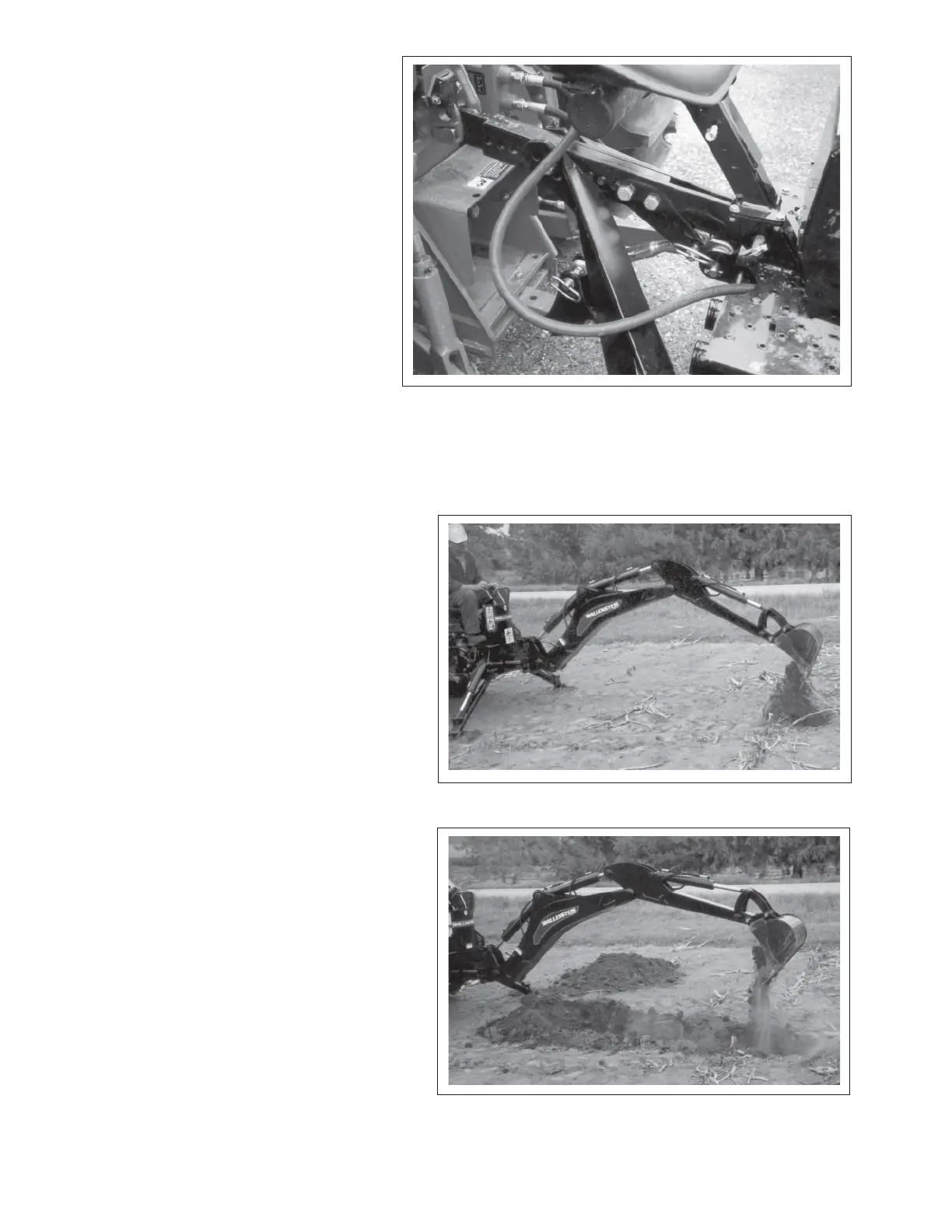

Fig. 55 MOUNTING GEOMETRY
Fig. 56 STABILIZERS
Fig. 57 BACK-FILLING
25. Operating Hints:
a. Review work site before position-
ing backhoe and starting work.
Stay away from utility lines and
obstructions.
b. Attach stabilizer bracket between
top link anchor and frame. At-
tach the support strut between
the frame and drawbar to secure
mounting linkage geometry. The
frame should be 13 inches (330
mm) above the ground.
c. Do not allow untrained personnel
to operate the machine.
d. Do not operate machine when
unauthorized people are in work
area. Stop until they leave.
e. Operate the machine only while sitting
in the tractor or backhoe seat. Never
operate controls while standing on the
ground.
f. Extend stabilizers and support ma-
chine to carry weight and loads.
g. Do not carry personnel on the boom or
bucket.
h. Do not dig under stabilizers to prevent
falling into excavation.
i. Keep hydraulic components and fi t-
tings on tight and in good condition.
