5.1.3 SERVICING INTERVALS
The period recommended is based on normal
operating conditions. Severe or unusual condi-
tions may require more frequent lubrication or oil
changes.
8 Hours or Daily
1. Grease the pivot pins.
a. Bucket pivots.
b. Dipper / Boom pivots.
c. Boom pivots.
d. Steering cylinder pivots.
e. Left stabilizer.

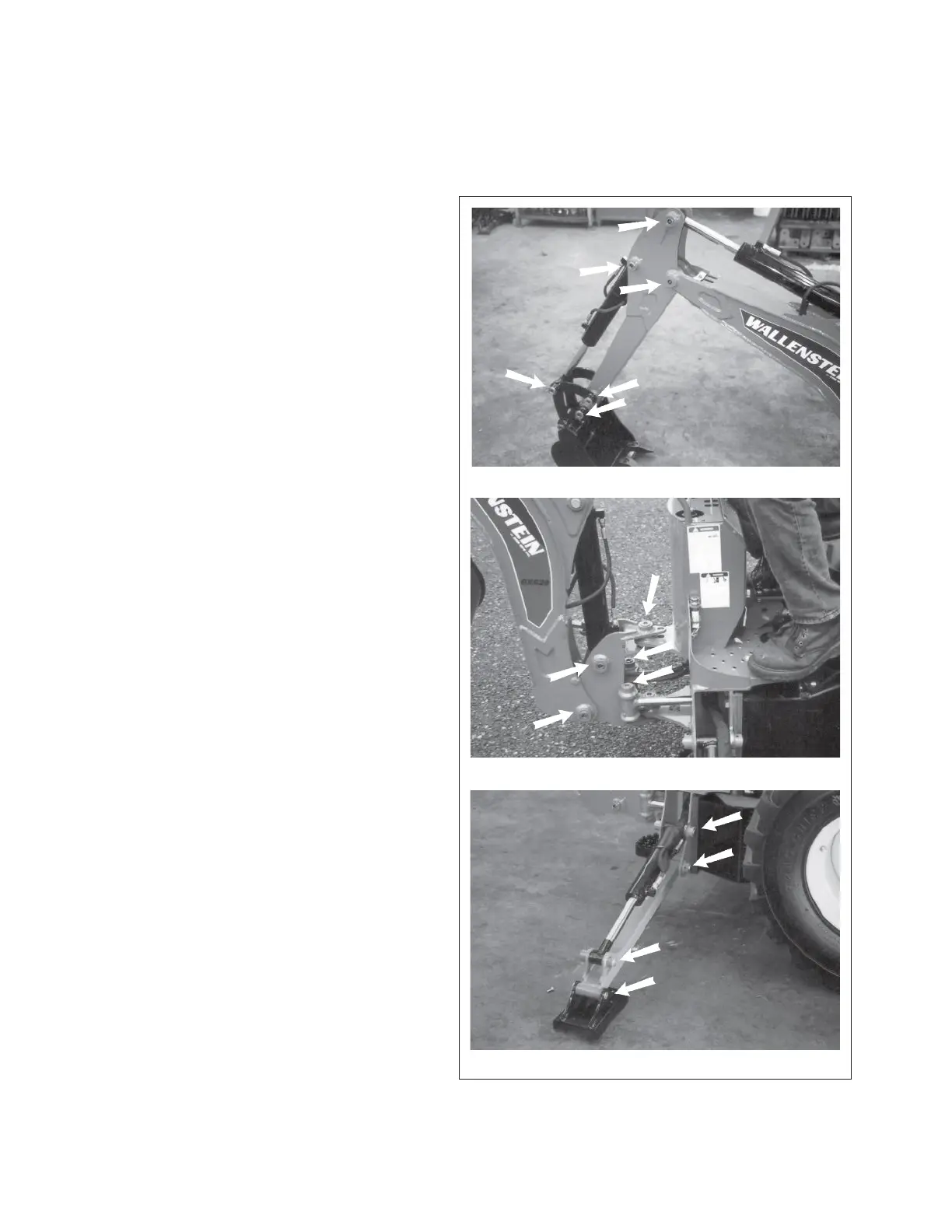

Fig. 62 PIVOT PINS
Dipper / Bucket
Boom Swing
Left Stabilizer
a
b
c
d
e
a
b
b
b
c
c
c
d
d
e
e
e
e
