Assembling Chain Saw Holder
Step 1
• Install the Guide Gusset Blocks (12) onto the Chain Saw
Pivot (3).
• Use three 1/4" x 1-1/4" Flathead Capscrews (13) and
1/4"NC Hex Locknuts (20) in each.
3
20
13
12

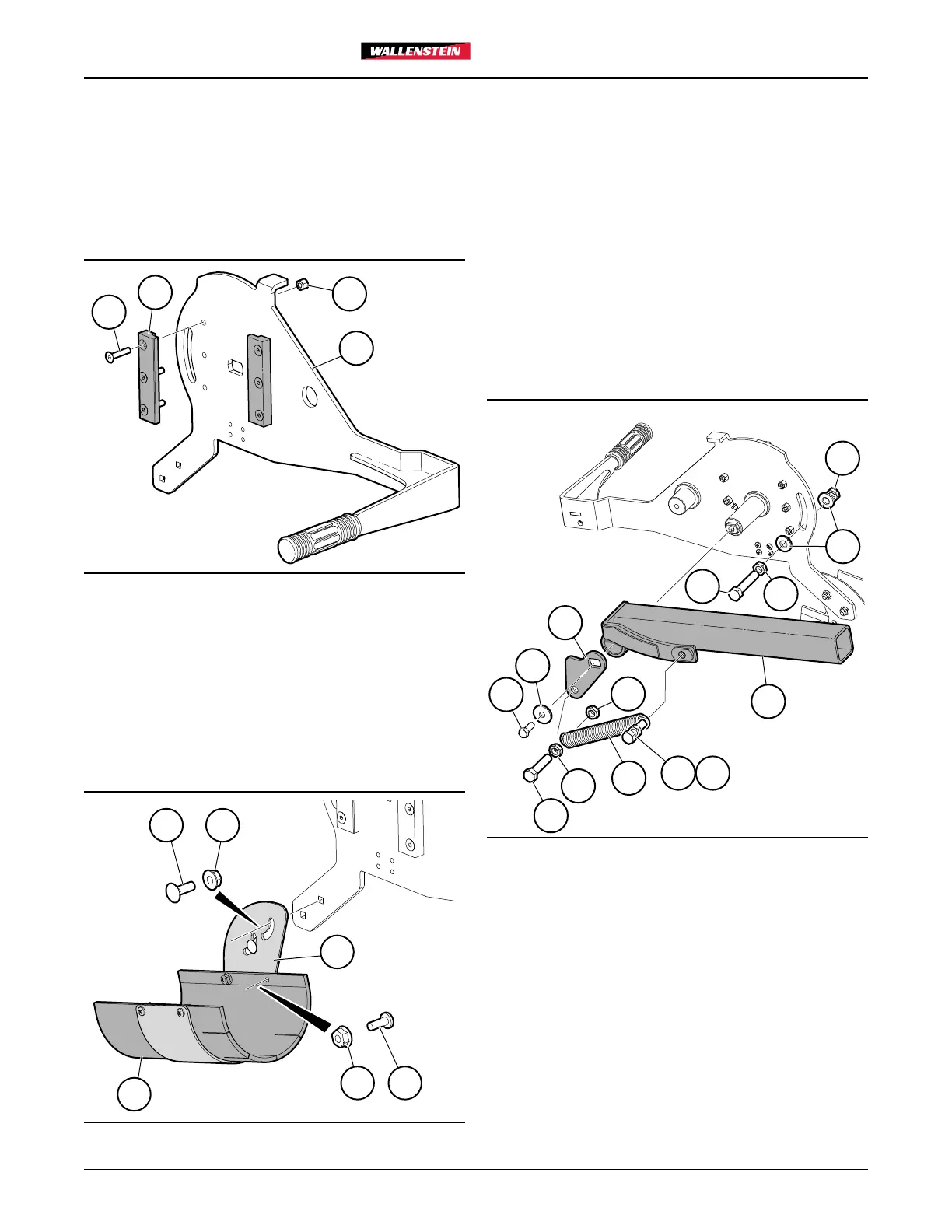

Fig. 1 – Install Guide Gusset Blocks
Step 2
• Install the Debris Chute (1) onto the Chain Saw Debris
Guard (16) using four Machine Screws #10NF (14) and
Serrated Locknuts#10NF (7).
• Install the Chain Saw Debris Guard onto the Chain Saw
Pivot Base with two 1/4"NC Carriage Bolts (10) and 1/4"NC
Serrated Locknuts (18).
10
16
7 14
1
18
Fig. 2 – Debris Chute
Step 3
• Slide Chain Saw Pivot Base (5) onto the longer shaft on
the Chain Saw Pivot. Place the keyed slot of the Pivot Stop
Washer (41) over the end of the shaft then secure with
Washer (15) and Hex bolt (37).
• Fasten Extension Spring (39) to the hole on the bottom end
of the Pivot Stop Washer (41) with Hex bolt (38) and Jam
Nuts (22) on each side.
• Fasten the other end of the Extension Spring (39) to Chain
Saw Pivot Base (5) with 1/2"NC x 1-3/4" Hex Bolt (40). Set
bolt position with Jam Nut (22).
• Install 1/2"NC x 2-1/2" Hex bolt (29) as a stop into the
slotted hole in Chain Saw Pivot plate. Place a washer (17)
on each side with a Jam Nut (22). Adjust the position of the
stop once assembly is complete.
40 22
5
29
22
22
17
41
15
37
22
39
22
38
Fig. 3 – Chain Saw Pivot Base
