Walmart GFM00752C User Manual

Stock# BH17-092-099-59 / GFM00752C
Walmart Assembly Instruction
BHG 9*8.6FT Pergola

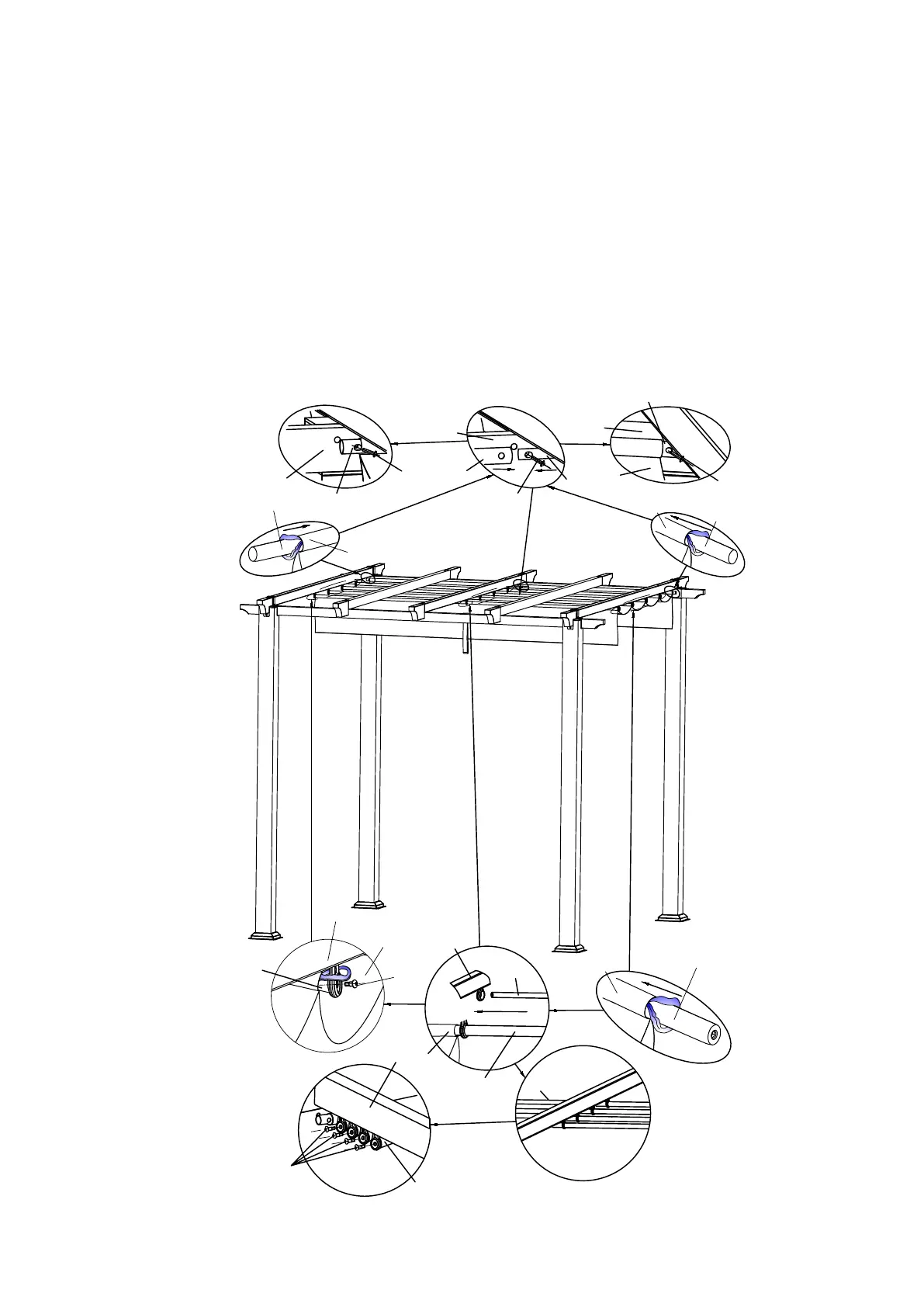

Step 4: Insert the left fabric hanger (F) and the right fabric hanger (G) into each side of
the slot at the end of the canopy. Attach the ends of the left fabric hanger (F) and the right
fabric hanger (G) to the back connector bar (A) using M6 x 35 bolt & washer (CC) .
Insert the fabric hangers (H) into the the remaining slots of the canopy through the
wheels on the center bars (E) and outer bars (D). Attach the fabric hangers (H) to the
wheels on outer bars (D) using M6x18 bolt (BB).
Tighten all bolts with Allen wrench (FF).
Pull the elastic cord at the end of the canopy around the wheels.
E
H
H
A
F
A
F
G
CC
CC
BB
D
H
D
K
BB
H
K
G
A
CC
K
G
K
F
H
K
H
K
