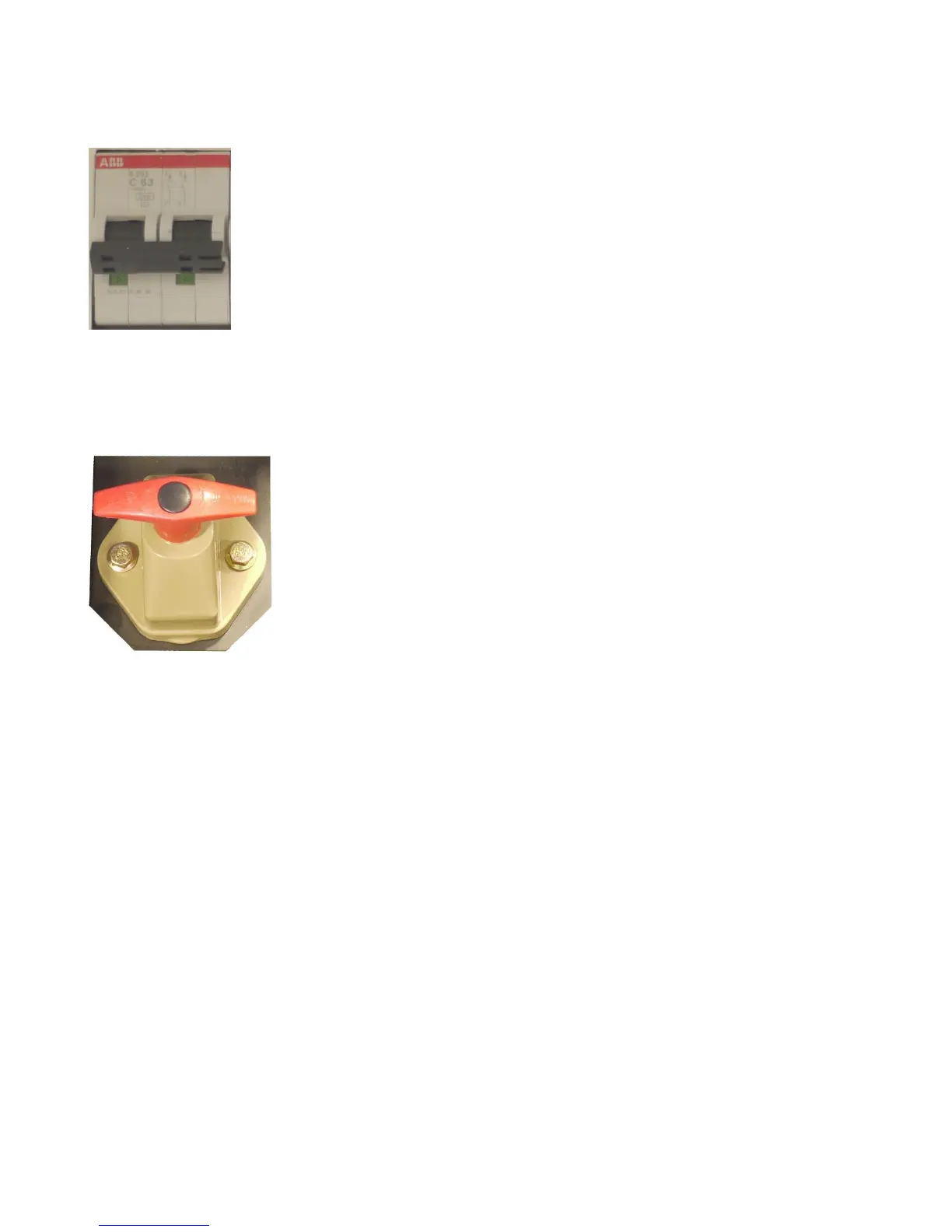

Main Circuit Breaker
Located in the Connection Panel near the receptacles.
The Main Circuit Breaker is present to protect the AC alternator windings from
overload damage. When the circuit breaker is in the ON position, current can flow
from the alternator to the AC output connections. When in the OFF position, no
current or voltage will be present at any AC output connection.
This circuit breaker may switch OFF during operation if it detects an overload
condition.
Battery Disconnect Switch
Located inside the engine compartment on the generator right side.
Disconnects the cranking battery from all 12VDC systems, including the
controller and relays. This switch must be ON for the Controller to operate and
for starting the engine. Shown in the OFF position here.
