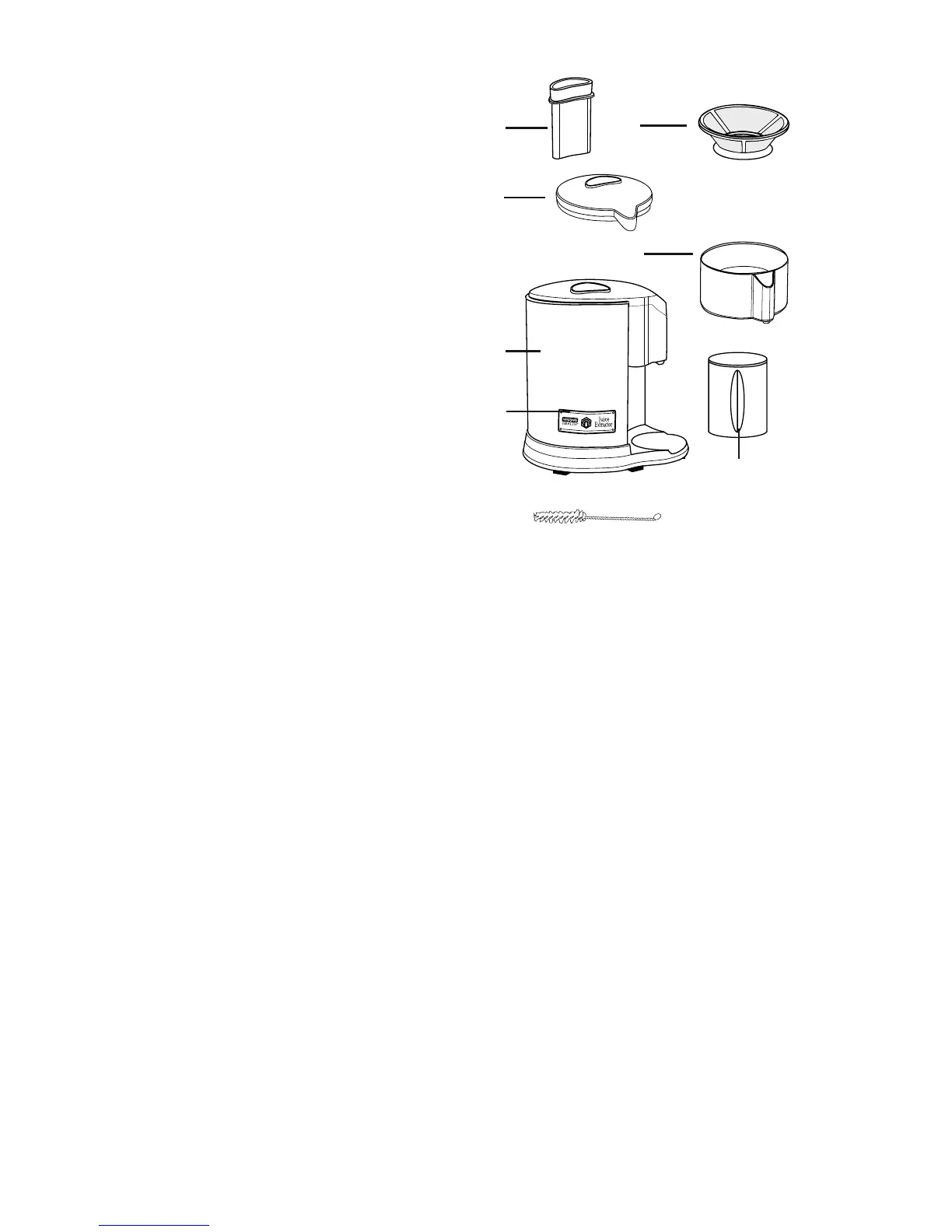

PARTS
1. Pusher
2. Feed tube and cover
3. Strainer basket with
shredder disk
4. Pulp collector with juice spout
5. Motor housing
6. Power switch
7. 32 oz. stainless steel
juice collector cup
8. Cleaning brush for
strainer basket
IMPORTANT UNPACKING INSTRUCTIONS
Remove your new Waring Pro
®
Juice Extractor from the
box. With the unit facing you, unlock cover by turning
cover clockwise.
• Removecoverandtakeoutanypackagingmaterial
used to protect the shredder disc (part 3).
• Liftandremovestrainerbasket(part3).
• Unlockandremovepulpcollector(part4)byturningit
clockwise, then remove.
ASSEMBLY
• Fitthepulpcollectorbowl(4)ontopofthemotor
housing (5) and lock into place.
• Placestrainerbasketwithshredderdisk(3)insidepulp
collector (4) over drive coupling.
•Placecoverandfeedtube(2)overpulpcollectorbowl 
(4) with the nose just left of the juice spout.
• Lockcoverandfeedtube(2)bytwisting
counterclockwise until it snaps shut and the nose lines
up with the juice spout.
1
2
3
8
7
6
5
4
