4
ELECTRIC UNDERFLOOR INSTALLATION

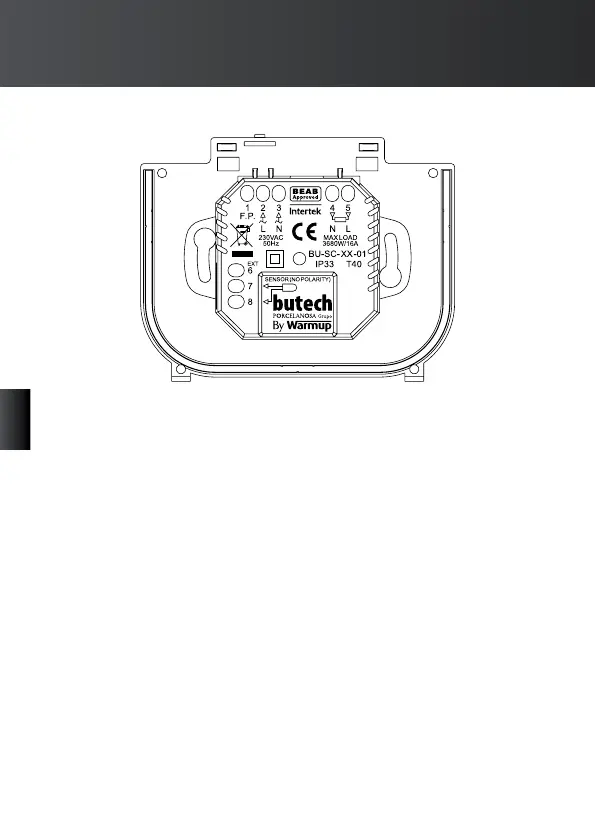

see numbering on diagram
2. Connect to Power Supply (Live – MAX 230V)
3. Connect to Power Supply (Neutral – MAX 230V)
4. Connect to heater(s) (Neutral – MAX 3680W/16 Amps)
5. Connect to heater(s) (Live – MAX 3680W/16 Amps)
7. Connect to 1st wire of oor sensor (colour not important)
8. Connect to 2nd wire of oor sensor (colour not important)
HYDRONIC UNDERFLOOR INSTALLATION
see numbering on diagram
2. Connect to Power Supply (Live – MAX 230V)
3. Connect to Power Supply (Neutral – MAX 230V)
4. Connect to wiring centre (Neutral if present – MAX 3680W/16 Amps)
5. Connect to wiring centre (Switch Live – MAX 3680W/16 Amps)
7. Connect to 1st wire of oor sensor (colour not important)
8. Connect to 2nd wire of oor sensor (colour not important)
EN
8GM Smart Controller
