STEP ONE - WINCH MOUNTING CON’T
To secure the winch, always use:
• A flat, secure mounting location at least 3/16 in. (4.8 mm) thick steel.
• 5/16 in. lockwasher x 2.
• 5/16-18 x 1in. long, hex head capscrew, Grade 5 or better x 2.
• Torque mounting bolts to 21 ft-lbs (28 Nm).

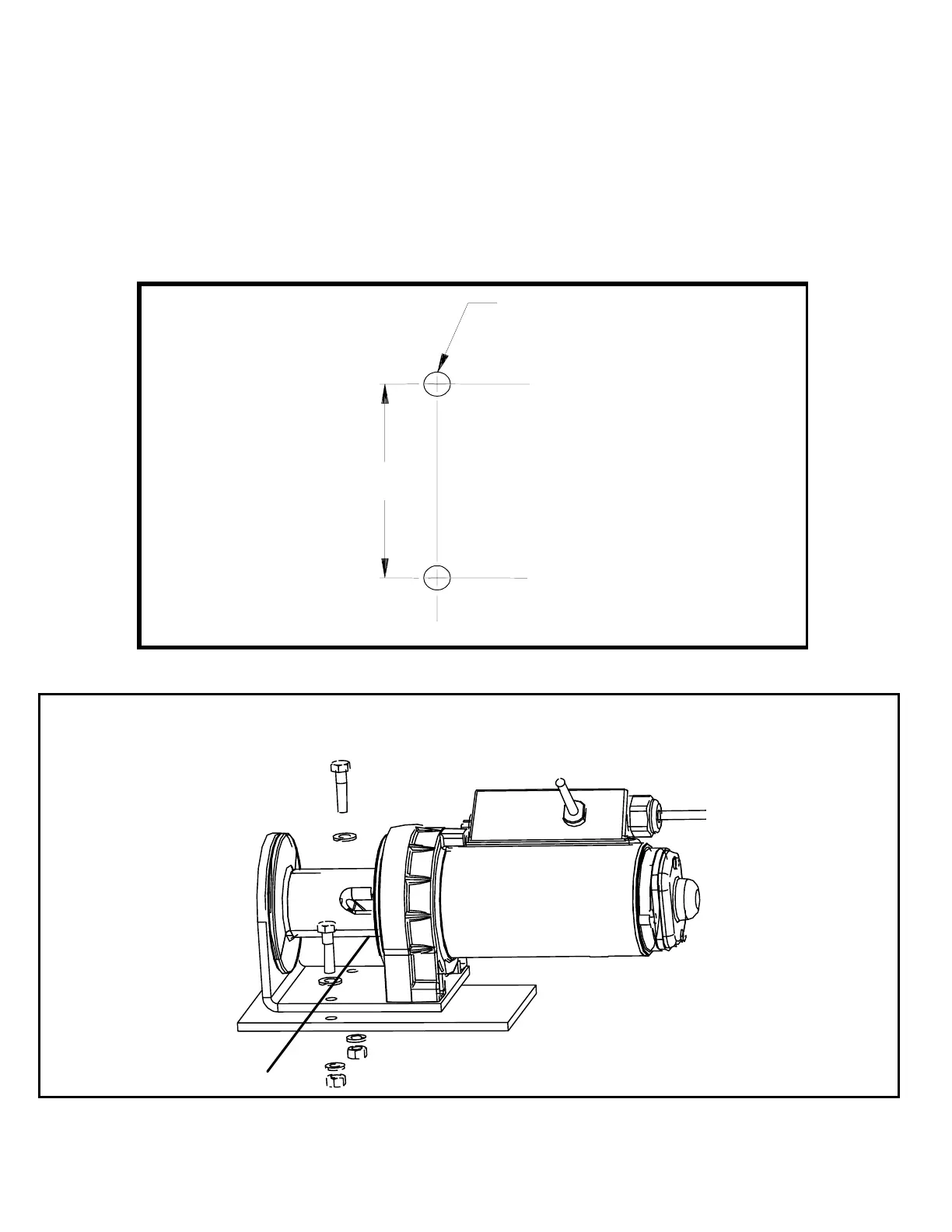

5/16" [7.94 mm] DIA (2 plcs)
3.1"
[78.7 mm]
Acceptable Mounting Position
Mounting plate hole
pattern
