WARN® INDUSTRIES PAGE 2 79968A3
I. Tools Required
• Ratchet
• Sockets: 13mm, 14mm, 15mm, 17mm, 24mm
• Box Wrenches: 13mm, 14mm, 16mm, 17mm, 18mm
• Allen Wrenches: 6mm
• Torque Wrench
III. Parts List
Part # Qty Description

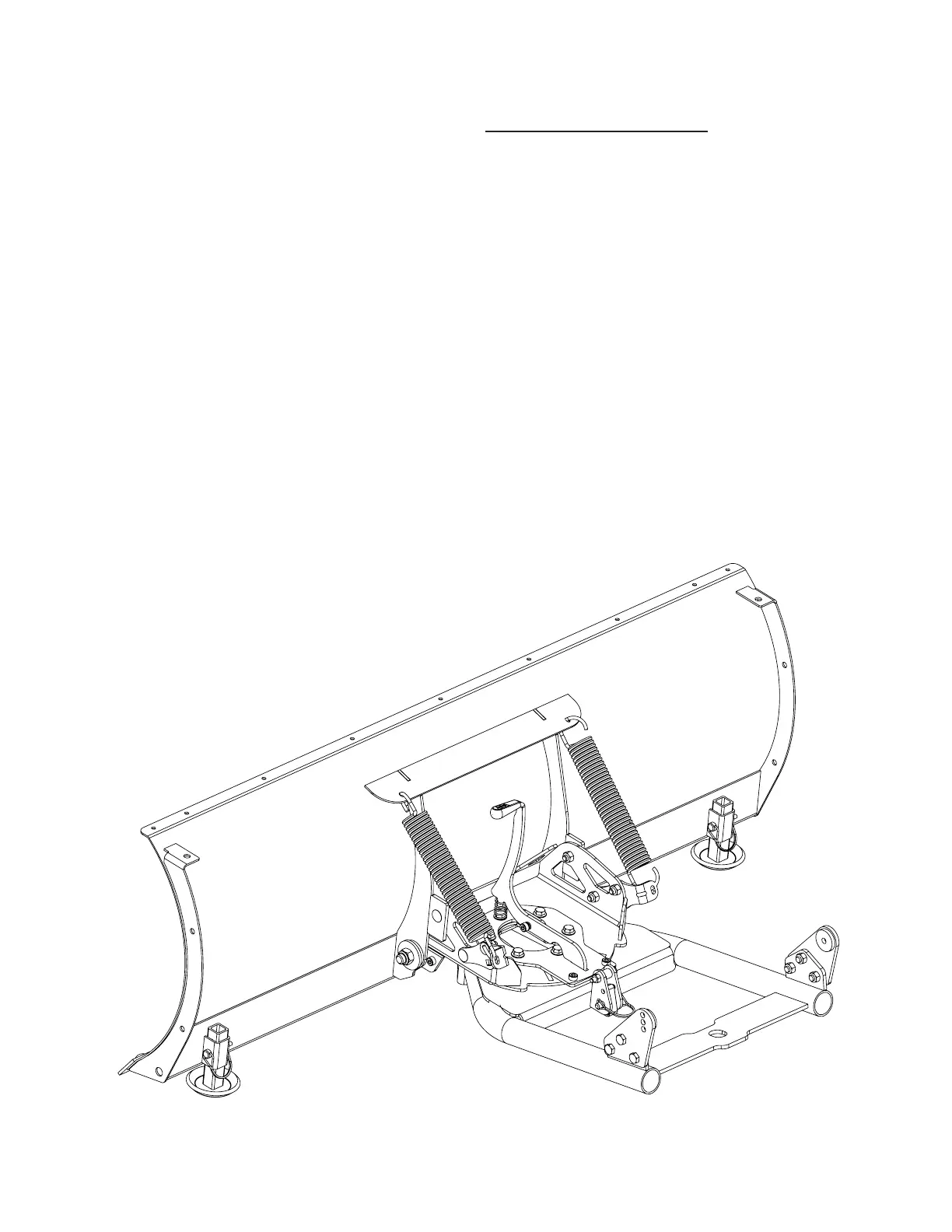

50” Straight Blade Kit (PN 78950)
80059 1 50” Plow Blade
80225 1 50” Wear Bar
54” Straight Blade Kit (PN 78954)
79537 1 54” Plow Blade
38734 1 54” Wear Bar
60” Straight Blade Kit (PN 78960)
80230 1 60” Plow Blade
71189 1 60” Wear Bar
Hardware Kit for all plows
79882 9* 10mm dia Carriage Bolt
69807 9* 10mm dia Nylon Lock Nut
84671 2 Heavy Duty Plow Spring
68820 2 Heavy Duty Plow Skid
25397 2 Skid Pin, with snap
* The 50” and 54” blades will only use 7 of these fas-
teners.
II. Torque Specications
Please use the recommended torque specications
when assembling this product unless otherwise speci-
ed in the instructions.
8mm diameter bolt and nuts: 12 ft-lbs (17 N-m)
10mm diameter bolt and nuts: 31 ft-lbs (42 N-m)
16mm diameter nut: 100 ft-lbs (136 N-m)
