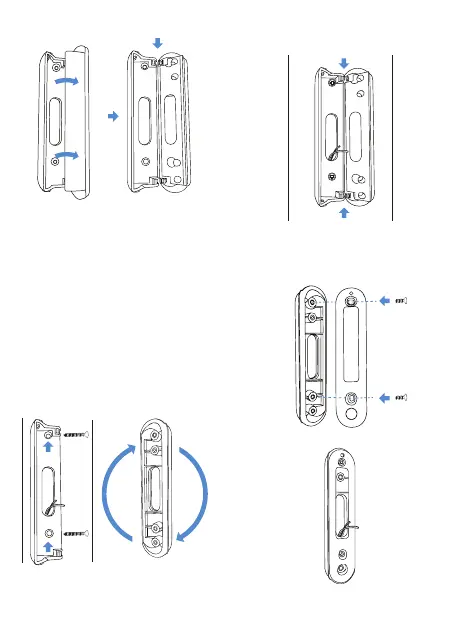

2. Pull apart the Horizontal Angle Mount.
3. Attach the mount to the wall using the long screws
and wall anchors provided for mounting. The drill
bit size is 1/8”. Use the silicone rings if you have an
uneven surface before mounting. Place the
silicone rings underneath the mount when
mounting.
4. Reattach the other part of the Horizontal Angle
Mount. Make sure that you hear a click sound
when you reattach the angle mount.
5. Install the doorbell backplate onto the Horizontal
Angle Mount with the short screws.
If your doorbell is hardwired: Make sure that the
doorbell wires come out through the opening at
the centre of the mount.
Note: You can also install the Horizontal
Angle Mount in a different orientation. All the
installation steps are the same, however, ensure
that the screw holes are aligned with the parts of
the doorbell.
Flip it upside down
