FD-30A
SECTION
2
DISASSEMBLY
2-1.
REMOVAL
Note:
Remove
the
parts
in
the
numerical
order.

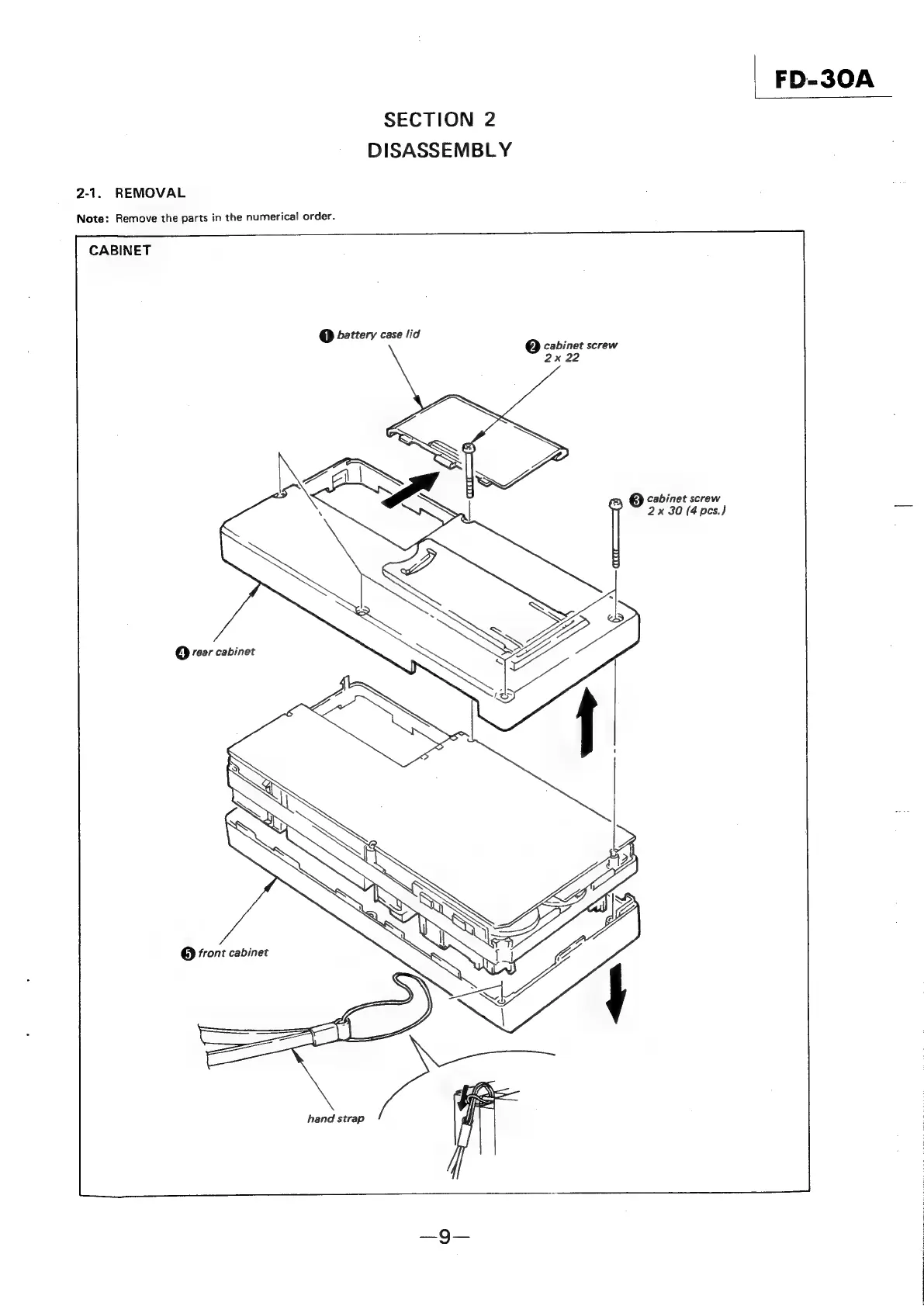

CABINET
@
battery
case
lid
Q@
cabinet
screw
2x
22
@
cabinet
screw
2x
30
(4
pes.)
N
Zp
Q
vear
cabinet
SS
(5)
front
cabinet
hand
strap
