DEPLOYING YOUR MOTOR
To deploy your Watersnake Venom motor from its stowed position you need to
loosen the depth collar and slide it up the shaft to the desired location and
re-tighten. Hold the motor head or shaft with one hand and depress the quick
tilt button or lever at the top of the mounting bracket with your other hand.
Then carefully rotate the motor into its deplyed position and set the desired
depth with the depth collar.

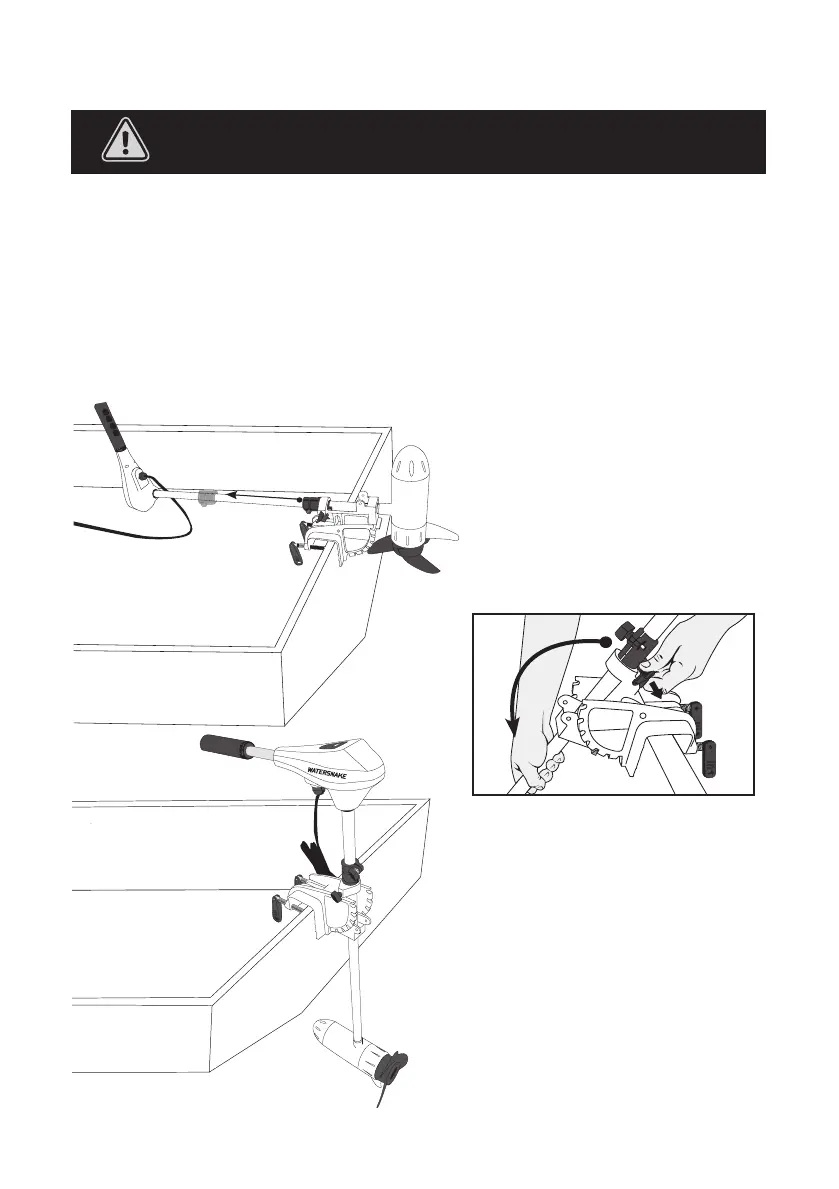

STOWED POSITION
DEPLOYED POSITION
2. DEPRESS THE QUICK TILT BUTTON
OR LEVER TO ROTATE THE MOTOR
CAREFULLY INTO ITS DEPLOYED
POSITION.
1. SLIDE DEPTH COLLAR UP THE
SHAFT TO THE DESIRED DEPTH
POSITION.
Watersnake Distribution Pty Ltd
accepts no liability for personal injury
or property damage caused while
deploying or stowing this motor.
PLEASE NOTE:
CAUTION: Please keep you fi ngers and hands away from all
hinge points and the propeller at all times.
