WaterTech MC-1 - Connecting Diverter Valve to Faucet; Option A: Outside Thread Faucet; Option B: Inside Thread Faucet

ENGLISH
3
START UP STEP
CONNECT DIVERTER VALVE TO FAUCET
STEP
2
2
2B
4
1A
3
1A
3
2B
4
1A
3
1A
3

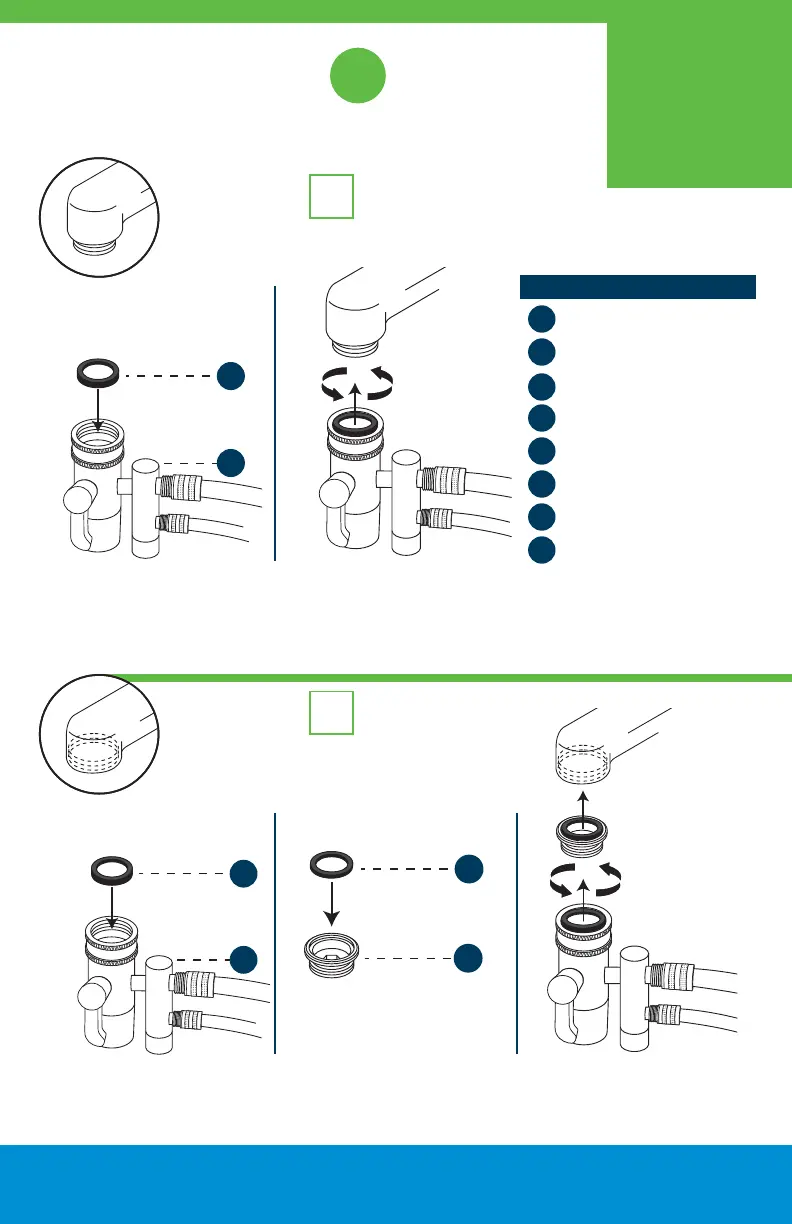

OPTION A
OUTSIDE Thread faucet
OPTION B
INSIDE - Thread faucet
STEP 1
Place rubber washer 1A inside
diverter valve.
STEP 2
Screw diverter valve into faucet.
STEP 1
Place rubber washer 1A inside
diverter valve.
STEP 2
Place rubber washer 2B
inside male to male adapter.
STEP 3
Screw diverter valve into faucet.
2B
4
1A
3
1A
3
2B
4
1A
3
1A
3
2B
4
1A
3
1A
3
2B
4
1A
3
1A
3
2B
4
1A
3
1A
3
PARTS
1A
Rubber Washer
2B
Rubber Washer
3
Diverter Valve
4
Male to Male Adapter
5
Rubber Inserts
6
Hollow Screw
7
Metal Adapter
8
External Hose Adapter
