WaterTech MC-1 - Option C: No Threads

ENGLISH
4
START UP STEP
CONNECT DIVERTER VALVE TO FAUCET
STEP
2
2
OPTION C
NO THREADS - Use internal hose adapter
Large Medium Small
5
6
7
5
1A
3
Large Medium Small
5
1A
3
6
7
5
Large Medium Small
5
1A
3
6
7
5
Large Medium Small
5
6
7
5
1A
3
Large Medium Small
5
1A
3
6
7
5

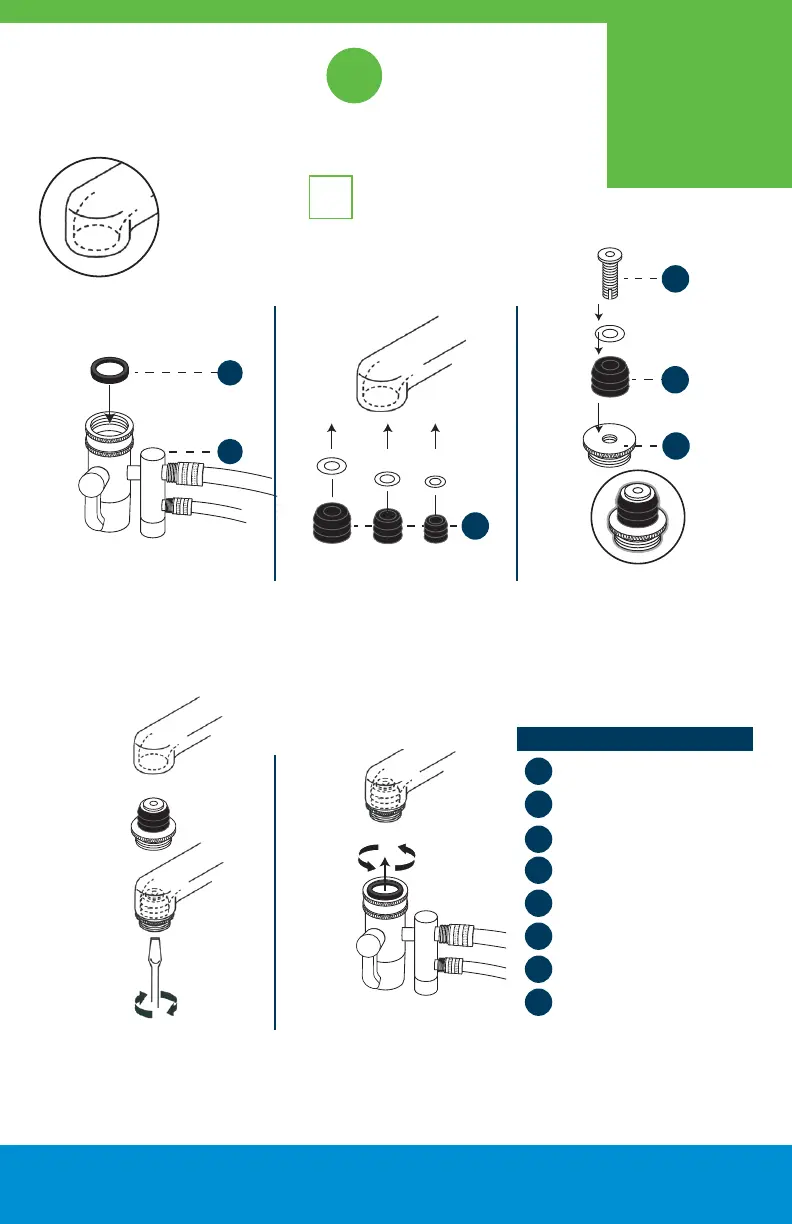

STEP 2
Choose rubber insert that
best fits inside faucet.
STEP 3
Assemble faucet adapter
using parts 5, 6 & 7.
STEP 1
Place rubber washer 1A inside
diverter valve.
STEP 5
Screw diverter valve
into faucet adapter.
STEP 4
Install rubber assembly
into faucet.
Large Medium Small
5
1A
3
6
7
5
PARTS
1A
Rubber Washer
2B
Rubber Washer
3
Diverter Valve
4
Male to Male Adapter
5
Rubber Inserts
6
Hollow Screw
7
Metal Adapter
8
External Hose Adapter
