WattBox WB-800-IPVM-6 User Manual

Page 6

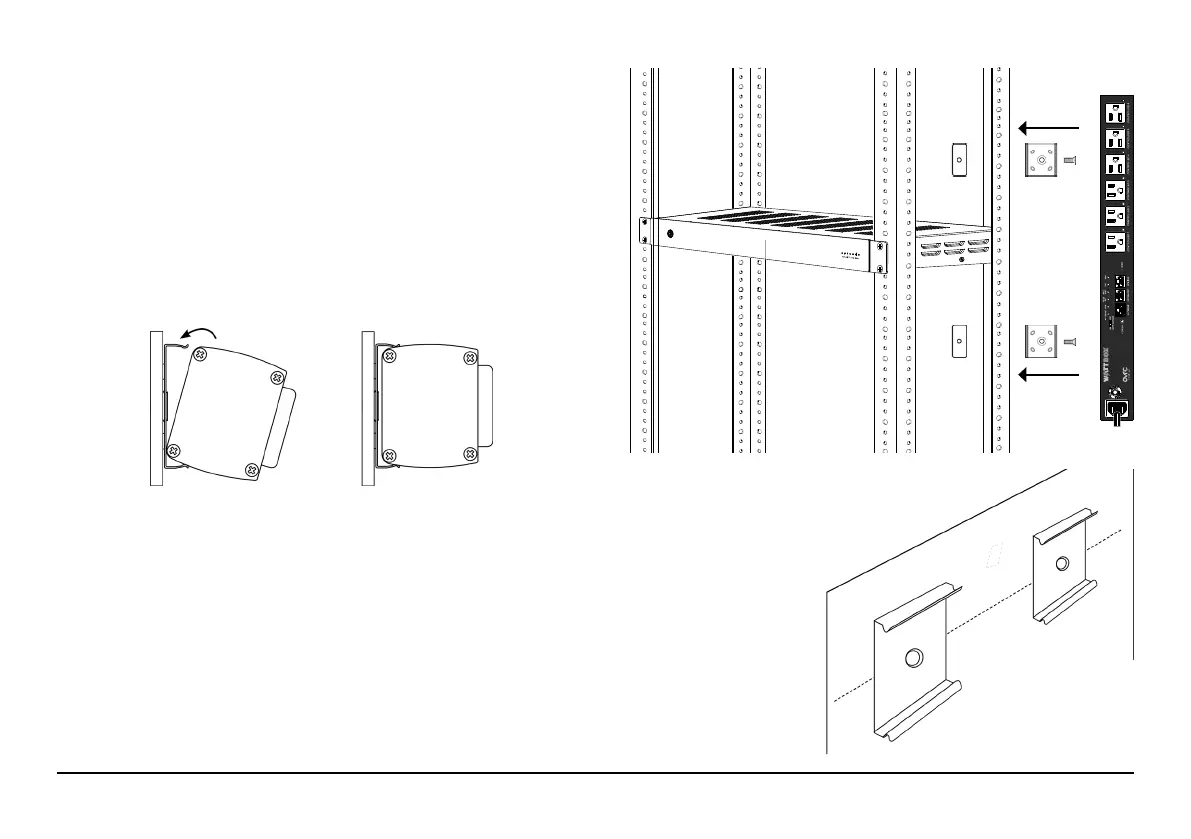

RACK MOUNT WITH CLIPS
is can be mounted vertically on the outside of one rail of a rack.
Using the nuts and screws provided, install the mounting brackets
(with the clips oriented as shown at right) on the outside of one
rack rail. Place the clips 3"–4" from each end of the power strip.
Mount the Strip
Align the power strip with the inside of one edge of the mounting
bracket. Apply pressure and rotate until the units snaps into place.
WALL MOUNT WITH CLIPS
is unit can also be mounted on a wall, either vertically or horizontally.
Draw a level or plumb line. Using wall anchors or other appropriate hardware (not
provided), attach the mounting brackets (clips oriented as shown) centered on the level
or plumb line, so that the clips are 3"–4" from each end of the power strip. For the greatest
stability and safety, we recommend you mount the brackets to studs wherever possible.
Next, insert the unit as described in Mount the Strip, above.
WB-800-IPVM-6

WattBox WB-800-IPVM-6 Specifications

General

Brand	WattBox
Model	WB-800-IPVM-6
Category	Power distribution unit
Language	English
