Benchmark Platinum-Edge [ii]: Installation Manual
SECTION 2 – INSTALLATION
OMM-136_E • GF-210 • 12/13/2019 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 18 of 57

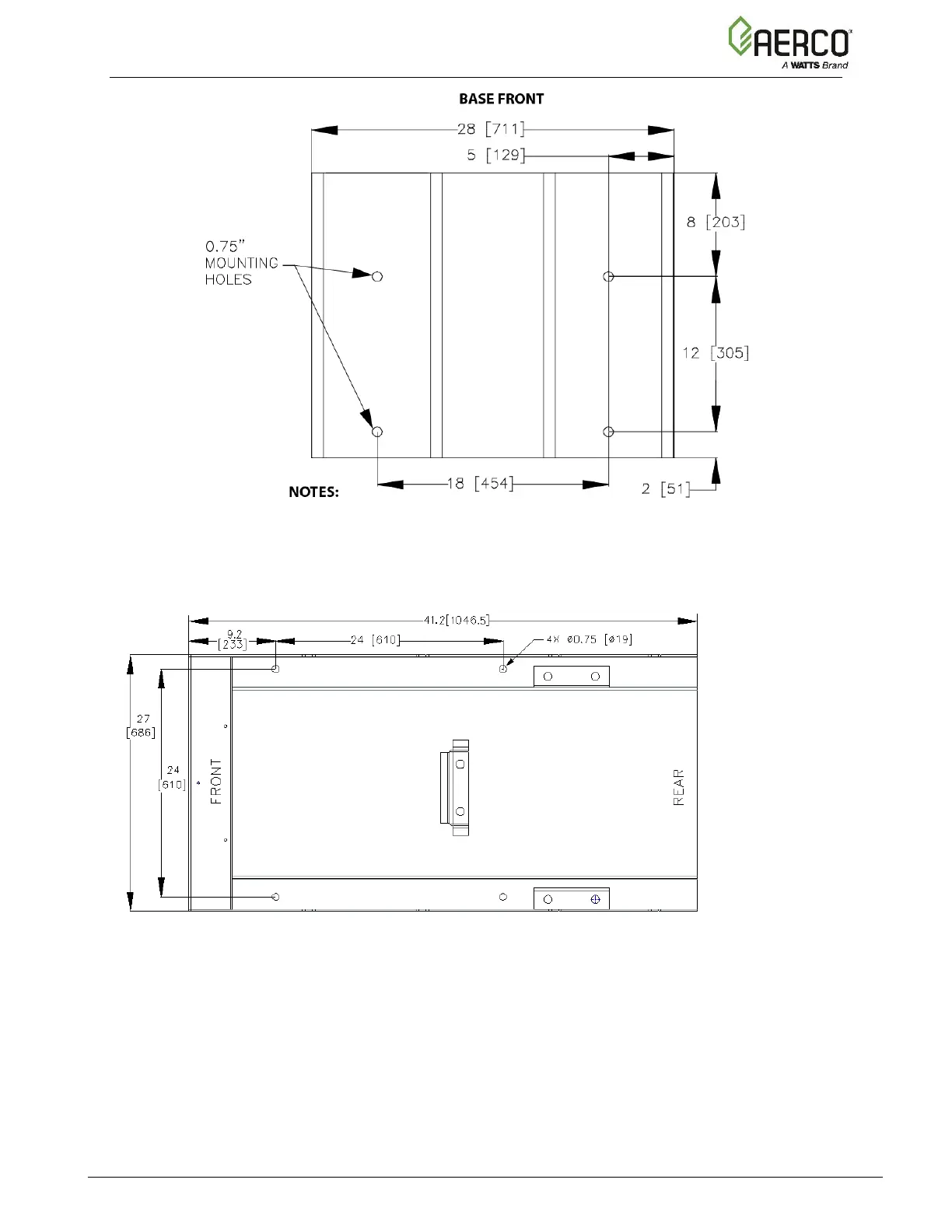

Figure 2-2a: BMK750/1000 Anchor Bolt Locations
Figure 2-2b: BMK1500/2000 Anchor Bolt Locations
