ൡ ELEVATION
Tip: You will be making adjustment on
elevation, skew and azimuth angles when
optimizing your setup throughout the process.
Do not use excessive force when assembling
moving parts.
VERY IMPORTANT: Make sure that your
pole mount is in absolute vertical
position.

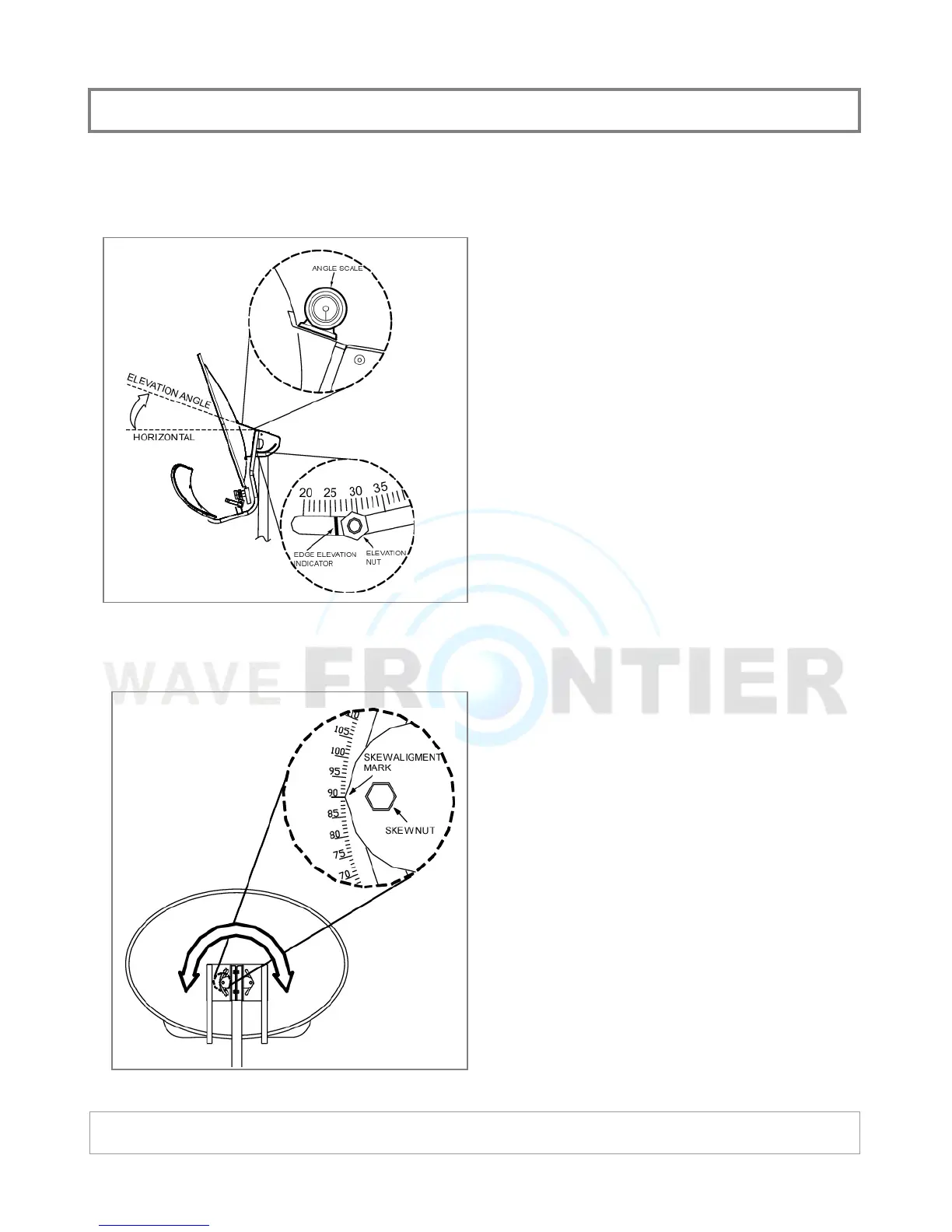

Use angle scale locator or adjust ‘Edge
Elevation Indicator’ to the value provided.
Note that elevation is the most important and
critical factor in aligning Toroidal dish.
ൡ SKEW
Adjust skew angle as given in the setup
information.
PRE-ALIGNMENT: TOROIDAL
