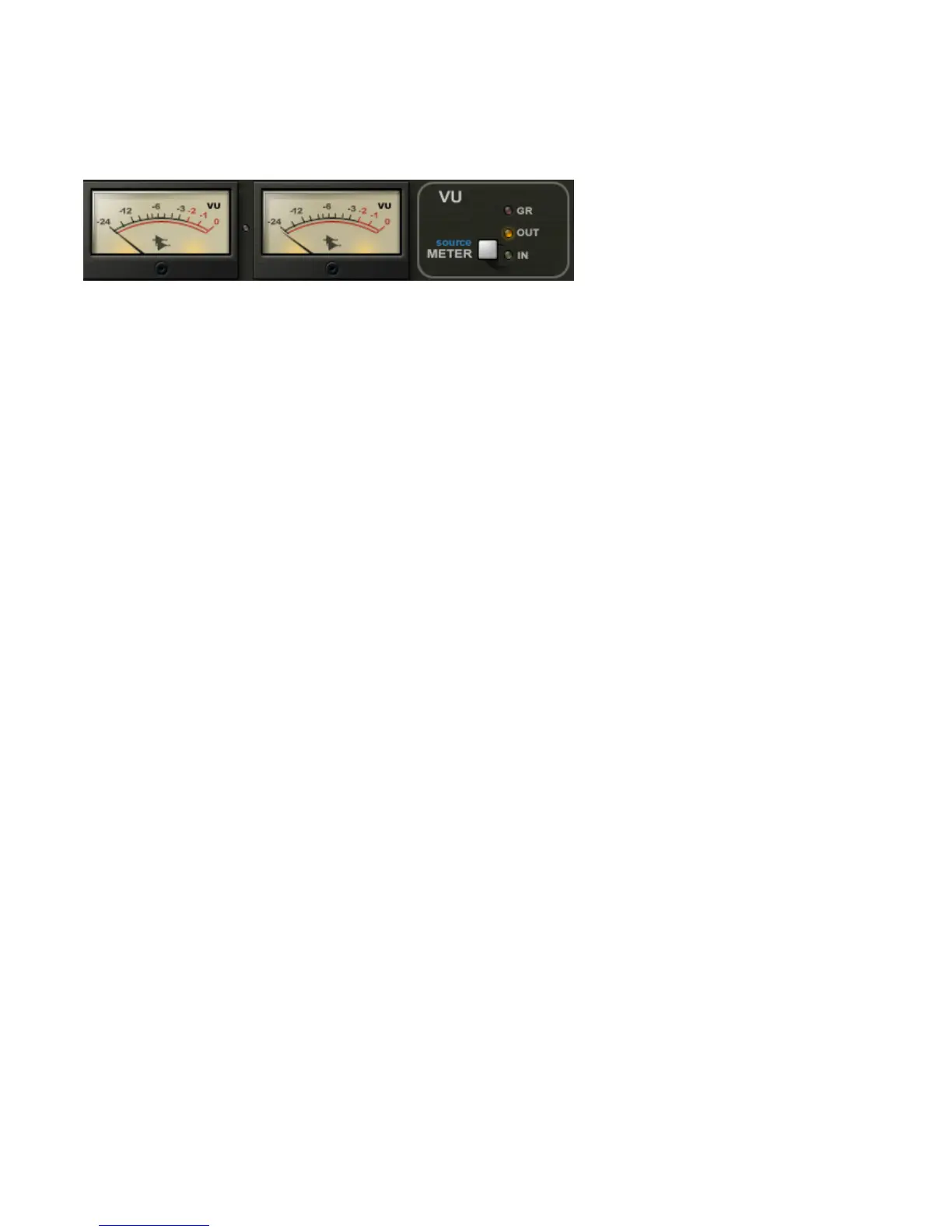

3.4 Meter Display
Meters
The API 2500’s Meters display dBFS. The Gain scale displays the amount of gain reduction during
compression with the 0 point located at the far the right, which allows higher gain reduction scale
resolution.. The API 2500 is capable of up to 30dB of reduction.
Range
0dB to -24dB (Gain Reduction mode)
-24dB to 0dB (Input and Output modes)
Switchable Display Modes
Range
GR, Out, In
Default
GR
Clip LED
Between the two Meters is a Clip LED which indicates input or output clipping. Since the LED shows
both input and output clipping, you must determine which of the two levels is excessive. The Clip LED
can be reset by clicking on it.
Waves API 2500 User Manual
- 14 -
