Type
Sets the Compression type, which determines the signal source being fed to the RMS detector.

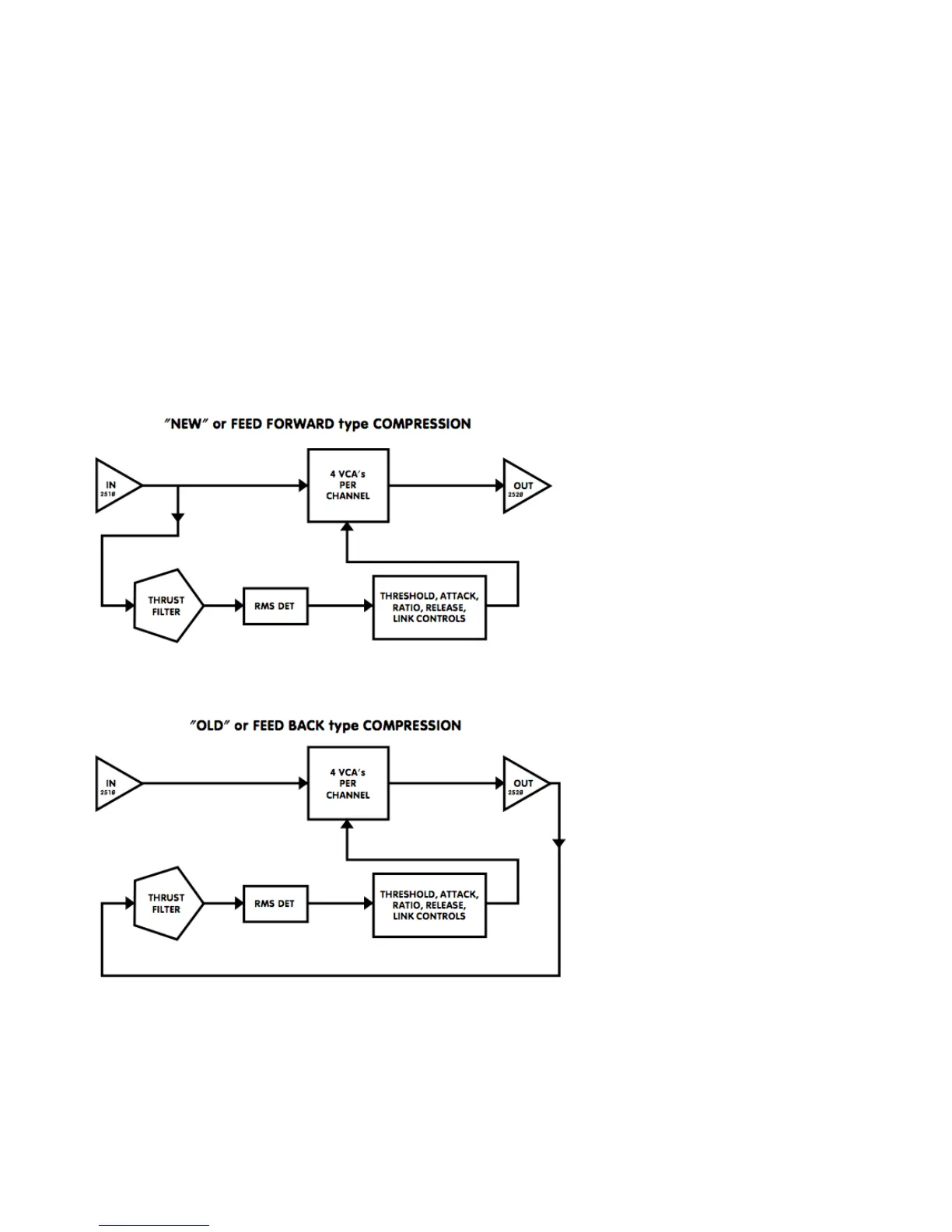

• In New (Feed Forward) mode, the compressor works like newer VCA-based compressors. The
RMS detector sends a signal to the VCA that is an exact ratio of the desired compression, set
by the ratio control.
• In Old (Feed Back) mode, the RMS detector receives a signal from the VCA output, and then
feeds the VCA a signal based on the set signal ratio.
Waves API 2500 User Manual
- 7 -
