Chapter 2 – Quickstart Guide

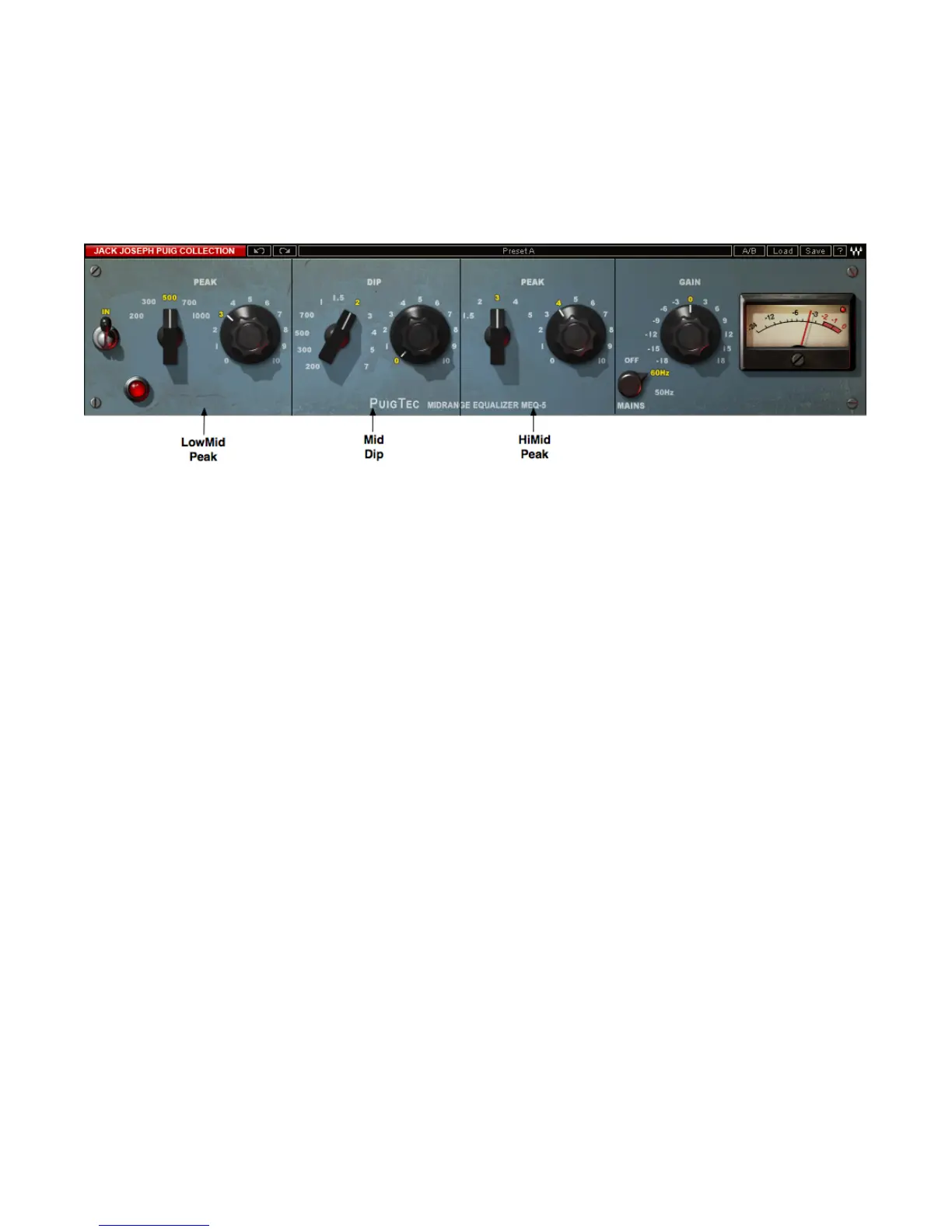

• The LowMid Peak band offers 5 cutoff points and 10dB of Peak (boost).
• The Mid Dip band offers 11 cutoff points and amount of 10dB Dip (attenuation).
• The HiMid band offers 5 cutoff points and 10dB of Peak (boost).
• Gain controls output level trimming.
• The Output meter displays peak output level.
