7inch HDMI LCD (B)
5. save and reboot your Pi
sudo reboot
After completing these steps. The LCD could rotate 90 degree both display and touch.
【Note】

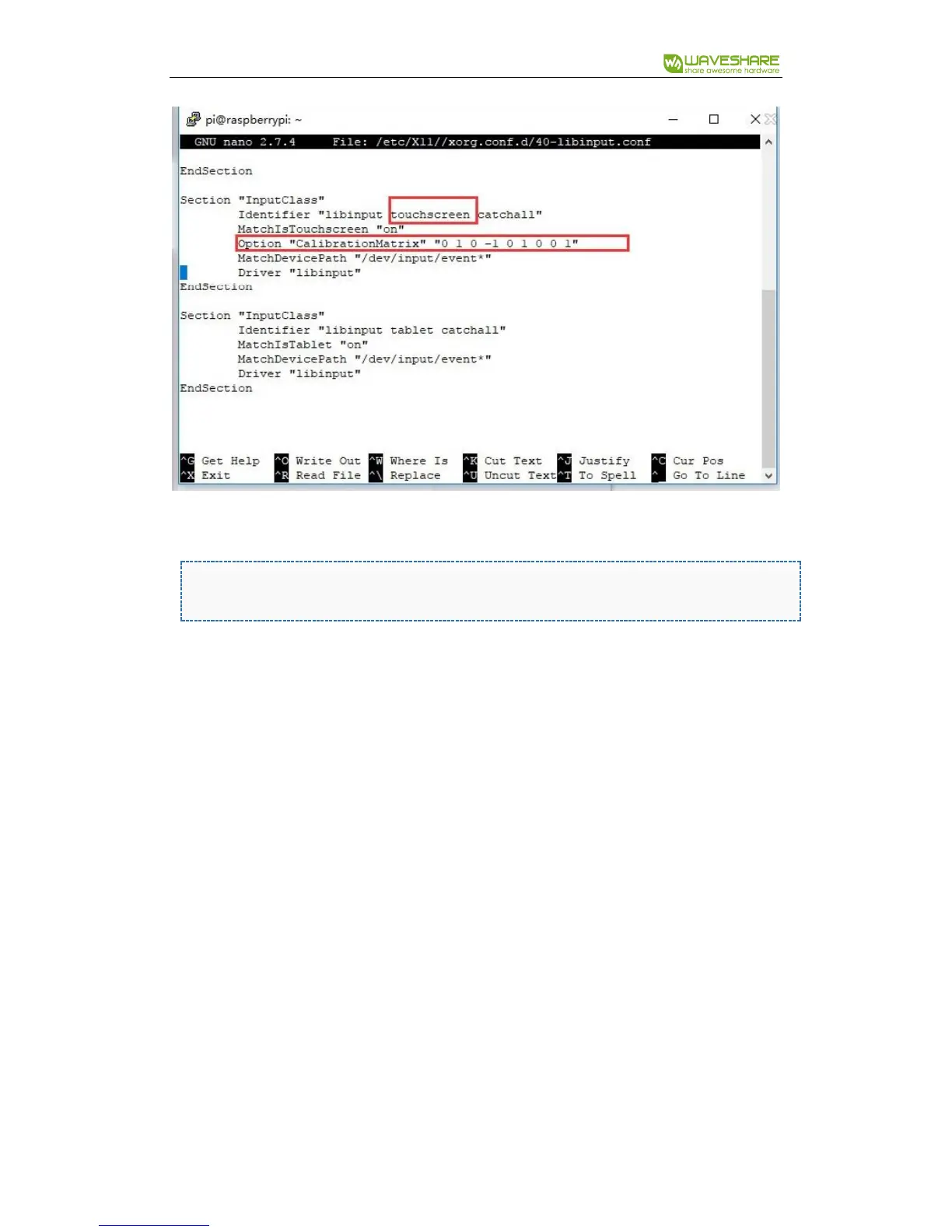

90 degree: Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1"
180 degree: Option "CalibrationMatrix" "-1 0 1 0 -1 1 0 0 1"
270 degree: Option "CalibrationMatrix" "0 -1 1 1 0 0 0 0 1"

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare 7inch HDMI LCD and is the answer not in the manual?

Waveshare 7inch HDMI LCD Specifications

General IconGeneral
Display Size7 inch
Touch PanelCapacitive
InterfaceHDMI
Touch InterfaceUSB
Brightness250 cd/m²
Resolution1024 x 600
Dimensions164.9 x 124.27 (mm)
