RS232 TO RS485 User Manual
Revision: V1.0, Date：20200620
9

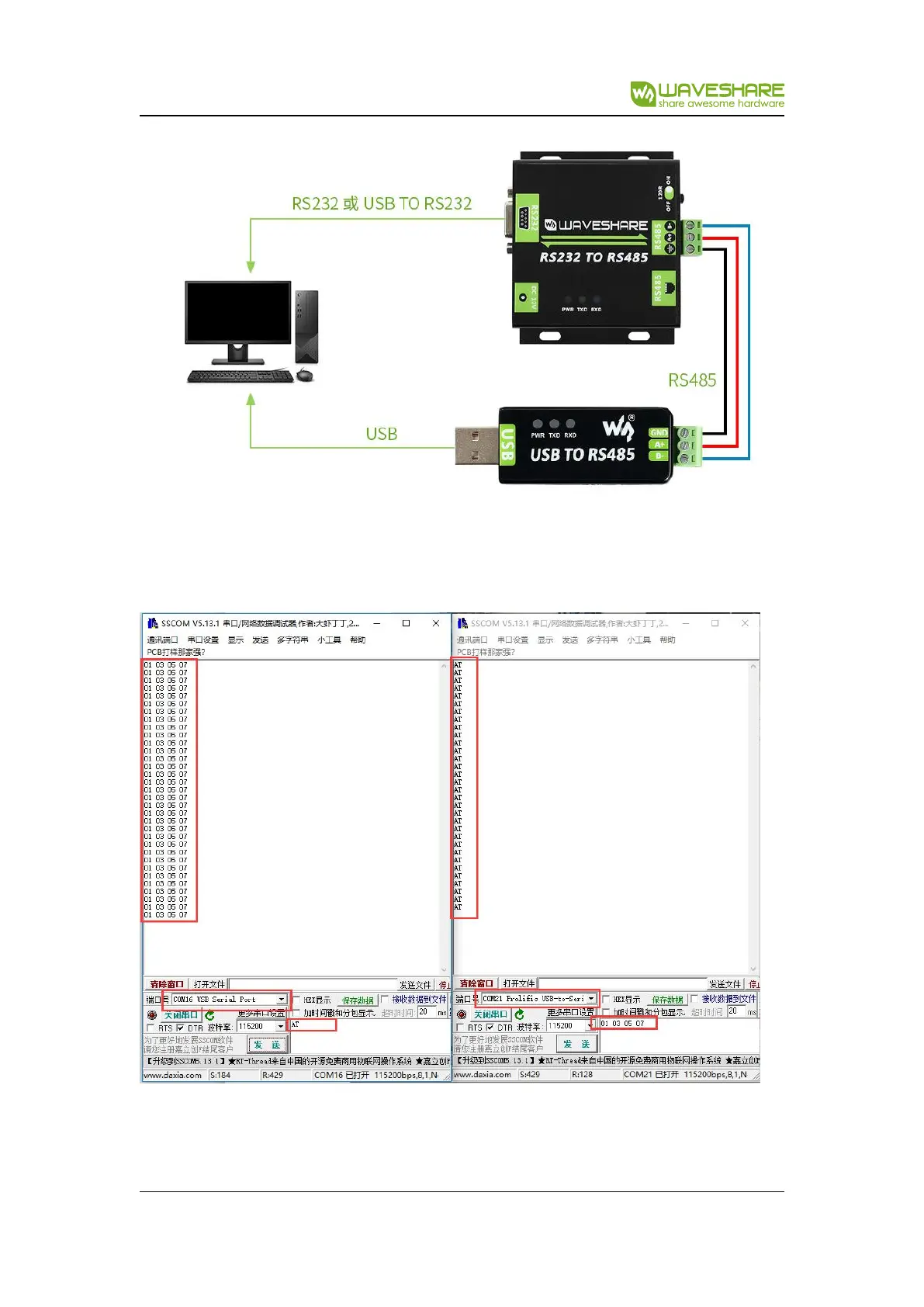

Open two SSCOM software on host PC. Select the correct serial port and set their baud rate to the
same, check the SendEvery option. Then you can test if the devices can transmit and receive normally.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare RS232 TO RS485 and is the answer not in the manual?

Waveshare RS232 TO RS485 Specifications

General IconGeneral
InterfaceRS232, RS485
RS232 ConnectorDB9 Female
RS485 ConnectorTerminal Block
FunctionRS232 to RS485 conversion
Power5V
Baud Rate300bps to 115200bps
Operating Temperature-40°C to 85°C
Communication DistanceUp to 1200m
Isolation Voltage2500V
