SAFETY TESTER
TM

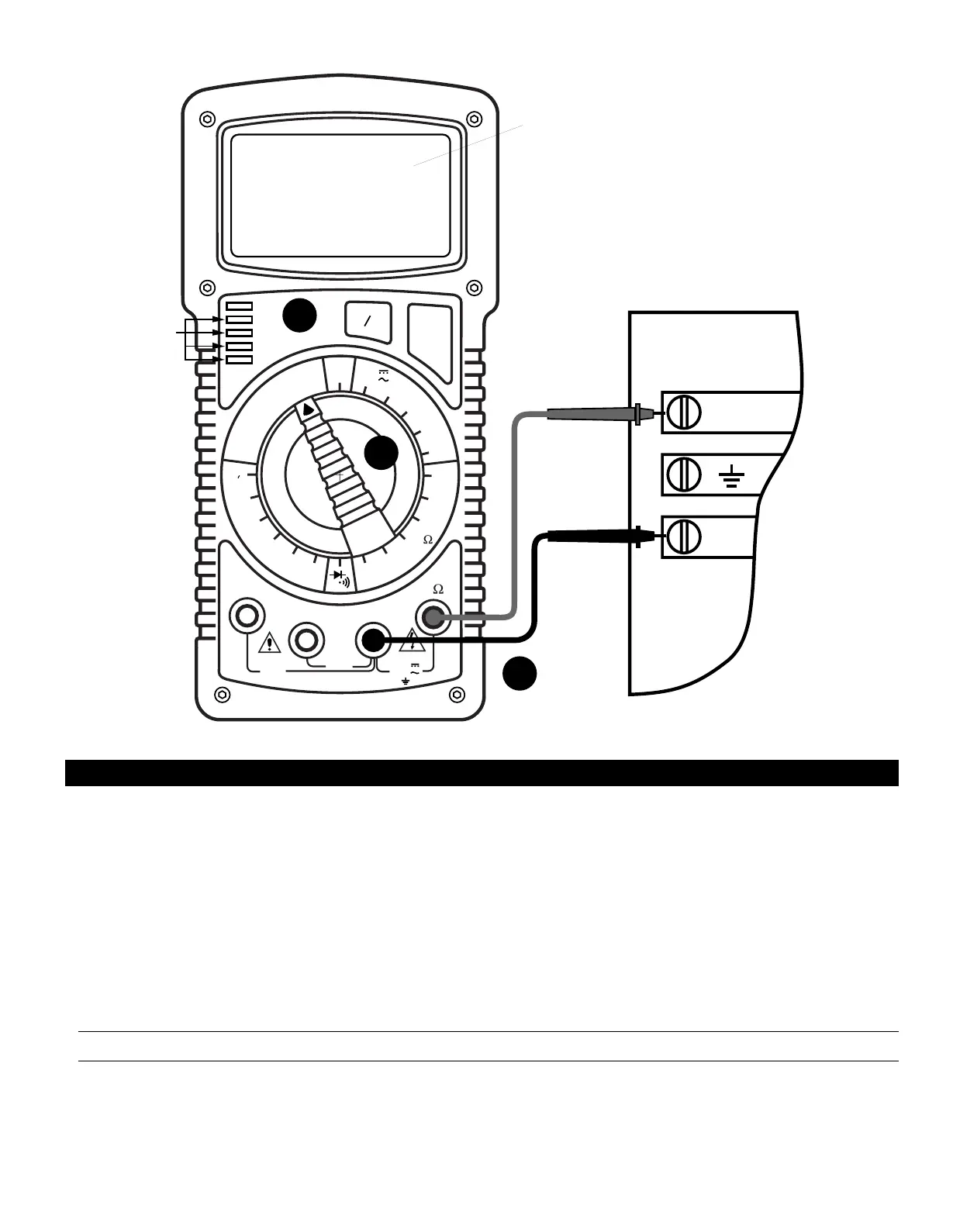

(See Fig. 1)
The Safety Tester
TM
is designed to provide a quick sure look at a circuit for voltages up to 500VDC or ACrms. It
will indicate the five voltage levels even if the meter has a dead battery or blown fuses.
❶
Position the Range
Selector Switch in the SAFETY TESTER
TM
position.
❷
Connect the test leads to the COM and VΩ inputs then
across the circuit to be tested.
❸
Note which, if any, LED(s) is(are) lit for voltage level.
WARNING - The safety tester is designed as additional level of fail-safe protection, but should not be trusted
on a meter which has known operational problems or has been damaged. It can not indicate the presence of
voltage over and above all failures (i.e. a broken test lead or hidden internal circuit damage) Meters with
problems or damage should only be repaired or certified operational at an authorized Wavetek Meterman
Service Center.
D • Sicherheitstester (Siehe Fig. 1)
Der Sicherheitstester erlaubt fünf Spannungspegel bis 500V DC oder AC schnell und sicher festzustellen –
auch bei entladener Batterie.
❶
Wahlschalter auf “Safety Tester” Position stellen.
❷
Meßkabel mit COM und
VΩ Eingängen und Schaltkreis verbinden.
❸
Spannungspegel (falls vorhanden) mit aufleuchtenden LEDs
