Wavetek METERMAN 23XT - Page 40

- 38 -
VR3
VR2
VR1
10A/600V 0.5A/250V
BATTERY
9V
Spare 0.5A@250V Fuse
VR3
VR2
VR1
10A/600V 0.1A/250V
BATTERY
9V
Spare 0.1A@250V Fuse
VR3
VR2
VR1
20A/600V
0.5A/250V
BATTERY
9V
Spare 0.5A@250V Fuse
VR3
VR2
VR6
VR4
VR8
20A/600V
0.1A/250V
BATTERY
9V
Spare 0.1A@250V Fuse

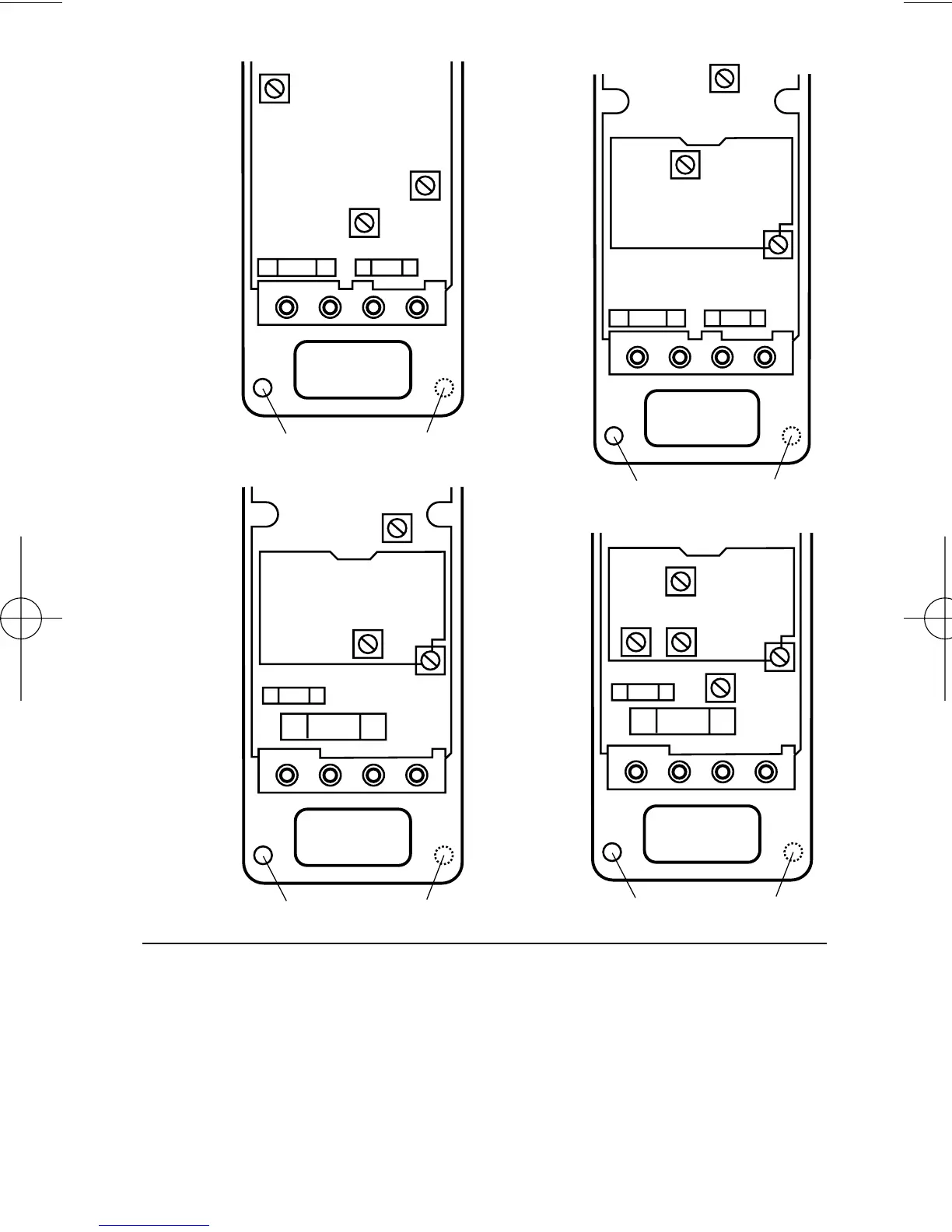

Fig. 5
23XT
25XT
27XT
28XT
Model Fuse Size (mm) Type Interrupt Part Nbr
23XT 0.5A/250V 5x20 Ceramic 1500A FP225
10A/600V 6.35x25.4 Ceramic 6000A FP400
25XT 0.1A/250V 5x20 Glass 200A FP125
10A/600V 6.35x25.4 Ceramic 6000A FP400
27XT 0.5A/250V 5x20 Ceramic 1500A FP225
20A/600V 10.3x38.1 Ceramic 100000A FP425
28XT 0.1A/250V 5x20 Glass 200A FP125
20A/600V 10.3x38.1 Ceramic 100000A FP425
Fuses/Sicherungen/ Fuses/Fusibles
