Complete sensor alignment and configure lanes
7

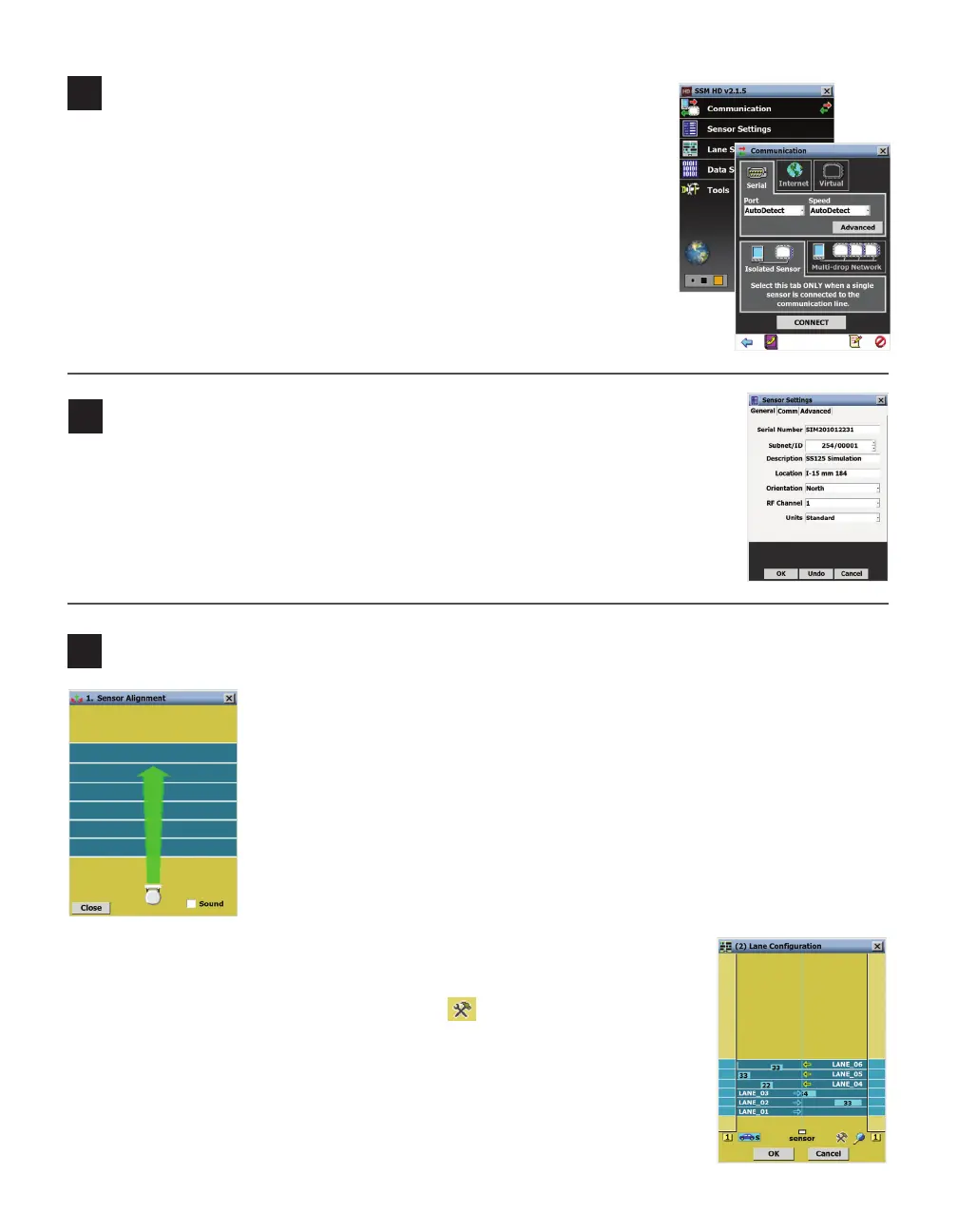

Make a connection
Open SmartSensor Manager HD (SSMHD) on your laptop to connect to the
sensor:
1 Make a physical or wireless connection to the sensor; generally you
do this via a Click device that has a communication connection with the
sensor—for instance, you could connect to an Ethernet device on the
same T-bus as the Click 200 surge protector the sensor is connected to.
2 Launch SSMHD and click Communication on the main menu. Based on
the kind of connection you’re making, go to the Serial or Internet tab.
3 Change any necessary settings, such as port, speed or address, and click Connect.
1 Select Lane Setup from the main menu, then 1. Sensor Alignment.
2 Adjust the sensor according to the arrow. A green arrow means the sensor is
positioned for optimal performance; a yellow or red arrow means the sensor is
NOT correctly aligned with the roadway. If the sensor is too far out of align-
ment, you’ll receive an error message pop-up.
3 Tighten the strap screws holding the mounting bracket the rest of the way once
the sensor is aligned properly.
For this tool to function properly, trac must be owing freely. Each time you adjust
the sensor, several vehicles need to pass before the alignment tool’s output is valid.
From the SSMHD main menu, open Settings, to congure certain settings for this sensor.
˽ Description – (General tab) Add text here to help you identify the sensor later.
˽ Location – (General tab) Add the sensor’s location here to help you identify it
later.
˽ Output Type – (Advanced tab) Ensure that this is set to Antenna.
8
Enter the sensor settings
Follow the steps below to automatically congure the SmartSensor HD:
1 From the Lane Setup window, click 2. Lane Conguration.
2 In the window that opens, click the Tools icon and select Clear Edit Area.
3 Click the To ols icon again and then click Restart Auto Cfg. Click OK.
4 As the tool runs, blue lanes will appear where the sensor detects them. Once
all the lanes have been detected and placed, Click OK. If no lanes appear,
click on the magnifying glass and make the top line says “Hide Auto Lanes”;
this indicates lanes are set to be shown.
5 A window will pop up to ask if you’d like to save the conguration. Choose Ye s.
