wavin OSMA Rainwater - Page 4

Product Details
Wavin Osma StormLine PVC-U Rainwater Systems
30 www.wavin.co.uk
A
A
B

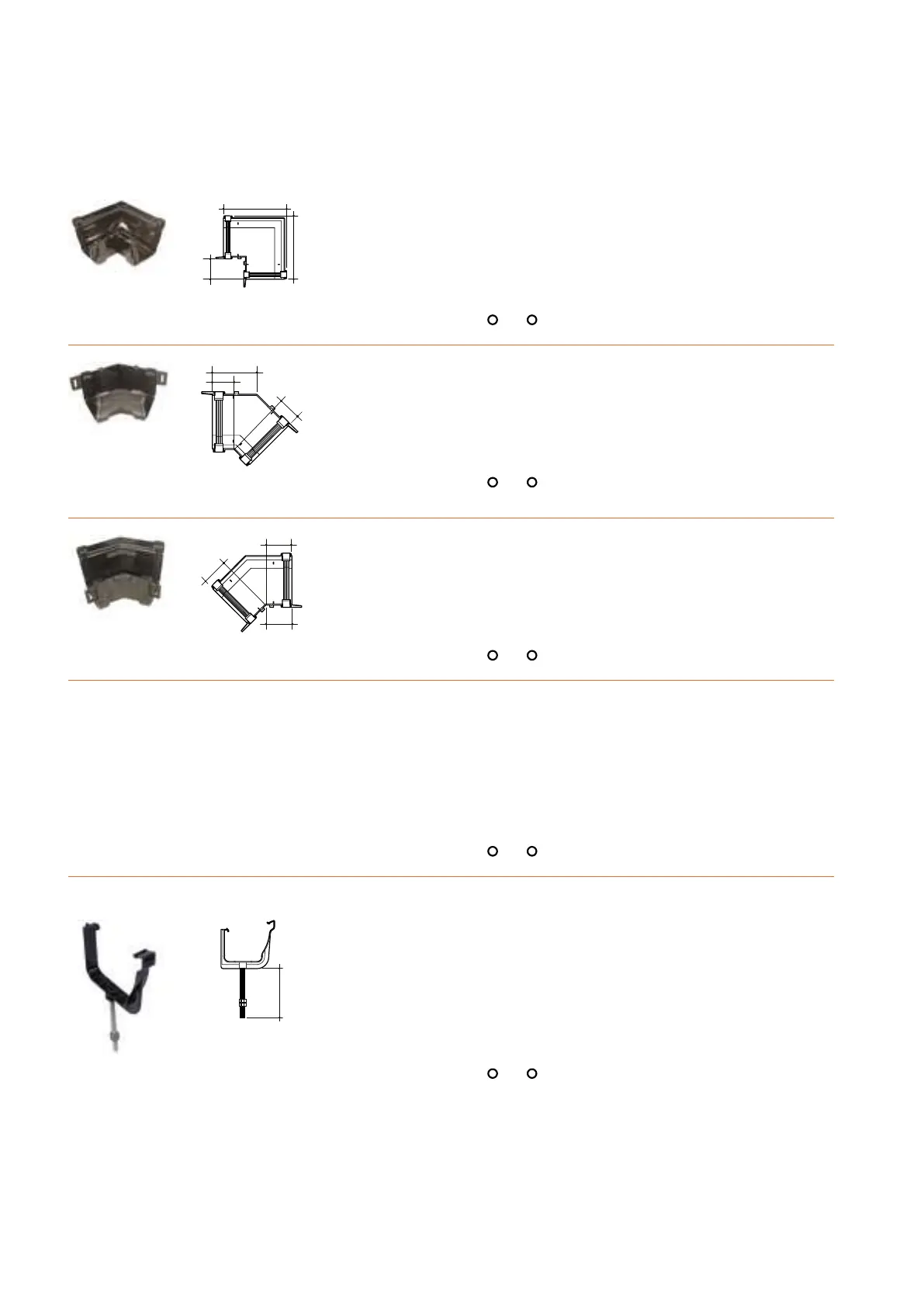

External 90° Angle
Material:PVC-U,withEPDMseals
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A B
111x76x97 8T853a
l l
200 72.5
A
B
A
Internal 45° Angle
Material:PVC-U,withEPDMseals
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A B
111x76x97 8T844a
l l
50 103
A
B
A
External 45° Angle
Material:PVC-U,withEPDMseals
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A B
111x76x97 8T854a
l l
67.5 67
Fabricated Angles
• Angles fabricated to order
• For details, contact Technical Design Department
Material:PVC-U,withEPDMseals
Nominal Part Colour
Size (mm) Number Option
111x76x97 8T999
l l
Rise and Fall Brackets and Spikes
A
Bow and Pin for Rise and Fall Brackets
• Use with Spikes 0T985/986 or 0T988/989 (see page 31)
• Diameter of rod: 8mm
Material:Pin–Stainlesssteel;Bracket–PVC-U
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A
110 8T894
l l
115
