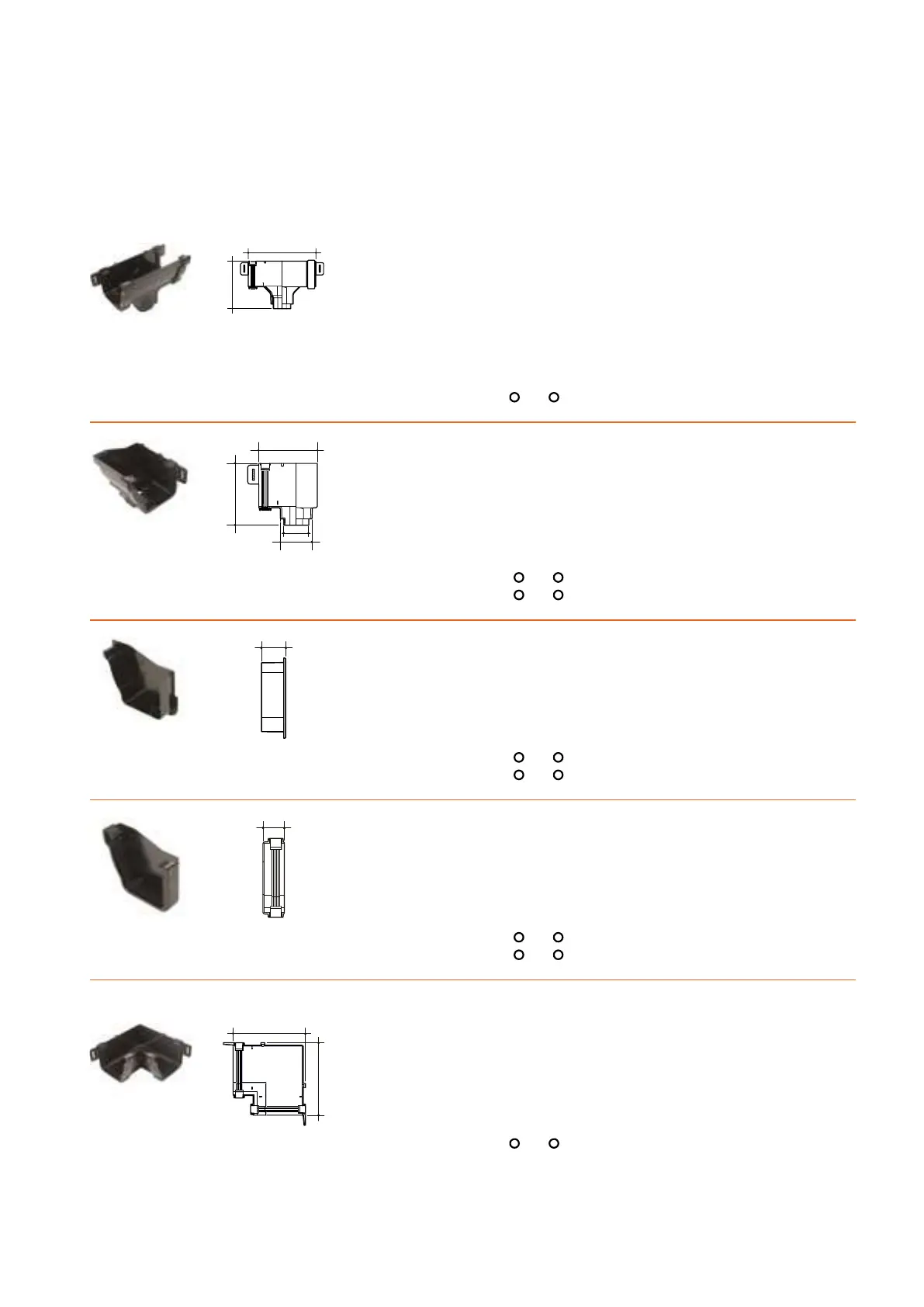

Outlets and Stopends
A
B
Running Outlet
• For gutter capacity, see pages 5 and 49-51
• Can be used with 68mm circular pipe and 61mm Square Pipe
Material:PVC-U,withEPDMseals
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A B
111x76x97 8T806a
l l
220 175
A
B
C
D
Stopend Outlet
• For gutter capacity, see pages 5 and 49-51
Material:PVC-U,withEPDMseal
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A B C D
111x76x97LH 8T807a
l l
135 123.5 58 71
111x76x97RH 8T808a
l l
135 123.5 58 71
A
Internal Stopend
Material:PVC-U
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A
111x76x97LH 8T840a
l l
33
111x76x97RH 8T850a
l l
33
A
External Stopend
Material:PVC-U,withEPDMseal
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A
111x76x97LH 8T841a
l l
37.5
111x76x97RH 8T851a
l l
37.5
Gutter Angles
A
A
Internal 90° Angle
Material:PVC-U,withEPDMseals
Nominal Part Colour Dimensions (mm)
Size (mm) Number Option A
111x76x97 8T843a
l l
178
