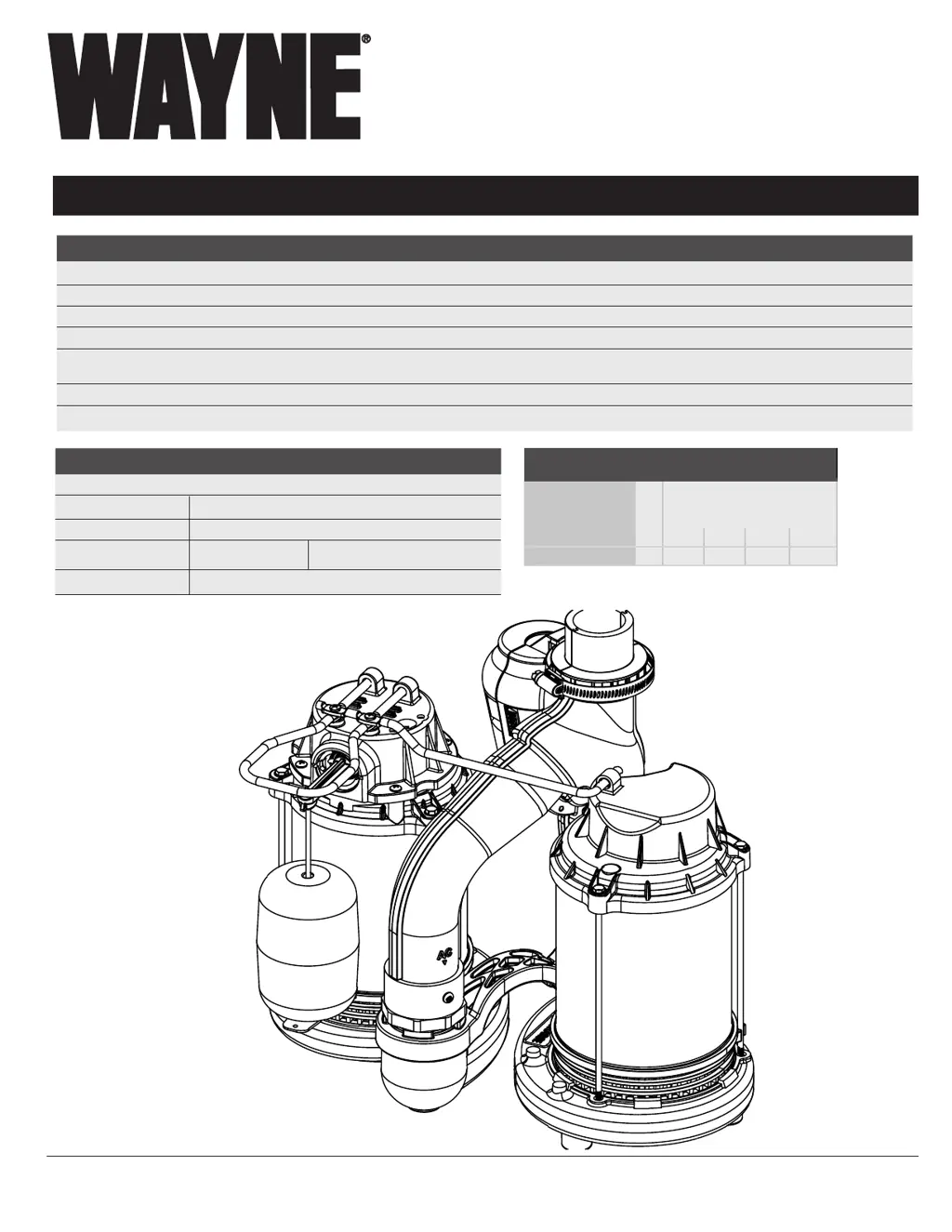

Wayne WSS30Vn - User Manual

12 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS

POWER SUPPLY REQUIREMENTS 120 V, 60 Hz 12 V, DC*

MOTOR Single Phase, Dielectric Oil Filled Permanent Magnet DC

POWER

1/2 HP 100 Watts

CIRCUIT REQUIREMENTS 15 A (minimum) 15 A (minimum)

DIMENSIONS

11 ½ in. high x 9 ¾ in. base 11 ½ in. high x 9 ¾ in. base

ON LEVEL Approximately 9 in. 10-12 in.

OFF LEVEL

Approximately 4 in. N/A

670001-001 F 07/19

© 2018, WAYNE/Scott Fetzer Company

CONSTRUCTION AC DC

MOTOR HOUSING Coated Steel

VOLUTE

Cast Iron

IMPELLER Glass Reinforced Thermoplastic

SHAFT Steel Stainless Steel

DISCHARGE 1-1/2 in. NPT

Submersible Sump Pump System

www.waynepumps.com

Intended for Indoor Use Only

Please read and save these instructions. Read carefully before attempting to assemble, install,

operate or maintain the product described. Protect yourself and others by observing all safety

information. Failure to comply with instructions could result in personal injury and/or property

damage! Retain instructions for future reference.

Operating Instructions and Parts Manual WSS30Vn

PERFORMANCE GAL/HR

Model HP

Discharge Head (Lift Distance)

0 ft 5 ft 10 ft 15 ft

WSS30Vn AC 1/2 5100 4500 3840 3060

WSS30Vn DC 12V 2700 2130 1500 720

* Battery not included. Wayne WSB1275 is

recommended
