18

c.

Left turn with left track as axis: forward move the right handle

d.

Right turn with right track as axis: forward move the left

handle

3. Excavation

1.1

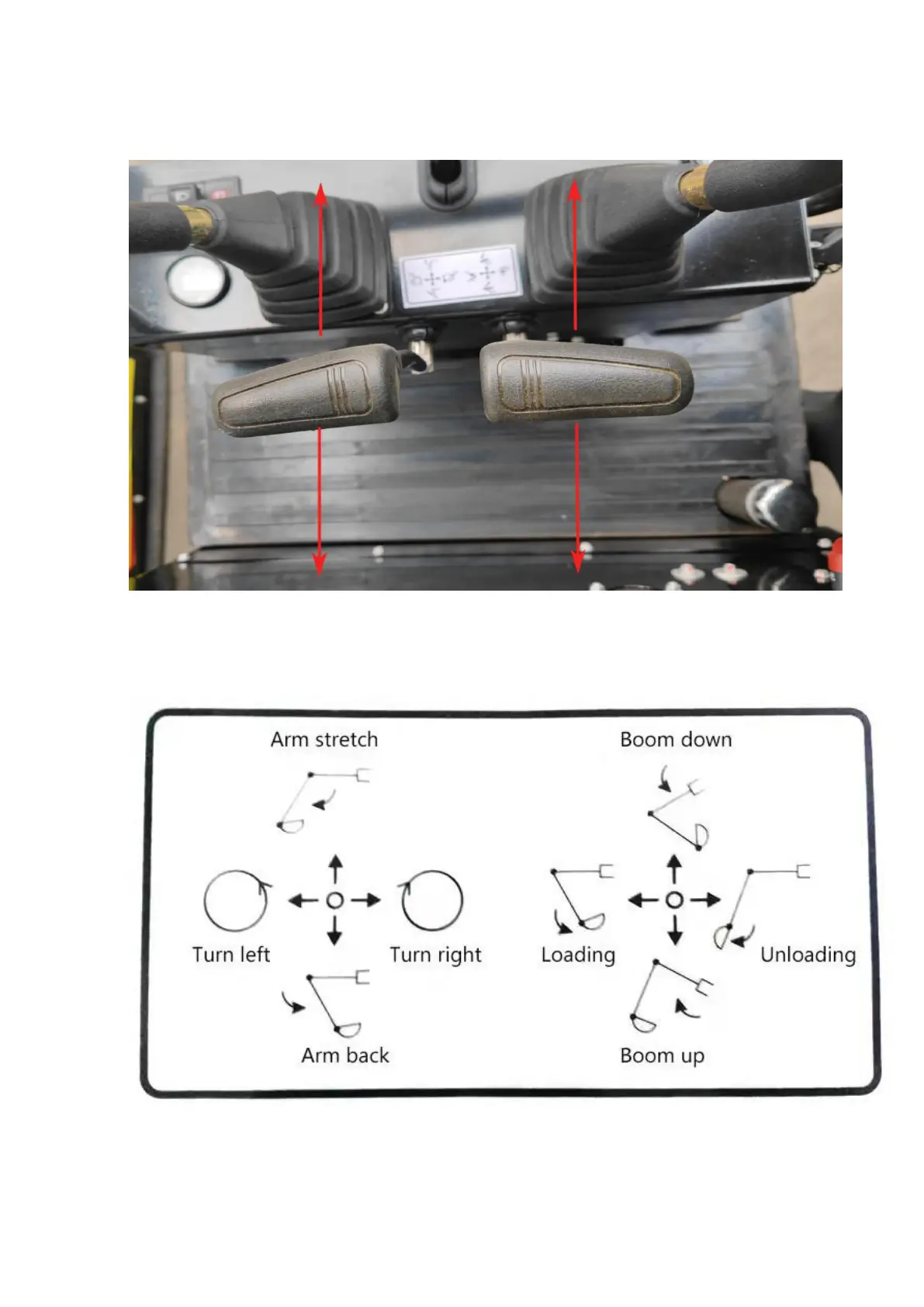

The excavator slewing and the work equipment are respectively controlled with two handles, with positions

shown

below:
