1

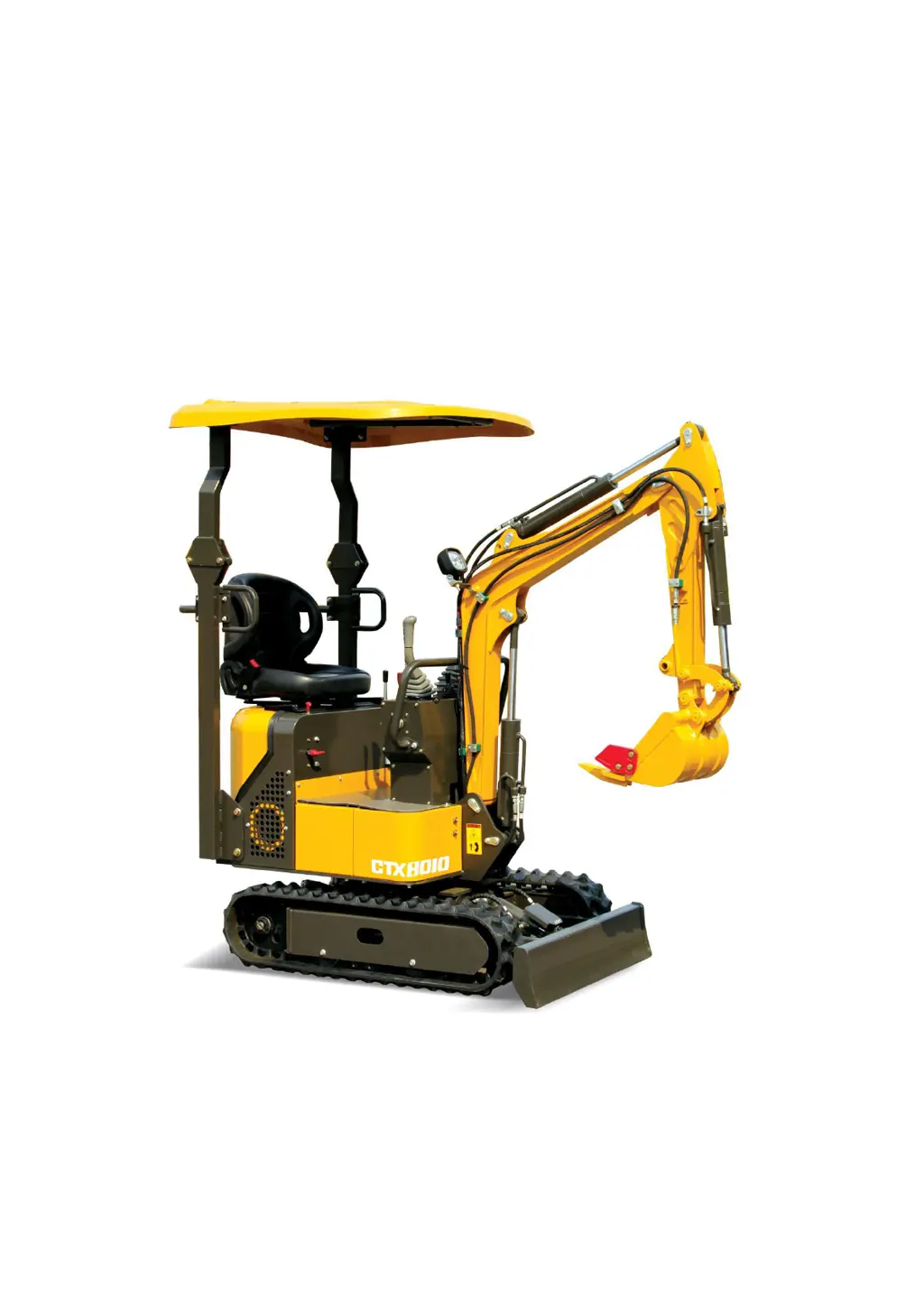

CTX8010 MINI EXCAVATOR
OPERATION & PARTS MANUAL

Table of Contents

Questions and Answers

  • D
    drobertsAug 22, 2025
    How to fix hot hydraulic oil in my WCM CTX8010?
    • H
      hhuntAug 22, 2025
      If the hydraulic oil in your WCM Compact Excavator is getting too hot, consider these potential causes and solutions: * Using the wrong grade of hydraulic oil. Solution: Change the hydraulic oil. * A hydraulic oil cooler surface is blocked. Solution: Wash the cooler surface. * Low oil level in the hydraulic oil tank. Solution: Add enough hydraulic oil. * Worn hydraulic components causing internal leaks. Solution: Change the elements in time.
  • M
    Mark DownsAug 25, 2025
    Why won't my WCM Compact Excavator engine start?
    • H
      hwebbAug 26, 2025
      If your WCM Compact Excavator engine won't start, check these potential issues: * The fuel pump system isn't supplying enough fuel. Solution: Add fuel. * Low engine rpm. Solution: Adjust to regular rpm. * Pump fault. Solution: Change the pump. * Less fuel in the tank. Solution: Add fuel. * A break in the fuel tube, loose connector or damaged O ring. Solution: Change the damaged parts.
  • L
    Lisa WoodAug 28, 2025
    What to do if boom drops too quick in my WCM Compact Excavator?
    • A
      Alexis DeckerAug 28, 2025
      If the boom (bucket rod and bucket) drops too quickly on your WCM Compact Excavator, or the cylinder drops at a certain height without being operated, consider the following: * Low overloaded valve pressure. Solution: Adjust the pressure. * Serious internal leak of cylinder. Solution: Change the sealing component, repair the inner wall or groove of cylinder or change the cylinder. * Loose oil pipe fitting, damaged O ring. Solution: Change the damaged parts.
  • P
    Patrick CobbAug 31, 2025
    What causes noisy structural components in my WCM CTX8010 Compact Excavator?
    • T
      tracey14Aug 31, 2025
      Noisy structural components in your WCM Compact Excavator can be caused by: * Loose fasteners. Solution: Inspect and tighten them. * Aggravated abrasion between the bucket and the end face of the bucket rod. Solution: Adjust the clearance to less than 1mm.
  • D
    David HarmonSep 3, 2025
    What causes my WCM CTX8010 Compact Excavator boom to work powerlessly?
    • K
      Kimberly YorkSep 3, 2025
      If the boom (bucket rod and bucket) on your WCM Compact Excavator is working powerlessly, it could be due to: * Serious internal leak of the multiway valve or sandstone inside it. Solution: Change the multiway valve. * Low overloaded pressure. Solution: Adjust the pressure. * Serious internal leak of the oil cylinder. Solution: Change the oil seal. * The main valve is disabled due to internal leak. Solution: Repair or change the main valve.
  • D
    Daniel LewisSep 6, 2025
    Why do bucket teeth fall off my WCM Compact Excavator during operation?
    • J
      James ThomasSep 6, 2025
      Bucket teeth may fall off your WCM Compact Excavator during operation due to: * A deformed spring and weakened elasticity of the bucket tooth pin. Solution: Change the bucket tooth pin. * An unmatched bucket tooth pin and seat. Solution: Change the bucket tooth pin.
  • S
    Steven WilsonSep 9, 2025
    What causes my WCM CTX8010 Compact Excavator crawler to tangle up?
    • J
      jennifer04Sep 9, 2025
      The crawler on your WCM Compact Excavator may tangle up because of: * A loose crawler. Solution: Tighten the crawler. * The driving wheel moves fast in front on rugged road. Solution: The guide wheel shall move slowly in front on rugged road.
  • C
    Chad ButlerNov 15, 2025
    Why is my WCM CTX8010 moving slowly or powerlessly?
    • J
      juliejohnsonNov 15, 2025
      Your WCM Compact Excavator might be moving slowly or powerlessly due to several reasons: * Not enough oil in the hydraulic oil tank. Solution: Add enough hydraulic oil. * Low engine rpm. Solution: Adjust engine rpm. * Low system safety valve pressure. Solution: Adjust to the specified pressure. * A serious leak inside the main pump. Solution: Change or repair the pump. * Worn traveling motor, rotation motor, or cylinder causing internal leaks. Solution: Change or repair the worn parts. * Aged sealing components, worn hydraulic elements, or degraded oil. Solution: Change hydraulic oil and sealing components, adjust fit clearance and pressure of hydraulic components. * A blocked engine filter. Solution: Change the element. * A blocked hydraulic filter. Solution: Clean and ch...
  • M
    Mary RiceNov 18, 2025
    What to do if my WCM CTX8010 Compact Excavator does not move at all?
    • W
      William RobinsonNov 18, 2025
      If your WCM Compact Excavator isn't moving, it could be due to: * Low hydraulic oil level preventing the main pump from sucking oil. Solution: Add enough hydraulic oil. * A blocked oil filter. Solution: Change the filter and clean the system. * A damaged engine coupling. Solution: Change the damaged parts. * A damaged main pump. Solution: Change or repair the main pump. * Low or zero servo system pressure. Solution: Adjust to regular pressure, and if needed, disassemble and clean the servo overflow valve or address a fatigued spring. * Safety valve set at low pressure or stuck. Solution: Adjust to regular pressure, and if needed, disassemble and clean the valve or address a fatigued spring. * The oil suction pipe of the main pump is damaged. Solution: Replace it with a new o...

Summary

CTX8010 Excavator Features and Performance

Usage and Features

Details the primary applications and versatile use of the CTX8010 excavator with various attachments.

Main Performance Parameters

Provides key specifications including dimensions, work range, and performance metrics of the excavator.

CTX8010 Excavator Structure and Work Principle

Overview of Excavator Structure

Explains the main components and overall layout of the CTX8010 excavator.

Work Principle Explanation

Describes how the diesel engine, hydraulic system, and motors work together to operate the excavator.

CTX8010 Excavator Mechanical System Components

Bucket Description and Types

Details the requirements, structure, and types of buckets for the excavator.

Rotary Motor Specifications

Presents performance data for the rotary motor, including flux, speed, pressure, and torque.

Main Pump Information

Shows diagrams and part information related to the main pump of the hydraulic system.

Traveling Motor Details

Provides specifications and part numbers for the traveling motors used in the excavator.

CTX8010 Excavator Schematics and Electrical System

Main Valve Schematics

Illustrates the hydraulic schematic of the main control valve for various functions.

Electrical System Diagram

Depicts the wiring and connections of the excavator's electrical control system.

CTX8010 Excavator Service Technologies and Operation

Basic Construction Knowledge

Covers fundamental principles of the excavator's control system and basic movements.

Preparation for Work

Outlines pre-operation checks, startup procedures, and cold-weather preheating.

Operational Essentials

Explains how to use the control console, traveling handles, and excavation controls.

CTX8010 Excavator Operational Precautions

CTX8010 Excavator Maintenance Procedures

Daily Inspection and Maintenance

Details daily checks for engine oil, hydraulic oil, fuel, and general component condition.

Overhaul, Medium, and Minor Repairs

Provides a schedule for periodic maintenance tasks like greasing, oil changes, and filter checks.

Lubrication of Work Equipment Pins

Specifies grease points, quantities, and maintenance intervals for work equipment pins.

Lubrication of Slewing Bearing and Gears

Details the greasing of slewing bearings and external meshing gears.

Engine Oil and Filter Maintenance

Guides on checking and changing engine oil and oil filter based on operating hours.

Hydraulic System Maintenance

Covers checking hydraulic oil levels, changing oil, and maintaining filter elements.

Hose and Pipeline Inspection

Outlines daily and periodic checks for hoses and pipelines for leaks or damage.

Fuel System Maintenance

Details procedures for filling fuel and inspecting the diesel filter.

Battery Maintenance and Replacement

Explains how to check, maintain, and replace the excavator's battery.

Bucket Replacement Procedures

Provides step-by-step instructions for changing the excavator's bucket.

Bolt and Nut Tightening Torques

Lists required torque values for various bolts and nuts on the excavator.

CTX8010 Excavator Troubleshooting Guide

General Troubleshooting

Introduces troubleshooting principles and maintenance frequency.

Mechanism System Troubleshooting

Addresses issues related to noisy components, bucket teeth, and crawler problems.

Hydraulic System Troubleshooting

Covers problems like the excavator not moving, slow operation, and hydraulic oil issues.

Electrical Control System Troubleshooting

Lists fault codes and diagnostic steps for the electrical control system.

Diesel Engine Troubleshooting

Provides solutions for engine startup failures, flame-outs, and starter issues.
