Webasto BLUE COOL User Manual

Designated Control Panels
The chiller unit is operated and controlled by the Chiller Control digital control panel. Directly
connected air-handlers for one cabin are also operated by this control panel.
Other cabins with indirectly connected air-handlers are controlled by separate Air Control digital
control panels.
The system must be started with the Chiller Control prior to normal functionality of the air-
handlers in other cabins.
Chiller Control
• Start and stop of the chiller unit
• Programming and setup of the chiller unit
• Setup of directly connected air-handlers
• Selection of operation mode (Automatic, Cooling, Heating)
Air Control
• Start and stop of indirectly connected air-handlers
• Temperature and blower setting for indirectly connected air-handlers
The operation mode can not be selected with the Air Control!

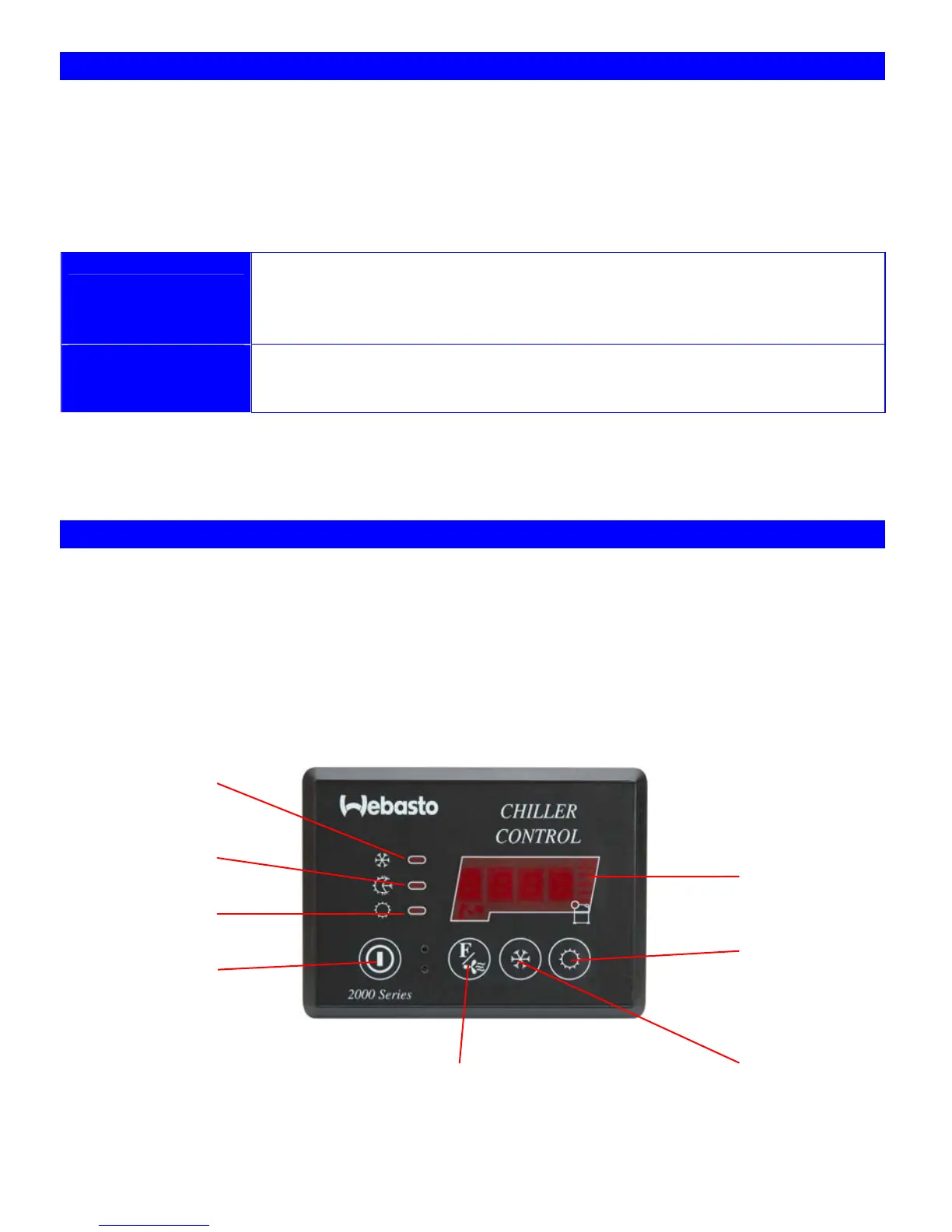

„Chiller Control“ for chiller and directly connected air-handlers
The digital control panel is always factory pre-programmed and the secondary commands are
code-protected.
• If your chilled water system has a heating option, the cabins can be heated until the sea-water
temperature drops below 10°C (50°C).
The function „Automatic with Reverse Cycle” (f3) is pre-set.
• If an external water heater is integrated in your chilled water system, you can heat independently
from the sea-water temperature (See chapter “External Heater” in the operation manual).
The function „Automatic with External Heater” (f4) is pre-set.
Heat Cycle
Mode
Manual Blower
Operation
Cool Cycle
Mode
Read-Out
(0)
Higher
Values
(Sun)
Lower
Values
(Snow flake)
Function/Blower Speed
(
F
)
On/Off
