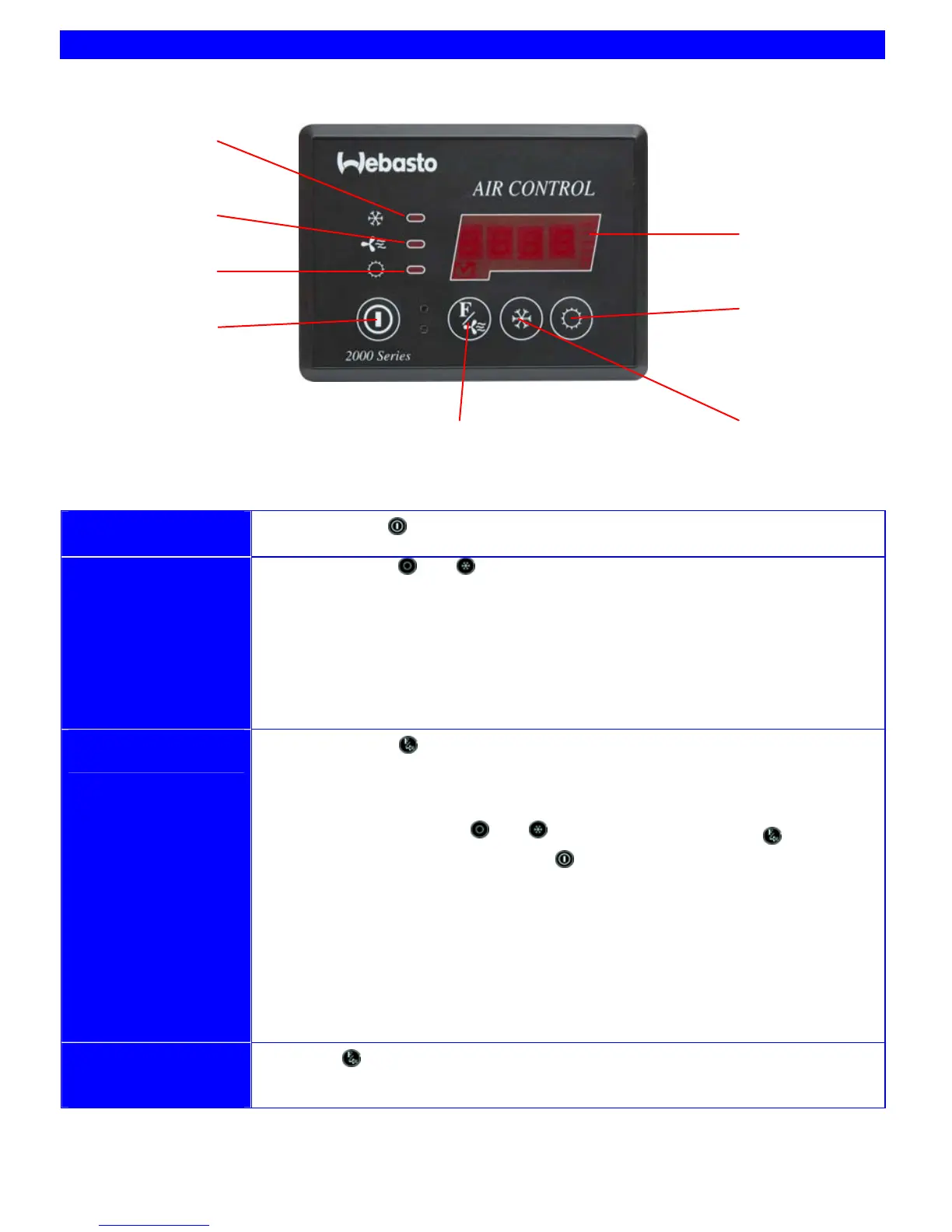

„Air Control” for indirectly connected air handlers
The digital control panel is always factory pre-programmed and the secondary commands are
code-protected.
Starting
Press once the
button. On is displayed and after appr. 20 sec. the
current room temperature, e.g. 28.5 (°C) (83°F) is shown.
Setting the
Temperature
With the buttons
and between 15°C (59°F) and 29°C (84°F) while the
room-temperature is displayed.
e.g. room temperature 25° C (77°F)
Set temperature = 20°C (68°F), Cool mode starts.
Set temperature = 29°C (84°F), Heat mode starts.
Attention: Only the mode that is preselected by the Chiller Control
can be started.
Setting Blower
Speed
Press the button
until b is shown to the left and the selected value to the
right, e.g. b 5 (Blower speed 5)
• Value Range (Blower speeds): 1-2-3-4-5 and A
• Factory Setting: A (Automatic Blower Speed)
Program with the buttons
and . Confirm by pressing the button.
Secure your setting by pressing the
button. The display shows memo
and then the room-temperature.
→ In the automatic blower speed mode (b A) the blower start and
operation depends on the temperature. If there is no need for blower
operation, the display shows ba11. It can take some time before the blower
starts.
→ The manual blower speed mode (1 to 5) is indicated by the LED
„Manual blower operation“.
Displaying the
Evaporator
Temperature
Press the
button until E is shown to the left and a numerical value to the
right, e.g. E10.5.
Heat Cycle
Mode
Manual Blower
Operation
Cool Cycle
Mode
Read-Out
(0)
Higher
Values
(Sun)
Lower
Values
(Snow flake)
Function/Blower Speed
To Next Page
