Webasto Thermosysteme Roof-top air-conditioning system CC4E
Page 21 / 32
Mounting the baseplate
a) Remove hood of roof-top unit.
b) Place the baseplate on the roof (sealing frame) and align it. Place spacers under the eight fastening
points and insert the nine M6 bolts (with washers) into the holes (Fig. 4.4).
c) Check that the baseplate has been positioned correctly and screw it tightly into place with the
washers, serrated washers and nuts included in the installation kit (tightening torque 9 Nm).
IMPORTANT
Ensure that moisture can escape between the vehicle roof and the
baseplate. When sealing the sealing frame, care must be taken to ensure
that the drains for condensation and rainwater remain free. Others seals
in addition to those described here using Sikaflex 221 and the Armaflex
sealing frame are therefore not permitted.

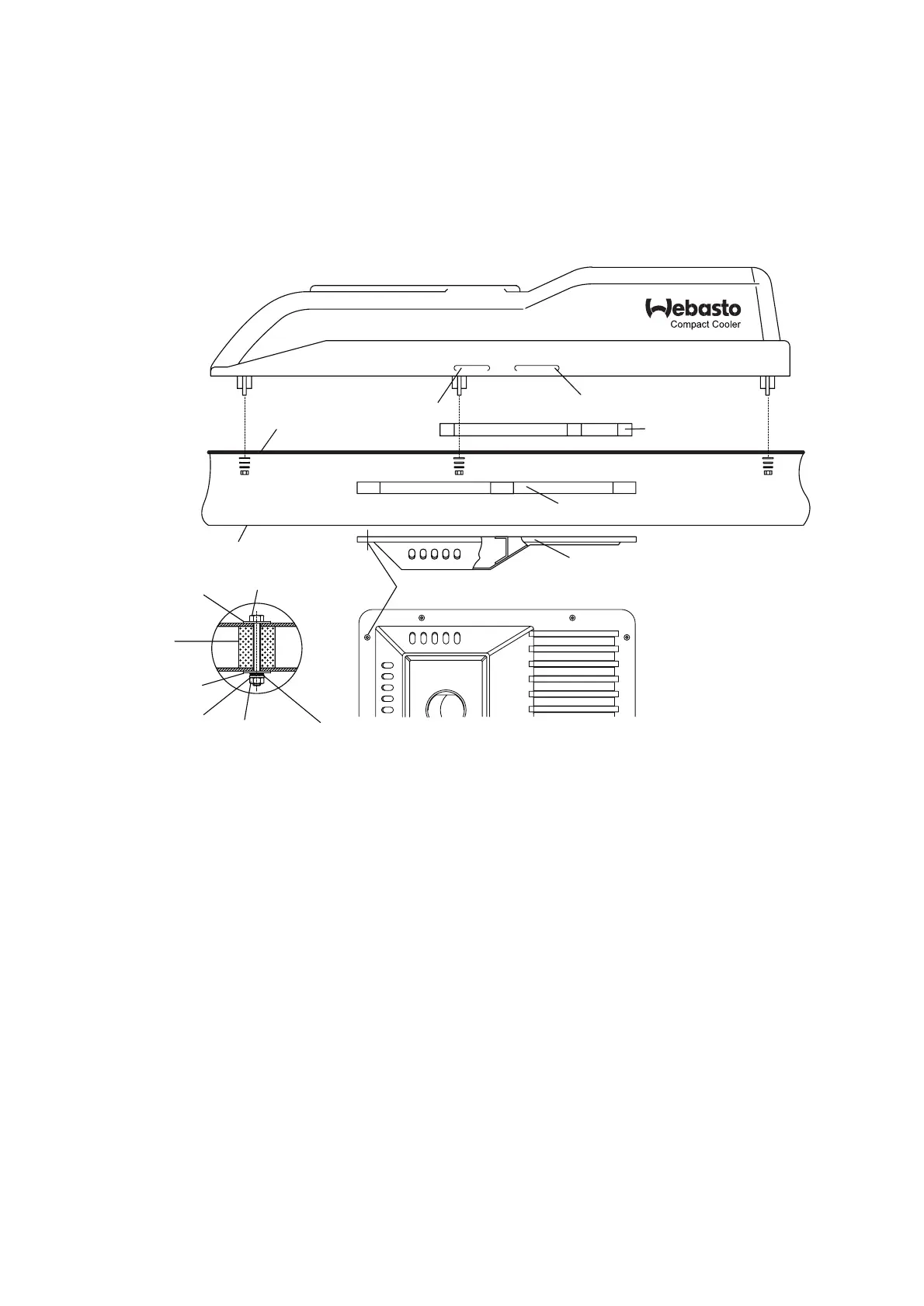

Fig. 4.4
Serrated washer
DIN 6798-A8
Bottom view
Self-tapping screw
Air distribution panel
Air-duct frame
Condensation water Rainwater drain
Vehicle roof
Armaflex
Sealing frame
Hex nut
DIN 985 M6
Washer
DIN 125-B6
Washer
DIN 9021-B6
Washer
DIN 9021-B6
Pan-head screw
DIN 7985 M6x40
Torx 30
Intermediate roof
Spacer
