Webasto CC4E User Manual

Roof-top air-conditioning system CC4E Webasto Thermosysteme
Page 8 / 32

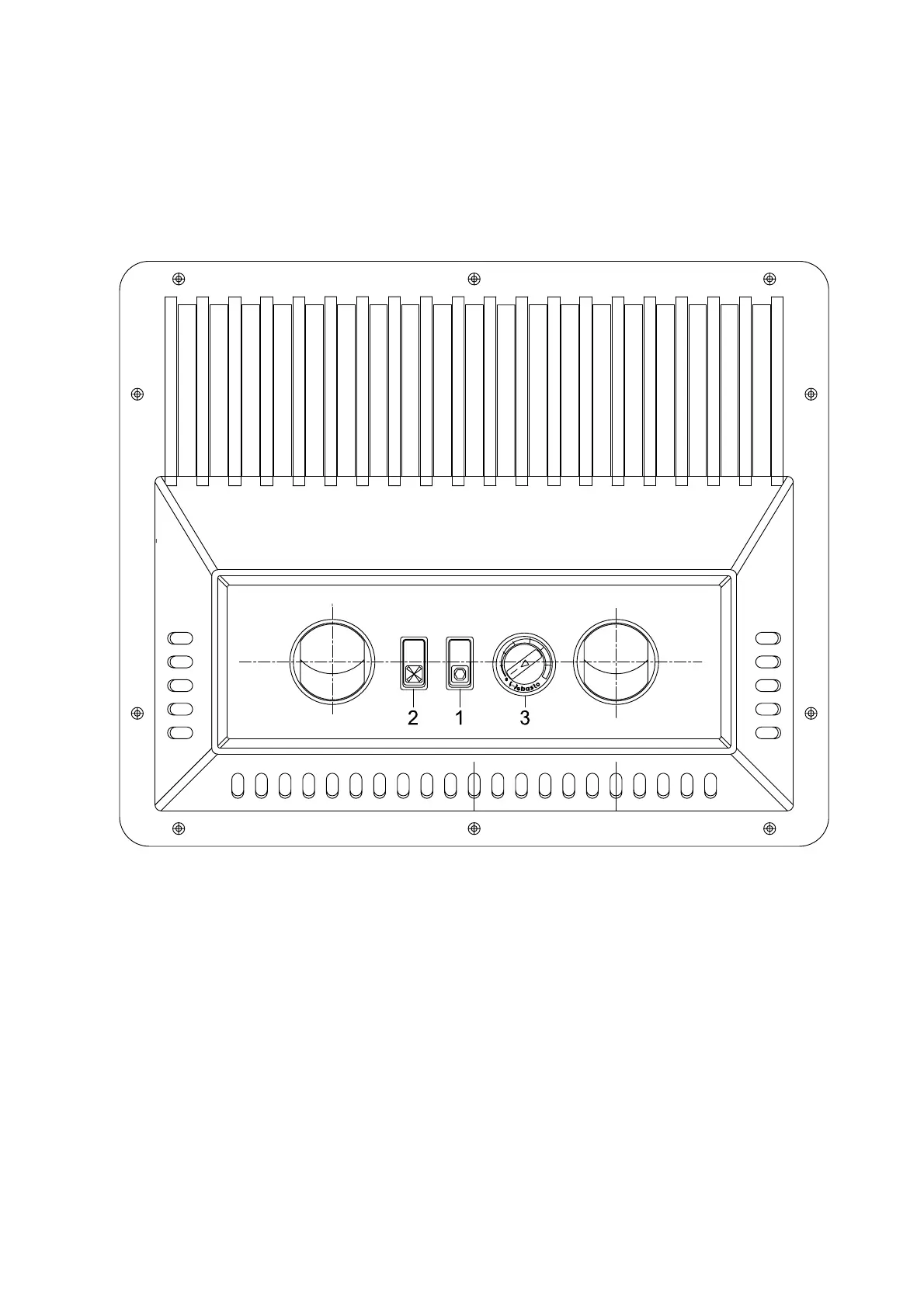

The roof-top air-conditioning system is supplied with air distribution panel (Fig. 2.3) in addition to the roof-
top unit. The following operating elements: ON / OFF rocker switch (1) and fan rocker switch (2) can be
integrated into the air distribution panel.
An electronic room thermostat is additionally integrated into the roof-top unit in the deluxe version. A
setpoint potentiometer (3, Fig. 2.3) is supplied for setting the temperature and can be integrated into the air
distribution panel.
(1) Air-conditioning system ON / OFF
(2) 3-position rocker switch
(3) Setpoint potentiometer (optional)
Fig. 2.3
