3 Operation
The system is operated via the ON / OFF
switch in combination with the 3-position
switch for the required fan power. Both
switches have no indication of their switch
position. The optional temperature
controller permits selection of the required
temperature.
As an option the integral fresh air valve can
be actuated using the OPEN / CLOSE switch.
When it is open the control light in the
switch (Compact Cooler 8) will be lit.
If the roof-top air-conditioning system
Compact Cooler 8 has been installed with
optional heating, the heating will be
switched on via a combined heating / air-
conditioning switch. The two-position ON /
OFF switch for the air-conditioning system
(top right) will then be replaced by the
combined heating / air-conditioning switch
(bottom right).

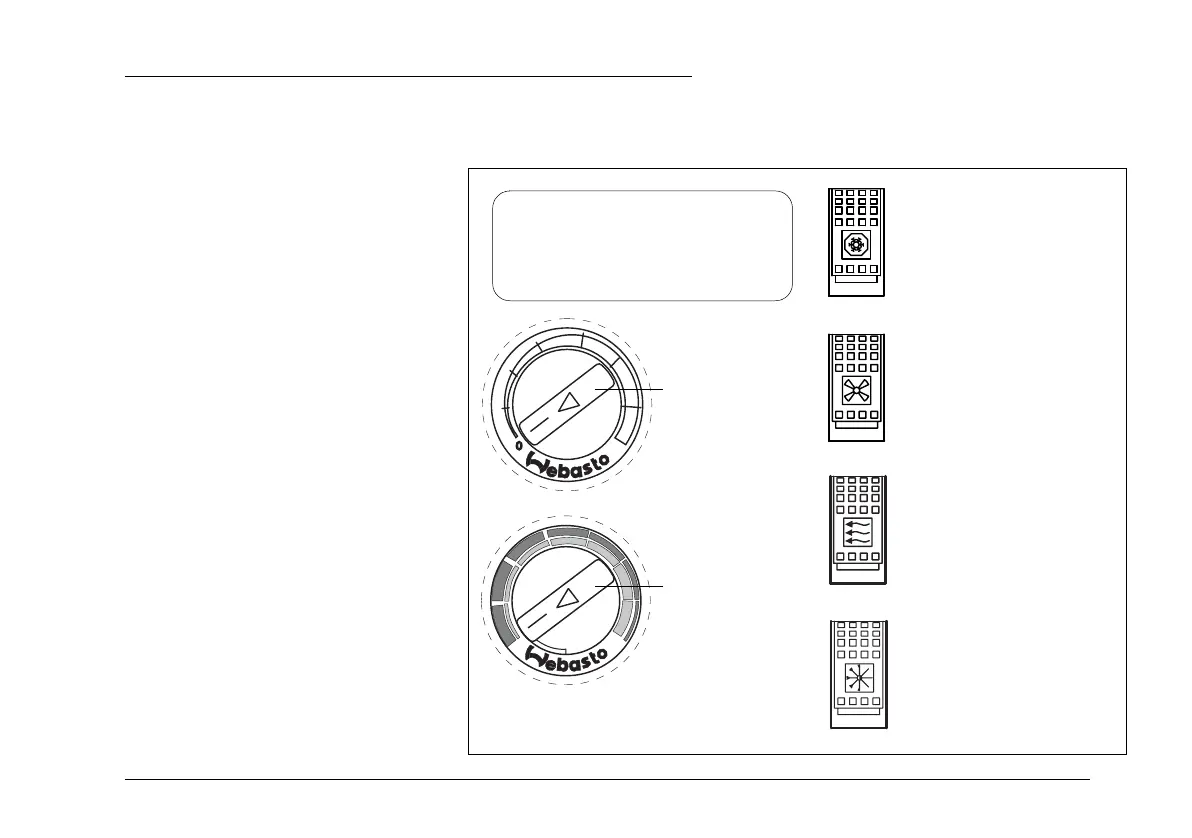

3.1 Operating and control
elements
!
Response to new temperature
controller settings is
delayed.
Temperature
controller (optional)
Rotary control for
setting the cabin
temperature
3 position switch
Fan power
2-position switch
(optional, Compact Cooler 8 only)
Fresh air ventilation flap
OPEN / CLOSED with indicator for
OPEN position
3-position switch
(optional, Compact Cooler 8 only)
Combined heating / air-
conditioning switch
ON / OFF / ON
Temperature
controller is replaced
if the optional
heating is installed
(Compact Cooler 8)
Red = HEATING
Blue = COOLING
Temperature is not controlled
when the switch is set to 0
ON / OFF switch air-
conditioning system
(replaced by heating / air-
conditioning switch (see
below) when optional heating
is installed))
