Cool Top RTE 16 6

Remote controller

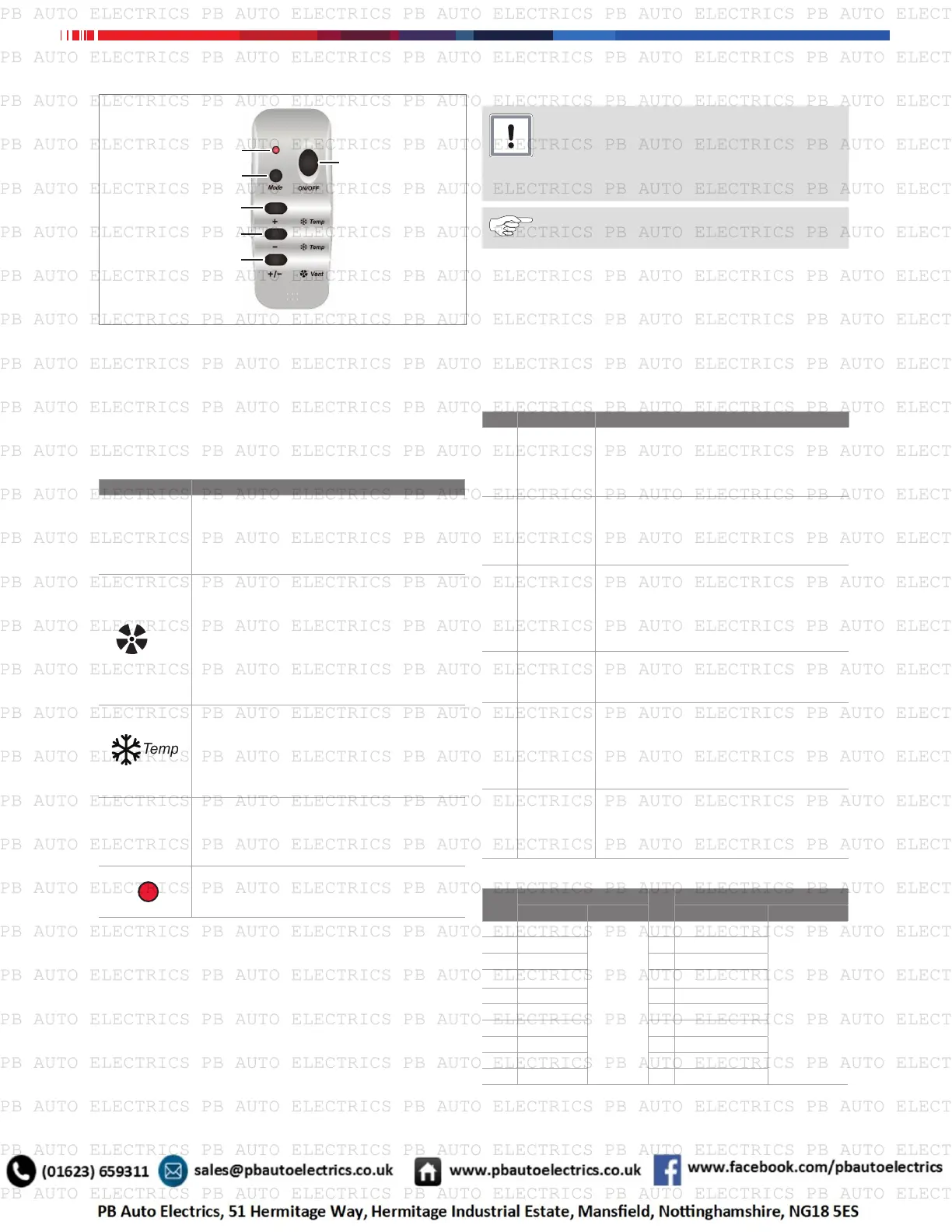

Fig. 02:

Remote controller

Legend Fig. 02:

1. ON-OFF button

2. Fan speed setting button

3. Temperature decrease button

4. Temperature increase button

5. Mode button

6. Transmit indication

Description

ON-OFF

Press the “ON-OFF” button to switch the

Cool Top RTE 16 ON or OFF.

When on, the display on the local control panel

shows the last set temperature.

Vent

With each push on the (+ / -) button you cycle

through the 6 different ventilation levels. The

display on the local control panel shows the se-

lected level.

If you press the ventilation (+ / -) button when

the Cool Top RTE 16 is off, you activate the ven-

tilation only mode.

Each push on one of the + / - buttons increases

or decreases the set temperature with 1°C. The

minimum value is 17°C, the maximum 32°C.

The display on the local control panel shows the

selected temperature.

MODE

Pushing the “MODE” button you cycle through

the modes MIN, AUTO and MAX. The corre-

sponding icon on the local control panel shows

the selected mode.

Each time you press a button on the remote

controller the light comes on to show transmis-

sion activity.

4.3 Changing settings

ATTENTION

Changing the standard settings must be carried out

only by qualified personnel. Any change performed

without the proper skills may cause damage to the

Cool Top RTE 16 and/or to the vehicle.

Changing settings can be done only with the system

off.

X Press simultaneously the VENTILATION (+ / -) and the TEMPERA-

TURE (+) buttons to access the setting menu.

X Scroll between the menus with the VENTILATION (+ / -) buttons.

X Choose the desired values with the TEMPERATURE (+ / -) but-

tons.

–

The values will be saved after a few moments without touch-

ing anything else.

X Exit from the menu by not touching any button.

Settings menu:

Item Description

P0 Timer

(MIN mode)

In MIN mode, the systems default setting is

6 hours of continuous operation. The default

value can be changed in this menu. The

choice range is between 1 and 99 hours.

P1 Timer

(AUTO

mode)

In AUTO mode, the system’s default setting

is 4 hours of continuous operation. The de-

fault value can be changed in this menu. The

choice range is between 1 and 99 hours.

P2 Timer

(MAX mode)

In MAX mode, the system operates at its

max power for the preset time in minutes.

The choice range is between 1 and 99 min-

utes. The system switches to the AUTO

mode.

A3 Celsius and

Fahrenheit

degrees

The systems default setting is Centigrade de-

grees. This menu allows you to change the

parameter to Fahrenheit degrees.

A4 Offset This refers to the temperature difference de-

tected by the probe and the temperature

shown on the display. This menu allows you

to change this value from -9°C to +9°C

with 1°C increments.

A5 Battery sav-

er value

The default setting is 21.5VDC (Cut-out)

and 24VDC (Cut-in). This menu allows to

change these values based on the following

table.

A5 settings:

24VDC

Cut-out Cut-in Cut-out Cut-in

0 20

24,5

10 20

24 (default)

1 20,3 11 20,3

2 20,6 12 20,6

3 20,9 13 20,9

4 21,2 14 21,2

5 21,5 15 21,5 (default)

6 21,8 16 21,8

7 22,1 17 22,1

8 22,4 18 22,4

9 22,7 19 22,7
