WebbPhones are CSA B44-07 compliant. They can be supplied with the LA option to make them CSA
B44-10 and CSA B44-13 compliant for Low Rise applications. For High Rise applications, the CSA
B44-10 and CSA-B44-13 compliance is handled by the LS-250 Rescue station.
The WebbPhone is fully programmed to specific site, equipment and customer requirements.
NOTES:
- A maximum of 6 WebbPhones may be connected to a single phone line.
- A touch-tone analog telephone line is required.
- WebbPhones contain a rechargeable Li-Ion backup battery. With normal usage, battery life
generally averages about 2 years.
- While being weather resistant, the WebbPhone is not waterproof. If mounted outside, adequate
protection to prevent exposure to the rain is required.

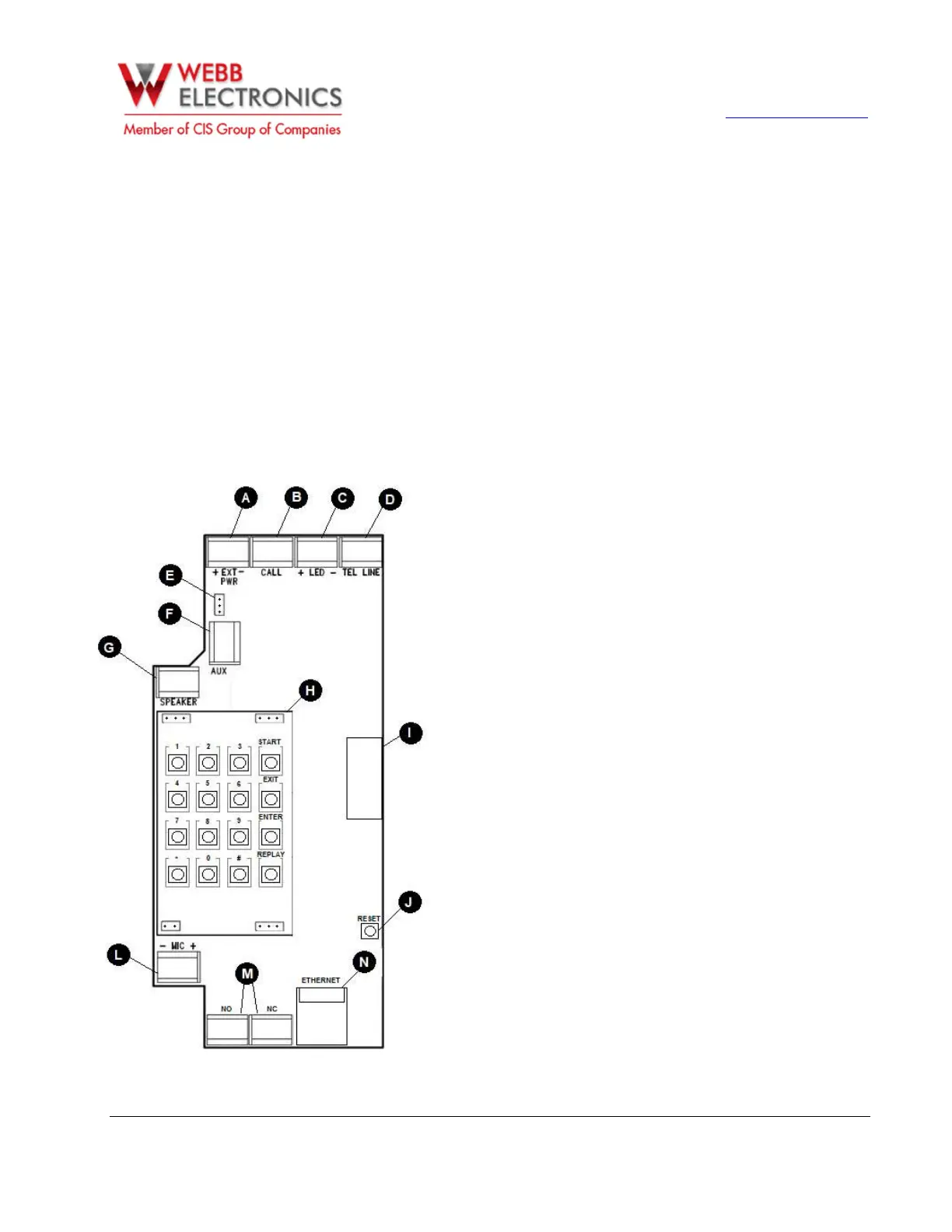

2 MWP-302 LAYOUT
A - External power terminal block
B - Call Button terminal block
C - LED terminal block
D - Telephone line input terminal block
E - Backup battery
F - Auxiliary Speaker input terminal block
G - Speaker Output
H - Detachable keyboard
I - Multimedia Module connector
J - Reset Button (Software reboot)
L - Microphone Input
M - NC / NO Dry contact
N - Network Connector (RJ-45)
To Next Page
