Webb WEBC33 - ASSEMBLY; FITTING GUARD;SHIELD; FITTING THE HARNESS; FITTING NYLON LINE CUTTING HEAD


ASSEMBLY
Removethemachineandcontentsfromthecarton.Besurethecartonisemptybeforediscarding.
Ifyourequireanyassistancewithregardstothecontentsofthelawnmowercontactus:
Tel:01793333212orEmail:customerservice@webbgardenpower.co.uk
Mon–Fri8.00am–5.30pm(excl.BankHolidays)


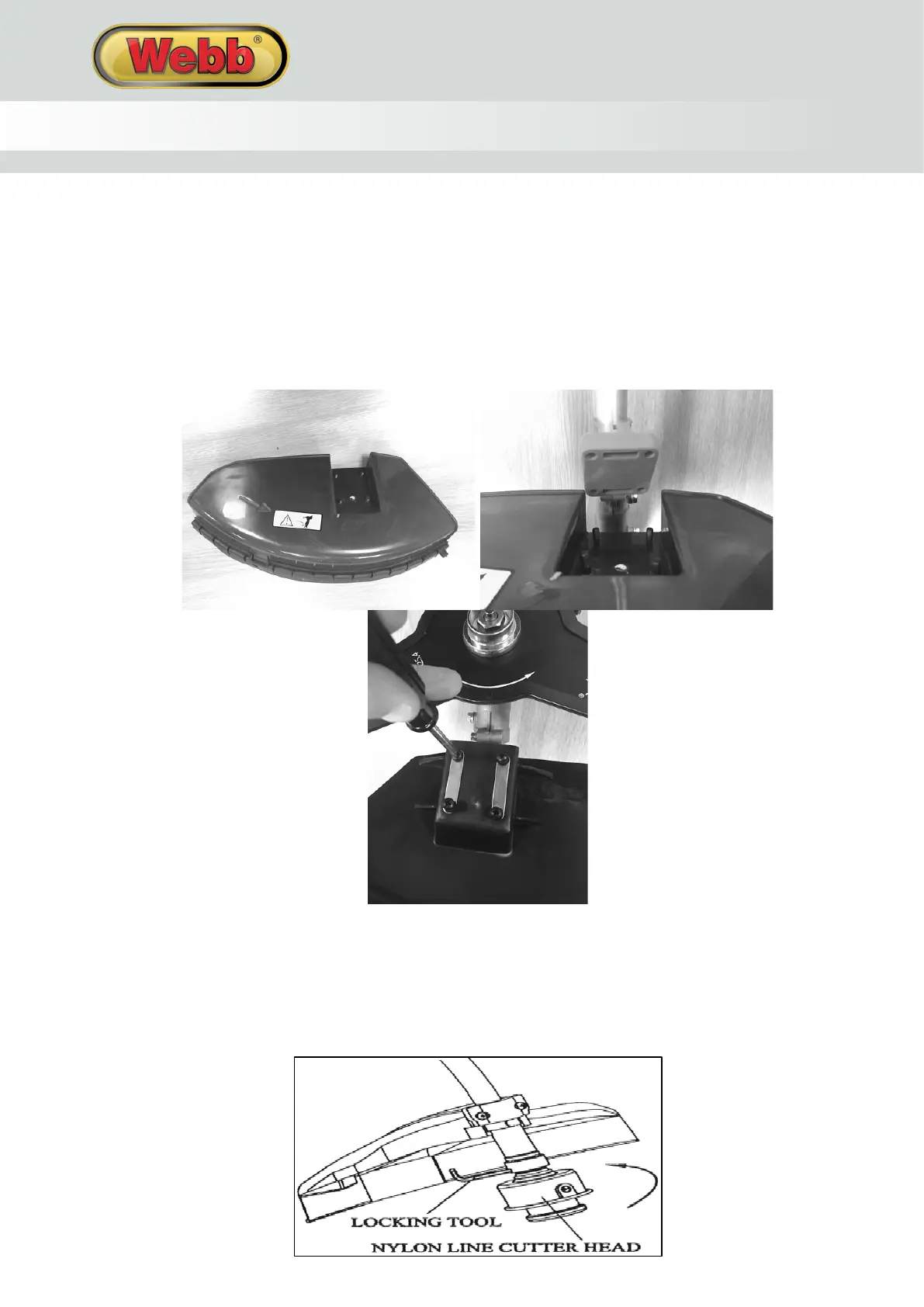

FITTINGGUARD/SHIELD
1. Installthesafetycoverontotheshaftwiththesafetycoverbracket.
2. Alignthefourscrewsofthecoverwiththesafetycoverbracket
3. Tightenthescrewsaftersettingthesafetycoverbracketattheappropriateposition.
 


FITTINGTHEHARNESS
1. Placetheclaspoftheharness,throughtheHarnessEyeletlocatedonthedriveshaft
2. AdjusttheHarness,ensuringitiscomfortable,buttightenoughtoallowyoutooperateappropriately.

FITTINGNYLONLINECUTTINGHEAD
1. AlignholeinadapterplatewithholeintheshaftandinstallAllenKey(lockingtool).
2. Threadcutterheadontoshaft(turningitanti-clockwise)untilitistight.RemoveAllenKey.

INSTRUCTION MANUAL
