Webb WEBV26 - COMPONENTS

Instruction Manual
SPECIFICATIONS
Model
WEBV26
Product Number
193867003
Engine (cc)
26
Idle Speed (r/min)
3000+200
Fuel Tank Capacity (Litre)
0.5
Fuel Ratio (Unleaded Petrol:2 Stroke
Synthetic or Semi Synthetic Oil)
40:1
Weight (kgs)
N.W 4.8 - G.W 7.05
The manufacturer reserves the right to change the product specification and livery according to continued
product improvements.
COMPONENTS
1. Blow Pipe A
2. Blow Pipe B
3. Collection Bag
4. Suction Pipe A
5. Suction Pipe B
6. Discharge Pipe
7. Fan Cover
8. On/Off Switch
9. Throttle Trigger
10. Air Filter Cover
11. Recoil Starter
12. Choke Lever
13. Fuel Tank Cap
14. Spark Plug Cap
1
2
3
7
4
6
8
9
10
11
12
13
14
5
ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: 01793 333212
Email: customerservice@webblawnmowers.co.uk
Hours: Monday to Friday 8.30am – 5.30pm (excl. Bank Holidays)

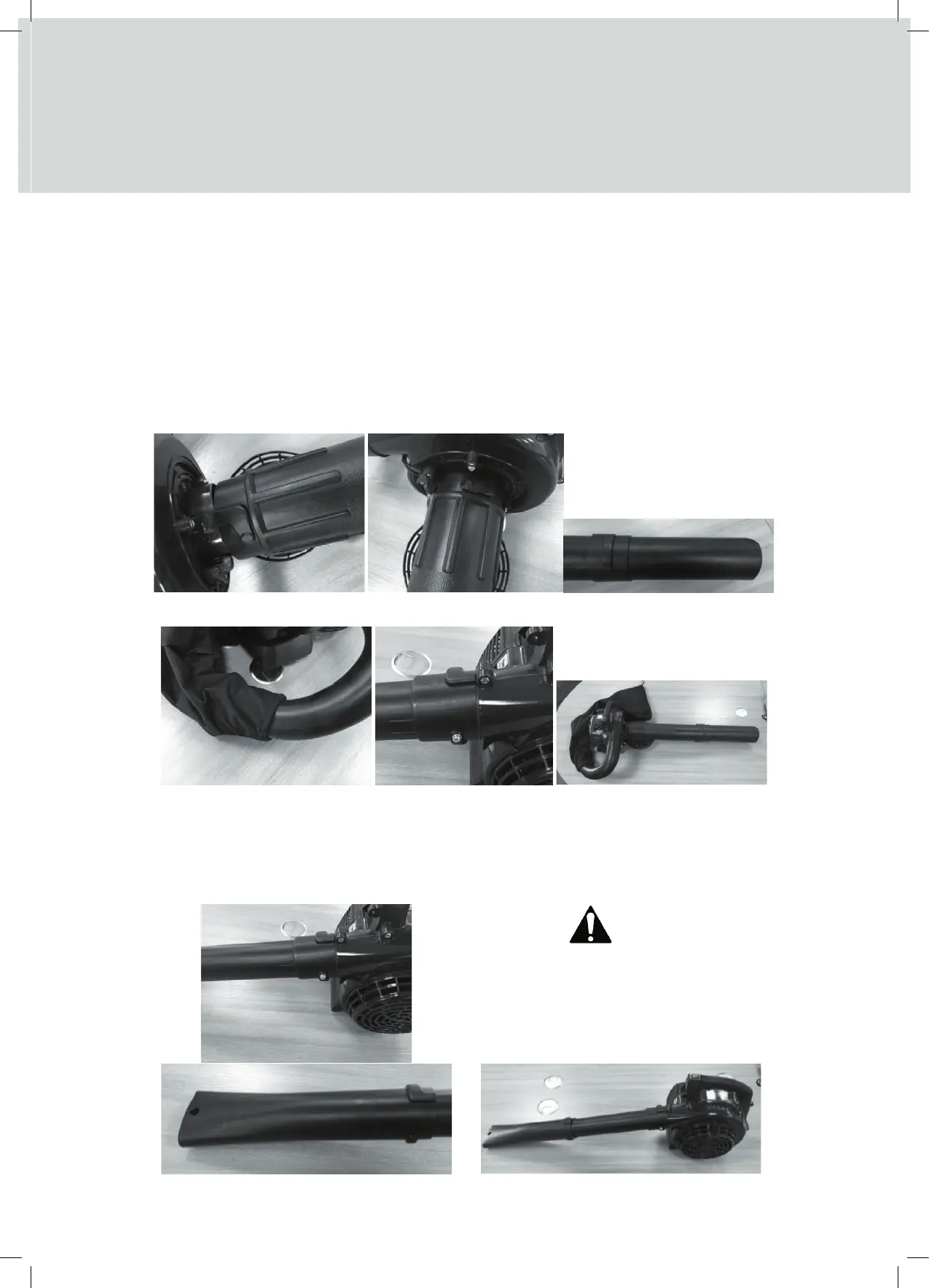

VACUUM ASSEMBLY
1. Open the fan cover, by loosening the top screw and allowing the fan cover to open.
2. Match Suction Tube A, with the top & bottom locking stubs on the body of the machine.
3. Rotate the tube clockwise to lock into place.
4. Repeat the same actions, attaching Suction Tube B to Suction Tube A.
5. Insert the Discharge Tube into the Collection Bag and secure.
6. Connect the Discharge Tube to the Discharge Outlet of the machine and secure with an M5x10 screw
BLOWER ASSEMBLY
1. Match Blower Tube A, with the locking stubs on the body of the machine.
2. Rotate the tube clockwise to lock into place.
3. Repeat the same action attaching Blower Tube B to Blower Tube A.
4. Secure Blower Tube A to the body of the machine, using M5x10 screw.
WARNING
EXCESSIVE VIBRATION OF THE SHREDDING FAN
INDICATES IT HAS BEEN DAMAGED. CONSULT
YOUR LOCAL APPROVED DEALER FOR ASSISTANCE
