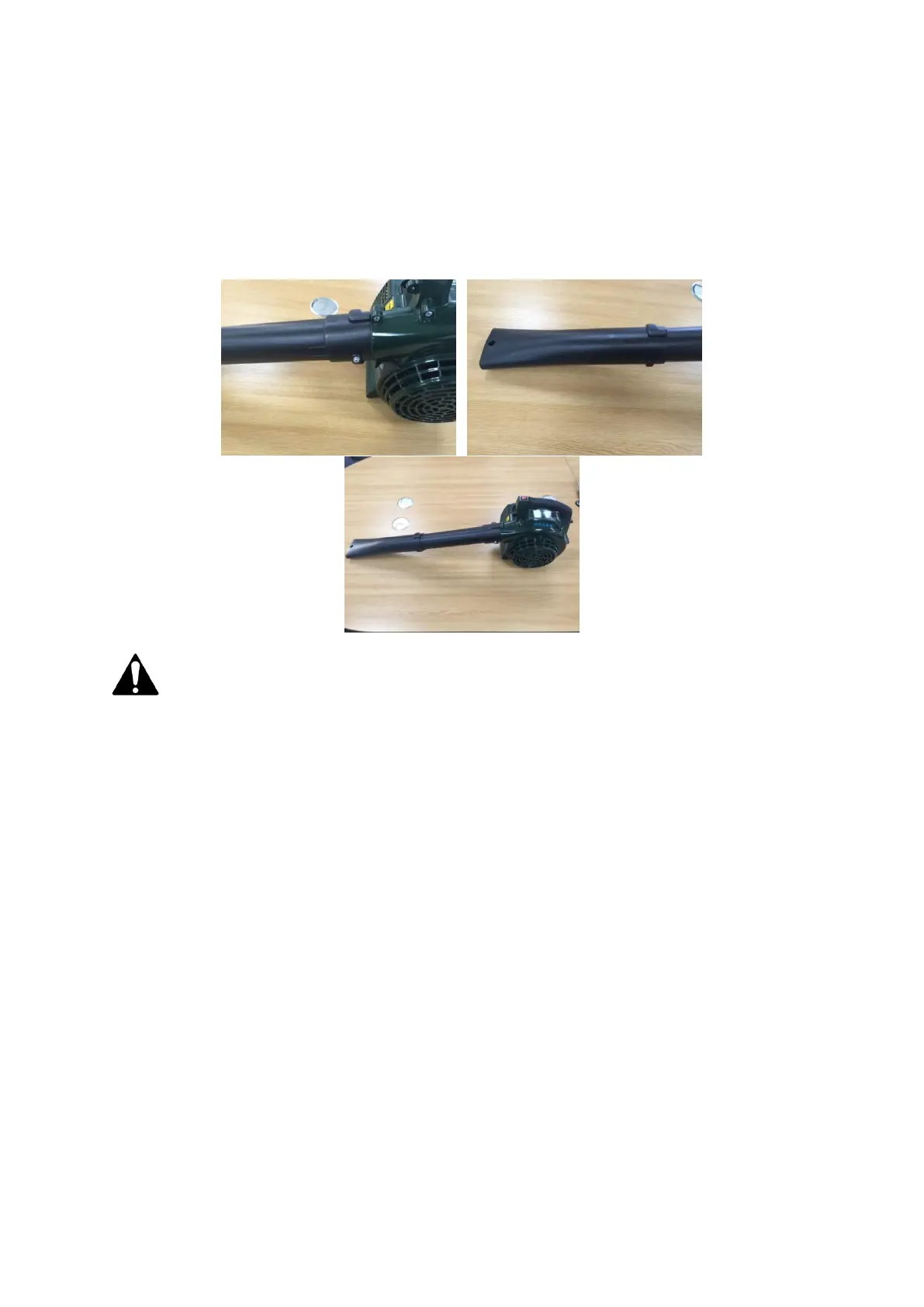

BLOWER ASSEMBLY
1. Match Blower Tube A, with the locking stubs on the body of the machine.
2. Rotate the tube clockwise to lock into place.
3. Repeat the same action attaching Blower Tube B to Blower Tube A.
4. Secure Blower Tube A to the body of the machine, using M5x10 screw.
WARNING
EXCESSIVE VIBRATION OF THE MULCHING FAN INDICATES IT HAS BEEN DAMAGED. CONSULT YOUR LOCAL
APPROVED DEALER FOR ASSISTANCE
