ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: 01793 333212 - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays)
Email: customerservice@webblawnmowers.co.uk

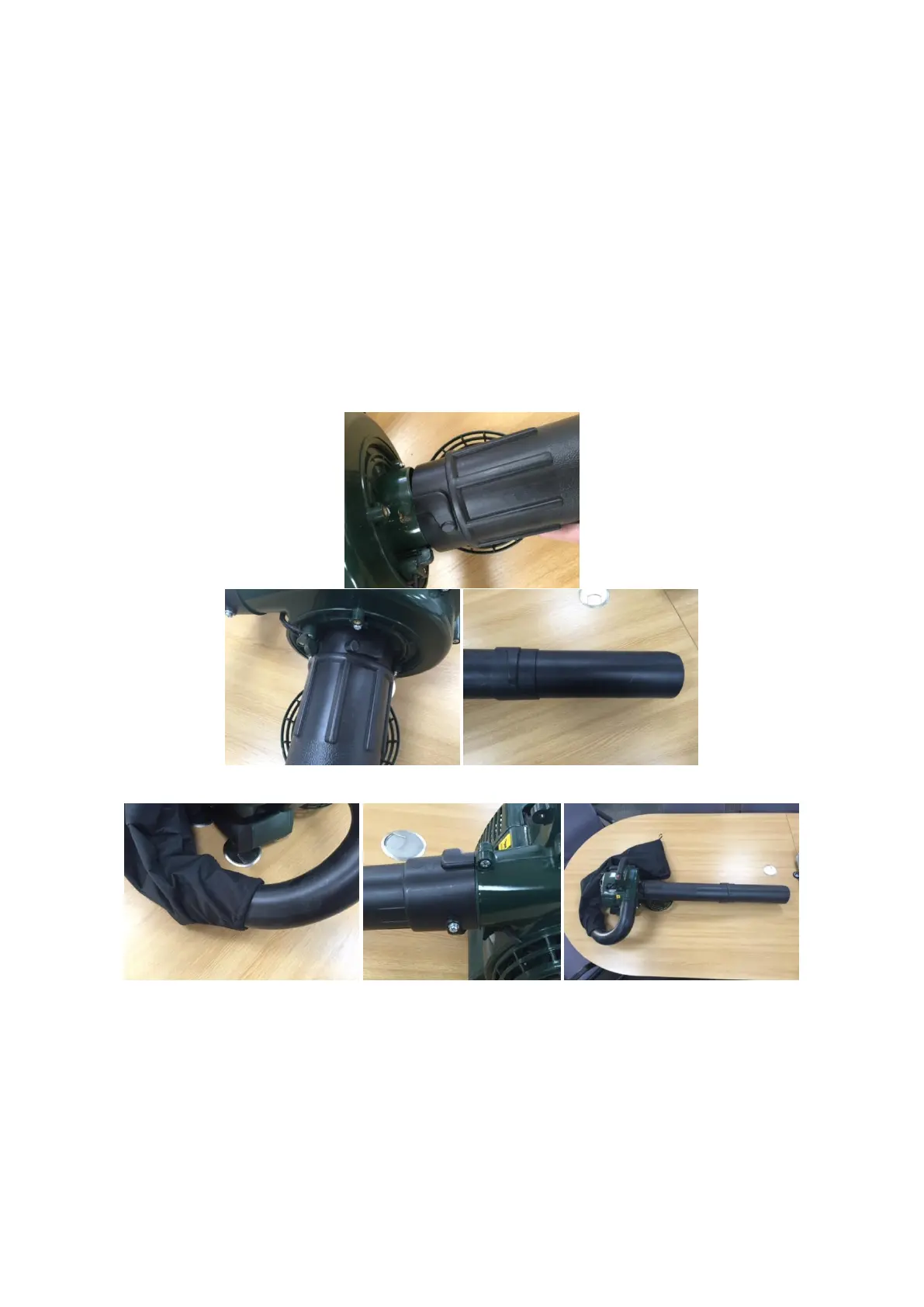

VACUUM ASSEMBLY
1. Open the fan cover, by loosening the top screw and allowing the fan cover to open.
2. Match Suction Tube A, with the top & bottom locking stubs on the body of the machine.
3. Rotate the tube clockwise to lock into place.
4. Repeat the same actions, attaching Suction Tube B to Suction Tube A.
5. Insert the Discharge Tube into the Collection Bag and secure.
6. Connect the Discharge Tube to the Discharge Outlet of the machine and secure with an M5x10 screw
