Webb WEER36 - Page 24

PARTS LIST - WEER36 1938123002
Item
No.
Webb Part No.
Webb Description
Qty
Item
No.
Webb Part No.
Webb Description
Qty
1
WE125-4080063
Switch Box Assembly
1
37
WE125-103050259
Rear Axle
1
2
WE125-103080444
Top Handle (With Foam)
1
38
WE124-301070916
Grass Flap
1
3
WE125-0301062831
Switch Box Small Cap
1
39
WE125-301070924
Rear Wheel
2
4
WE125-103990876
OPC Lever
1
40
WE125-104010258
Washer
7
5
WE125-301070717
Left Permanent Seat
1
41
WE125-104050024
Split Washer
4
6
WE125-301062827
Left Clamp
1
42
WE125-301070923
Rear Wheel Trim
2
7
WE125-104040082
M4x8 Bolt
3
43
WE125-301062852
Height Adjuster Handle
1
8
WE125-301070716
Left Fix Cover
1
44
WE125-103990880
Height Adjuster Lever
1
9
WE125-104030136
ST4.2X15BT Screw
23
45
WE125-104030203
M4x8 Screw
2
10
WE125-0301070806
Cable Clip
2
46
WE125-103020147
Collector Support
1
11
WE125-301070899
Quick Release Handle
4
47
WE125-301062851
Pin Shaft (LMA36)
2
12
WE125-103990795
Spring Pin
4
48
WE125-103990799
Back Connecting Rod
1
13
WE125-104040202
M8×73 bolt
2
49
WE125-103990811
Split Pin
3
14
WE125-301070779
Quick Release Support
2
50
WE124-103990797
Press Plate
6
15
WE125-301070780
Quick Release Washer
2
51
WE125-301070837
Axle Cover
1
16
WE125-301070781
Triangle Knob
2
52
WE125-104030135
ST4.2*12 Screw
4
Hex Nut
2
53
WE125-103060289-1
Tension Spring
1
17
WE125-103020159
Lower Handle
1
54
WE125-103990750
Pin
1
18
WE124-16
Cable Winder
2
55
WE125-103990798
Front Connecting Rod
1
19
WE124-301070910
Motor Cover
1
56
WE125-301062854
Adjusting Bracket
1
20
WE124-301070911
Air Window Cover
1
57
WE125-301062853
Long Pin Shaft (LMA36)
1
21
WE124-301070396F
Motor Cover Carry Handle
1
58
WE125-103050261
Adjusting Bracket Shaft
1
22
WE125-301070920
Upper Cover
1
59
WE125-103060285
Tosional Spring
1
23
WE125-04070249
Motor Assembly
1
60
WE125-104010257
Washer
7
24
WE125-104030423
ST4.2x18 Screw
7
61
WE125-301070794
Blade Support Plate
1
25
WE125-104030300
M5×12 Screw
2
62
WE125-103030127
Blade
1
26
WE125-103990881
Height Adjuster Back Plate
1
63
WE124-104040205
Blade Flange Bolt
1
27
WE125-105020068
Gland
1
64
WE125-103050274
Front Axle
1
28
WE125-104020017
Locknut
2
65
WE125-301062850
Front Wheel
2
29
WE124-103050242
Shield Bearing
1
66
WE125-301062849
Front Wheel Trim
2
30
WE125-104020077
Hex Nut
2
67
WE124-301070580P
Collector Carry Handle
1
31
WE125-301070921
Upper Deck
1
68
WE124-301062859
Full Indicator Flap
1
32
WE125-301070902
Lower Handle Adjuster
2
69
WE124-301070917
Collector Top
1
33
WE125-104040215
Adjusting Bolt
2
70
WE125-105011067
Lower Collector
1
34
WE124-104050028
Split Washer
2
71
WE125-301990135
Pressing Line Plate
1
35
WE124-103050260
Grass Flap Axle
1
72
WE125-301070919
Collector Right Plug
1
36
WE124-103060300
Torsional Spring
1
73
WE125-301070922
Collector Left Plug
1
NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we
recommend you contact our Spares Team on 01793 333212 for expert advice.

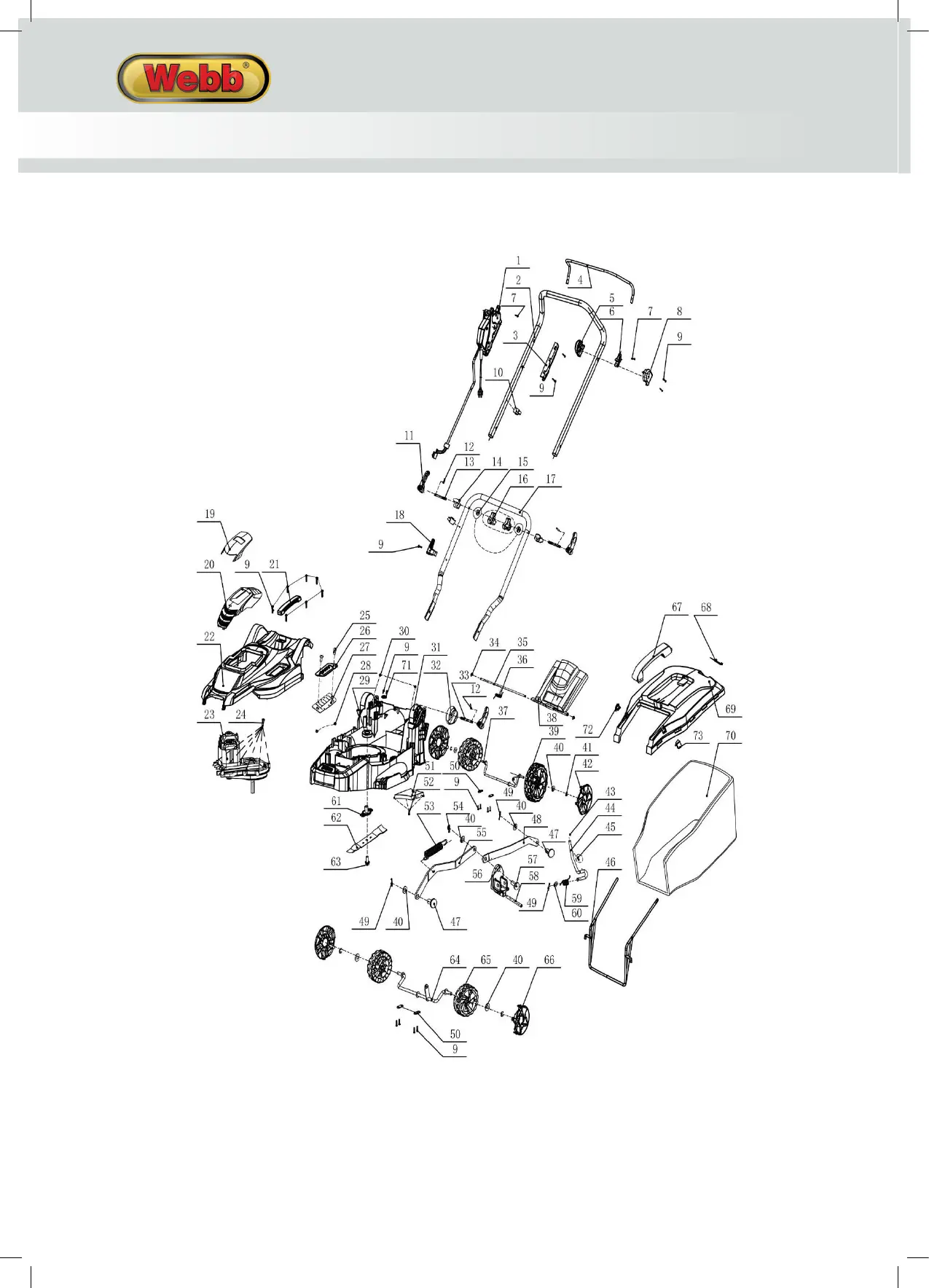

PARTS DIAGRAM - WEER36 1938123002
NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend
you contact our Spares Team on 01793 333212 for expert advice.
